Price: $4,998.70
Item #TDE-60060US
Write a review!
Description

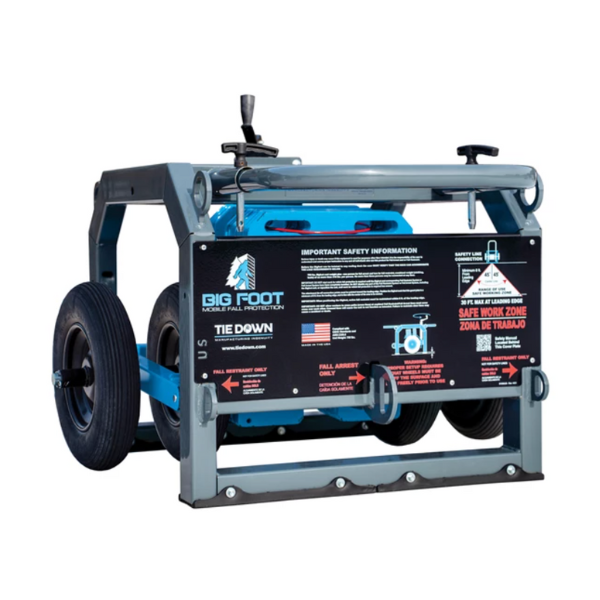

The Tie Down BigFoot 60060US is a non-penetrating mobile fall protection system designed to support one user under fall arrest and two under restraint simultaneously. It weighs 750 lb (U.S. model) and is engineered for use on concrete, TPO, and EPDM roof substrates without membrane penetration. It features hoist rings, a jacking mechanism, wheels, and printed operating instructions.
Key Features
-
Non-penetrating mobile fall protection system
-
Supports 3 users: 1 in fall arrest + 2 in fall restraint
-
Jacking mechanism for mobility
-
Four hoist rings for lifting and rigging
-
Compliant with OSHA 1926.502 and ANSI/ASSE Z359.6-2009 (D)
Specifications
- SKU: 60060US
-
Product name: BigFoot Non-Penetrating Mobile Fall Protection System
-
Number of users supported: 3
-
Fall arrest users: 1
-
Fall restraint users: 2
-
Color: Yellow / Black
-
Compliance / standards: OSHA 1926.502, ANSI/ASSE Z359.6-2009 (D), OSHA 1910.140
-
Weight (gross): 750 lb
-
Weight without ballasts: 250 lb (device alone)
-
Dimensions: Height 40 in, Length 40 in, Width 48 in
-
Ballast: 20 ballast weights, each 15 in × 18 in × 0.375 in, 25 lb each
-
Tires: four flat-free tires, size 6 in × 15.5 in (4.80/4.00-8)
-
Axle hub: standard
-
Jack feature: included to raise wheels off surface
-
Hoist rings: 4
-
Surface compatibility: concrete, TPO, EPDM
-
Warranty: 1-Year Limited
-
Documents / model ID: Part ID 60060US
-
Design / PDF reference: BigFoot Fall Protection spec sheet (E1776)
How To
- Position the BigFoot on a clean, firm surface suitable for supporting the load.
-
Insert all 20 ballast weights into the ballast tray around the unit.
-

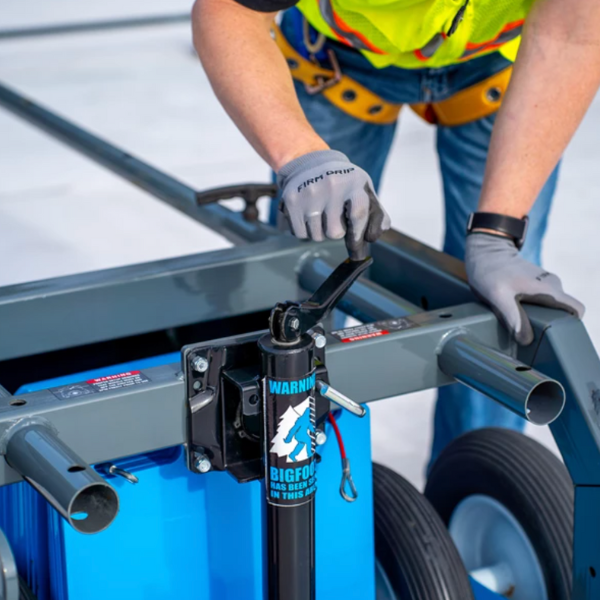

Use the jacking feature to lift the wheels off the surface so they spin freely before final placement.
-
Engage the red safety cable through the ballast stack and lock it in place.
-
Connect personal fall arrest equipment only to the designated D-ring for arrest; connect restraint equipment only to the designated restraint points.
-
Use hoist rings for lifting or relocating the unit (not for fall protection).
-
Reposition or relocate as required, following safe practices and ensuring wheel clearance.
-
Inspect the unit and ballast system before each use for wear, cracks, or damage.
FAQs
Q: What type of surfaces is BigFoot designed for?
A: It is intended for use on concrete, TPO, and EPDM surfaces.
Q: How many ballast weights does BigFoot require?
A: 20 ballast weights, each 25 lb.
Q: What is the gross weight of the 60060US unit?
A: 750 lb (with all ballasts installed).
Q: What safety standards does the BigFoot meet?
A: It meets OSHA 1926.502 and ANSI/ASSE Z359.6-2009 (D).
Q: Can I tie off my fall protection device to a hoist ring?
A: No. Only use the designated fall arrest D-ring; hoist rings are for rigging and relocation only.
