Price: $994.95
Item #TDE-72819
Write a review!
Description

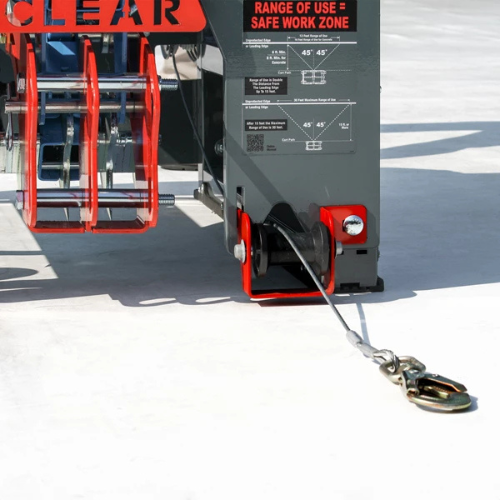

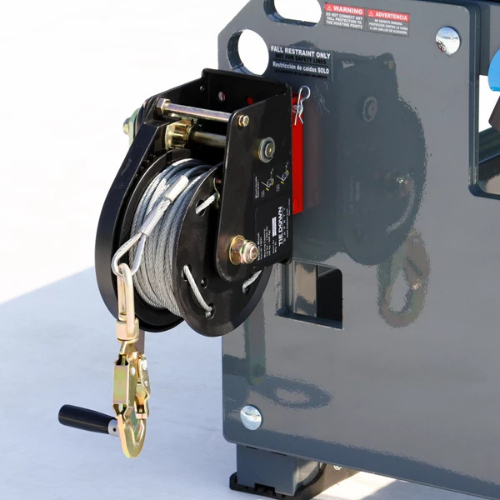

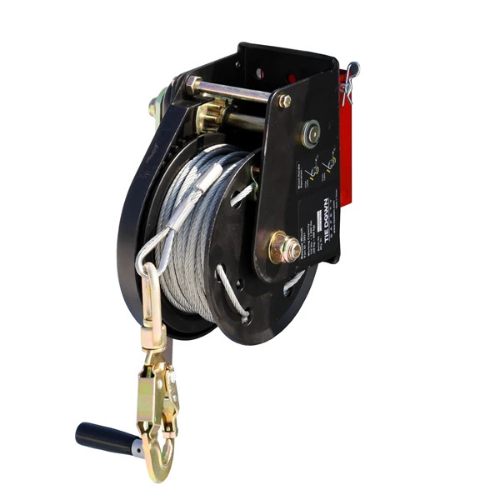

The Tie Down 72819 PX3 Rescue Winch System adds a controlled manual rescue capability to the PX3 mobile fall protection unit, enabling precise lifting or lowering of a fallen worker. It comes equipped with 100 ft of galvanized lifeline and integrates seamlessly with the PX3 system. This accessory is engineered for safe, dependable rescue operation in fall protection scenarios.
Key Features
-
Manual winch for safe, controlled rescue of fallen workers
-
100 ft galvanized lifeline included
-
Designed to mount directly to PX3 mobile fall protection system
-
Enables both lifting and lowering during rescue operations
-
Light and compact design suitable for jobsite use
Specifications
- SKU: 72819
-
Product name: PX3 Rescue Winch System
-
Winch type: manual crank
-
Lifeline length: 100 ft (galvanized)
-
Weight: 10.21 lb
-
Dimensions: 18.00 in height × 18.00 in length × 10.00 in width
-
Color / finish: black housing
-
Compatibility: designed for Tie Down PX3 mobile fall protection cart
-
Compliance: OSHA 1926.502 (accessory for fall protection)
-
Warranty: 1 Year Limited
How To
- Attach the rescue winch bracket to the PX3 mobile fall protection system in the designated mounting area.
-
Secure all hardware per manufacturer torque specifications.
-
Feed and anchor the 100 ft galvanized lifeline through the winch drum as oriented.
-
In the event of a fall, engage the manual crank to lift or lower the worker safely.
-
Monitor and control the lifeline movement carefully, ensuring smooth operation.
-
After rescue, rewind or reposition the lifeline onto the drum and inspect for damage.
FAQs
Q: What is the purpose of the PX3 Rescue Winch System?
A: It provides a manual winch with lifeline to safely lift or lower a fallen worker when attached to a PX3 cart.
Q: How much lifeline comes with the 72819 unit?
A: It includes 100 ft of galvanized lifeline.
Q: What is the weight of the rescue winch system?
A: The system weighs approximately 10.21 lb.
Q: To which system does this winch attach?
A: It is designed exclusively for mounting to the PX3 mobile fall protection system.
Q: What standards or compliance apply to this rescue unit?
A: It is compliant as an accessory under OSHA 1926.502 for fall protection systems.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
