Super Anchor Safety - TB3-6070 Series - Fall Arrester Harness, Tongue Buckle

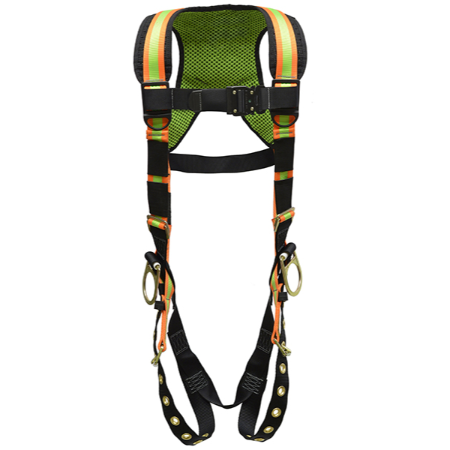

The TB3-6070 series is a full-body tongue buckle harness featuring a 3 D-ring configuration for fall arrest and positioning. Built with breathable mesh padding and hi-viz polyester webbing, it provides long-term comfort without a waist belt. The TB3-6070 supports up to 310 lb in sizes HS through HX, and up to 400 lb in the H2X model, meeting ANSI, OSHA, and CSA standards for fall protection.

Features

• Tongue buckle leg straps for secure fit
• Quick-connect chest buckle
• 3 D-ring configuration: dorsal and two side rings
• Breathable mesh padded frame without waist belt
• Hi-viz polyester webbing with dual fall indicators

• Device: full-body fall-arrest harness with 3 D-rings (rear dorsal + two hip D-rings for positioning/restraint)
• Series / Model: TB3-6070 Series — Fall Arrester Harness, Tongue-Buckle leg straps
• Intended Use: fall arrest (rear D-ring) and work positioning/restraint (side D-rings) as part of a compliant PFAS
• Materials (Webbing): 1-3/4 in high-tenacity polyester, abrasion/UV resistant
• Materials (Hardware): forged steel D-rings and tongue buckles, zinc-plated for corrosion resistance
• Stitching: high-strength bar-tack with contrasting inspection thread; load paths sewn for ≥5,000 lb system strength
• Web Width: 1.75 in (44 mm) primary straps
• D-Ring Size: approx. 2.0 in inside diameter; smooth radius for snap hooks/carabiners
• Adjustment Points: shoulders, chest, and legs; web-keepers for excess strap management
• Leg Buckles: tongue-buckle style for positive hole engagement and glove-friendly donning
• Chest Buckle: pass-through/mating buckle (typical)
• Dimensions / Fit Range: adjustable to common sizes — chest ~36–54 in; waist ~32–50 in; thigh ~22–36 in (size dependent)
• Weight (Harness Only): ~3.8–5.2 lb depending on size/options
• Maximum User Capacity: 310 lb including tools and equipment (per ANSI Z359.11)
• Minimum Tensile (Webbing): ≥6,000 lb
• Attachment / D-Ring Strength: ≥5,000 lb
• Hardware / Gate Strength: ≥3,600 lb
• Comfort / Features: sub-pelvic strap for arrest loads, lanyard keepers, impact/inspection indicator labels, serialized ID tag
• Operating Temperature: approximately −30 °F to 120 °F (typical jobsite conditions)
• Compliance: OSHA 1910.140 / 1926.502; ANSI Z359.11 (revision current at manufacture)
• Inspection / Retirement: pre-use and periodic competent-person inspections; remove from service after any arrest or if stitching damage, deformation, corrosion, cuts, UV embrittlement, or illegible labels are found

• Choose the correct size harness from HS through H2X.
• Slip arms through the padded shoulder straps and adjust the back pad.
• Fasten the quick-connect chest buckle and adjust for snug fit.
• Insert the tongue buckle leg straps and secure into grommet holes.
• Position the dorsal D-ring and connect your lanyard or SRL before use.
• Inspect webbing, hardware, and fall indicators before each use.

Q: What type of leg straps does the TB3-6070 use?
A: Tongue buckle leg straps for secure adjustment.

Q: How many D-rings are included?
A: Three total — one dorsal and two side positioning rings.

Q: What is the maximum user capacity?
A: 310 lb for HS–HX sizes; 400 lb for size H2X.

Q: What is the webbing strength?
A: 1-3/4 in polyester with 6,000 lb minimum breaking strength.

Q: What safety standards does it meet?
A: ANSI Z359.11-21, OSHA 1926.502, and CSA Z259.10 (Class A/P).
