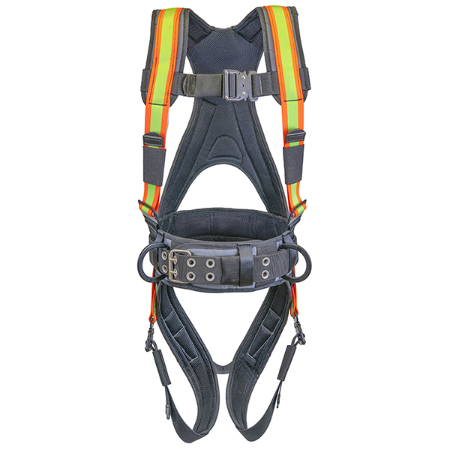

Super Anchor Safety - 6101 Series - Deluxe Harness - Hi Viz No Bags

The 6101 Deluxe harness is a premium full-body safety harness built for comfort and durability in fall protection applications. It features a fully padded frame (Tri-Lam3), integrated 2-inch utility belt with 16 grommets, and quick-connect buckles on chest and legs. The harness supports single-user fall arrest and restraint use, is OSHA/ANSI/CSA compliant, and comes in five sizes — GHS, GHM, GHL, GHLL, and GHX — to match a range of user weights and dimensions.

Features

• Padded frame and waist belt for all-day comfort
• 3 D-rings: one dorsal and two side (hide-away)
• 2" wide industrial utility belt with 16 grommets for tool bags
• Quick-connect chest and leg buckles
• Dual visual fall indicators on shoulder straps

• Device: full-body fall-arrest harness (Deluxe Series) in high-visibility colorway; “No Bags” variant (no storage/tool bags included)
• Series / Model: 6101 Series — Deluxe Harness, Hi-Viz (No Bags)
• Intended Use: fall arrest via rear dorsal D-ring; suitable for restraint when configured in a compliant PFAS
• Material (Webbing): 1-3/4 in high-tenacity polyester, abrasion/UV resistant, high-visibility dye
• Material (Hardware): forged steel dorsal D-ring and buckles, zinc-plated for corrosion resistance
• Stitching: high-strength bar-tack with contrasting inspection thread; load paths sewn for ≥5,000 lb system strength
• Dimensions / Fit Range: adjustable to common sizes — chest ~36–52 in; waist ~32–48 in; thigh ~22–34 in (size dependent)
• Web Width: 1.75 in (44 mm) primary straps
• D-Ring Size: approx. 2.0 in inside diameter; smooth radius for snap hooks/carabiners
• Adjustment Points: shoulders, chest, and legs; web-keepers for excess strap management
• Leg Buckles: tongue-buckle style (glove-friendly, positive hole engagement)
• Chest Buckle: pass-through/mating buckle (typical for the series)
• Weight (Harness Only): ~3.8–5.0 lb depending on size/options
• Minimum Tensile (Webbing): ≥6,000 lb
• Attachment / D-Ring Strength: ≥5,000 lb
• Hardware / Gate Strength: ≥3,600 lb
• Comfort / Features: sub-pelvic support strap, lanyard keepers, impact/inspection indicators, serialized ID/inspection label
• Operating Temperature: approximately −30 °F to 120 °F (typical jobsite conditions)
• Compliance: OSHA 1910.140 / 1926.502; ANSI Z359.11 (revision current at manufacture)
• Inspection / Retirement: pre-use and periodic competent-person inspections; remove from service after any arrest or if stitching damage, deformation, corrosion, cuts, UV embrittlement, or illegible labels are found

• Select the appropriate harness size (GHS through GHX) based on weight and waist belt length.
• Slip the harness on by inserting arms into shoulder straps and positioning the backpad and waistbelt.
• Buckle the quick-connect chest strap and adjust until it lies comfortably across the chest.
• Buckle the chest and leg straps using the quick-connect mechanisms, adjusting each to a snug but comfortable fit.
• Connect lanyard or SRL to the dorsal D-ring, and use side D-rings for work positioning as needed.
• Inspect webbing, buckles, D-rings, indicators, and stitching before each use for signs of damage.

Q: What is the maximum user weight for the 6101 series?
A: Up to 340 lb including tools and equipment.

Q: How many D-rings does the harness have?
A: Three total — one rear (dorsal) and two side D-rings.

Q: What is “Tri-Lam3” padding?
A: A layered comfort system combining closed cell foam, mesh surface, and polyester backing to resist moisture and enhance comfort.

Q: What features does the utility belt include?
A: A 2" wide industrial grade belt with 16 grommets, designed to support tool bags compatible with the All-Pakka system.

Q: Is it compliant with industry standards?
A: Yes — ANSI Z359.11-21, OSHA 1926.502 & 1910.66, and CSA Z259.10 Class A/P.
