Super Anchor Safety - 6067 - 3-D Ring Fall Arrester Harness- Tongue Buckle

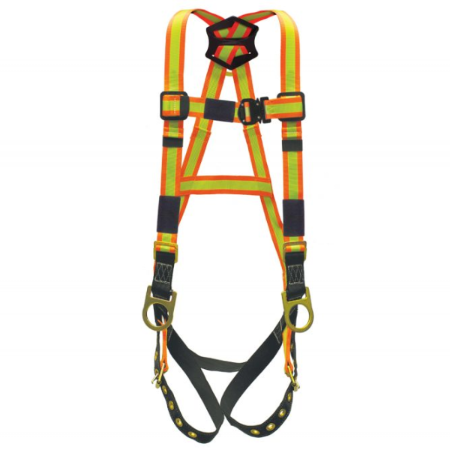

The TB3-6067 is an economical full-body harness designed with tongue buckle leg straps and a 3 D-ring configuration for fall arrest and positioning. It includes hi-viz polyester webbing, a dorsal D-ring, and two side D-rings, with dual fall indicators to ensure safety readiness. Available in HM (medium) and HL (large) sizes, this harness supports users up to 340 lb and complies with ANSI and OSHA standards.

Features

• Lightweight, economical full-body harness
• 3 D-rings: dorsal and two side positioning rings
• Tongue buckle leg straps with grommets
• Quick-connect chest buckle for easy use
• Hi-viz webbing with dual fall indicators

• Device: full-body fall-arrest harness with 3 D-rings (dorsal + 2 hip side D-rings for positioning/restraint)
• Model: 6067 — 3-D Ring Fall Arrester Harness, Tongue-Buckle leg straps
• Intended Use: fall arrest (rear D-ring), work positioning/restraint (side D-rings) as part of a compliant PFAS
• Materials (Webbing): 1-3/4 in high-tenacity polyester, abrasion/UV resistant
• Materials (Hardware): forged steel D-rings and tongue buckles, zinc plated (corrosion resistant)
• Stitching: high-strength bar-tack with contrasting thread; load-bearing sub-assemblies sewn for 5,000 lb minimum system strength
• Adjustment Points: shoulders, chest, and legs; keepers to stow excess webbing
• Leg Buckles: tongue-buckle style (easier donning with gloves; positive hole engagement)
• Chest Buckle: pass-through/mating style (typical)
• D-Ring Sizes: dorsal and hip D-rings approx. 2.0 in inside diameter, smooth radius for snap hooks/carabiners
• Web Width: 1.75 in (44 mm) primary straps
• Dimensions (Fit Range): adjustable to typical torso sizes (chest ~36–52 in; waist ~32–48 in; thigh ~22–34 in)
• Weight (Harness Only): ~4.2–5.4 lb depending on size/options
• Max User Capacity: 310 lb including tools and equipment (per ANSI Z359.11)
• Minimum Tensile (Webbing): ≥6,000 lb; Hardware/Gate Strength: ≥3,600 lb; D-Ring/Attachment Strength: ≥5,000 lb
• Comfort/Features: sub-pelvic strap, lanyard keepers, impact/inspection indicator labels, serial/ID tag
• Finish/Color: high-visibility webbing with printed inspection grids (varies by size batch)
• Operating Temperature: approx. −30 °F to 120 °F (typical jobsite conditions)
• Compliance: OSHA 1910.140 / 1926.502; ANSI Z359.11 (latest revision when manufactured)
• Inspection/Retirement: pre-use and periodic competent-person inspection; remove from service after any arrest or if stitching damage, deformation, corrosion, cuts, UV embrittlement, or illegible labels are found

• Select HM or HL size based on user body dimensions.
• Slip into harness and position shoulder straps and dorsal pad correctly.
• Buckle the quick-connect chest strap and adjust for a secure fit.
• Insert tongue buckle leg straps into grommets and tighten until snug.
• Connect lanyard or SRL to dorsal D-ring; side D-rings may be used for positioning.
• Inspect webbing, hardware, buckles, and fall indicators before each use.

Q: What is the difference between TB3-6067-HM and HL?
A: HM is medium size; HL is large size.

Q: How many D-rings does this harness include?
A: Three — one dorsal and two side positioning rings.

Q: What is the maximum user capacity?
A: Up to 340 lb including tools and equipment.

Q: What type of leg straps does it use?
A: Tongue buckle leg straps with grommet holes.

Q: Which standards does the TB3-6067 meet?
A: ANSI Z359.11-21, OSHA 1926.502, and CSA Z259.10.
