- Features a high-strength 10-3/4 inch stainless steel anchor post with a precision-engineered 11/16 inch connecting eye for secure tie-off
- Designed for permanent installation on wood roof truss members (2 x 4 or larger), providing a long-term anchorage point for maintenance and repairs
- Includes a comprehensive weather-protection package featuring a 10 inch roof flange and a durable post cap with a secure zip-tie closure
- Engineered for versatile installation, allowing the anchor to be mounted to trusses either before or after the roof sheathing has been applied
- Provided with stainless steel nails to ensure a corrosion-resistant and permanent bond to the wood structure in all environmental conditions
- Fully compliant with OSHA 1926.502 and 1910.66 regulations, delivering a minimum static tensile strength of 3,600 lbs
Price: $64.80
Item #FALLTECH-7429SSK
Write a review!
Description

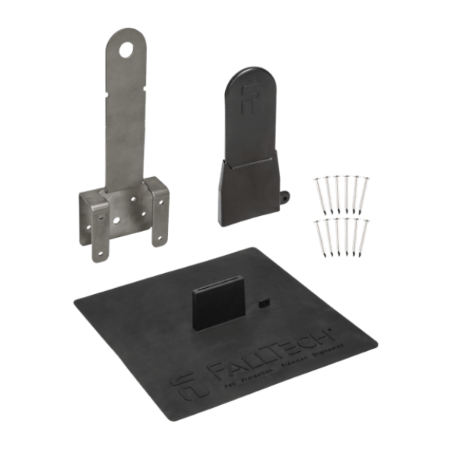

This truss anchor kit is designed for permanent installation on wood roof truss members 2 × 4 or larger. It features a 10-3/4-inch stainless steel post with an 11/16-inch connecting eye, a weather-resistant post cap with zip-tie, and a 10-inch roof flange. The kit includes stainless steel nails for installation and meets OSHA 1926.502 fall-protection anchorage requirements.
Key features:
-
10-3/4″ stainless steel post with 11/16″ connecting eye
-
Weather-resistant post cap with zip-tie and 10″ roof flange
-
Includes stainless steel nails for installation on wood roof trusses
-
Designed for permanent installation on wood roof truss members 2 × 4 or larger
Specifications
- SKU: 7429SSK
-
Anchor post: stainless steel, 10-3/4″ in length
-
Connecting eye diameter: 11/16″
-
Roof flange: 10″ size included in kit
-
Nail type: stainless steel nails included for wood truss installation
-
Static strength (tensile): minimum 3,600 lb
-
User capacity (ANSI): 130 to 310 lb max
-
User capacity (OSHA): 130 to 310 lb max
-
Compliance: OSHA 1926.502 (and 1910.66)
FAQs
Q: Can this anchor kit be installed after the roof sheathing is applied?
A: Yes — the kit is designed to install on roof trusses before or after sheathing is applied.
Q: Is the connecting eye compatible with standard harness attachment hardware?
A: Yes — the 11/16″ connecting eye accommodates standard hardware rated for fall-protection connection.
Q: What substrate is this anchor designed for?
A: It is intended specifically for wood roof truss members sized 2 × 4 or larger.
Q: How should I inspect this anchor after installation and over time?
A: Regularly verify that the stainless steel post is intact and corrosion-free, the connecting eye is not deformed, the roof flange and fasteners are secure, and the anchor’s structural substrate (truss) shows no damage.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
