Choice of 3 Bolt / 10" Poly (Included) or Cast Iron Strainer
Was: $329.35
Price: $329.35Sale: $329.35
Item #305-BCTS89
Write a review!
Description

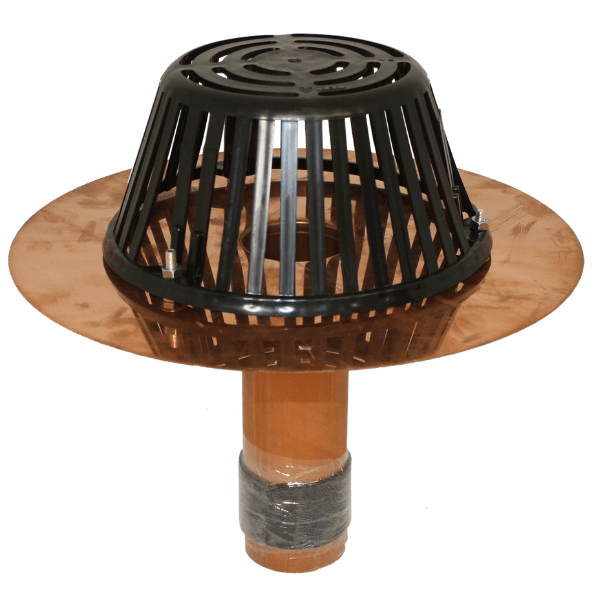

The Marathon BCTS89 Copper-Tite is an 8-inch retrofit roof drain made from heavy copper with a factory-applied expanding anti-backup tape seal. It includes a 10-inch ABS clamping ring and 10-inch polyethylene strainer. Designed for use in reroof or retrofit applications, it offers a watertight solution with minimal disturbance to existing roofing systems. This model features a 9-inch outlet length and large flange for secure installation.
Key Features:
-
8-inch outlet size with retrofit copper body
-
Expanding anti-backup seal (factory-applied tape) to prevent leakage and backflow
-
Large flange option (18-inch) for full coverage
-
Standard 10-inch ABS clamping ring and 10-inch polyethylene strainer included
-
9-inch outlet length for proper insertion into existing piping
Specifications
- Model / Part Number: BCTS89 (Large Flange)
-
Outlet size: 8″
-
Outlet length: 9″
-
Fits existing drain pipe size: 5-7/8″ – 6-1/4″
-
Body: Copper
-
Flange: 18″ large flange (LF)
-
Clamping Ring: 10″ ABS
-
Strainer: 10″ polyethylene
-
Packaging: 1 per carton
How To
- Select the BCTS89 model that matches your existing 8-inch outlet pipe.
-
Clean and prepare the existing drain sleeve and roof membrane areas.
-
Test fit the drain into the existing sleeve before releasing the tape restraint.
-
Remove the restraint and insert the drain so the expanding tape fills the gap around the outlet.
-
Seat the flange flush on the roof surface.
-
Attach the 10-inch ABS clamping ring and install the 10-inch polyethylene strainer.
-
Flash the flange according to the roofing membrane manufacturer’s instructions.
FAQs
Q: What flange size is standard for BCTS89?
A: It is supplied with an 18-inch large flange.
Q: What is the outlet length?
A: The outlet length is 9 inches.
Q: What pipe sizes does this retrofit drain fit into?
A: It fits existing pipe with inside diameters from 5-7/8″ to 6-1/4″.
Q: What materials are used for body, ring, and strainer?
A: Copper body; 10-inch ABS clamping ring; 10-inch polyethylene strainer.
Q: How does the anti-backup seal work?
A: Expanding tape (factory-applied) is released when the drain is inserted, filling the gap between the drain outlet and the existing sleeve to provide a watertight and backflow-resistant seal.
