Choice of 3 Bolt / 10" Poly (Included) or Cast Iron Strainer
Was: $250.75
Price: $250.75Sale: $250.75
Item #305-BCTS69
Write a review!
Overview

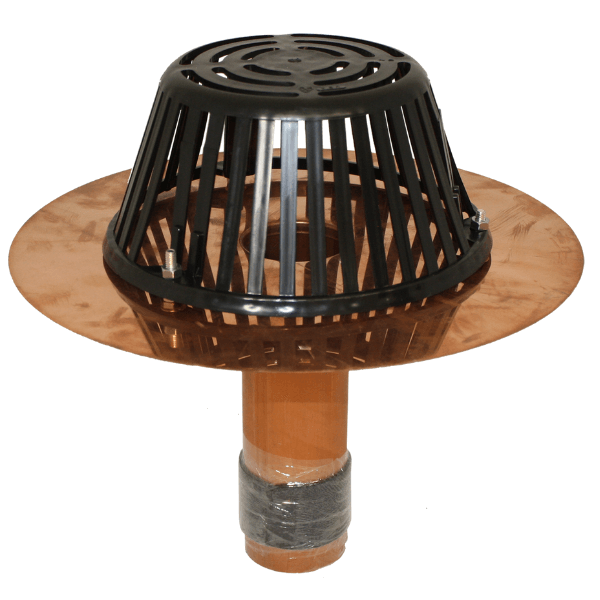

The Marathon BCTS69 Copper-Tite Drain is a 6-inch retrofit roof drain designed with a copper body and factory-applied anti-backup expanding tape seal. It comes standard with a 10-inch ABS clamping ring and 10-inch polyethylene strainer. Built with an 18-inch large flange and a 9-inch outlet length, this drain delivers watertight performance for reroof and retrofit applications without disturbing the existing roof system.
Key Features:
-
6-inch retrofit copper roof drain
-
Factory-applied anti-backup expanding seal prevents water backflow
-
18-inch large flange for secure coverage
-
Includes 10-inch ABS clamping ring and 10-inch polyethylene strainer
-
9-inch outlet length for proper insertion into existing pipe
Specifications
- Model / Part Number: BCTS69 (Large Flange)
-
Outlet size: 6″
-
Fits existing drain pipe size: 5-7/8″ – 6-1/4″
-
Outlet length: 9″
-
Flange size: 18″ large flange
-
Body material: Copper
-
Clamping Ring: 10″ ABS
-
Strainer: 10″ polyethylene
-
Packaging: 1 per carton
How To
- Select the BCTS69 model for 6-inch outlet pipe applications.
-
Clean the existing drain sleeve and surrounding roof membrane.
-
Test fit the drain before releasing the restraint on the expanding tape seal.
-
Remove the restraint and immediately insert the drain so the expanding tape fills the sleeve gap.
-
Position the 18-inch flange flat on the roof surface.
-
Install the 10-inch ABS clamping ring and bolt in the 10-inch polyethylene strainer.
-
Flash the flange per roofing system manufacturer’s guidelines.
FAQs
Q: What flange size does the BCTS69 have?
A: The BCTS69 is supplied with an 18-inch large flange.
Q: What pipe sizes does this drain fit?
A: It fits existing pipes with inside diameters of 5-7/8″ to 6-1/4″.
Q: What is the outlet length of the BCTS69?
A: The outlet length is 9 inches.
Q: What materials are included with this drain?
A: A copper body, 10-inch ABS clamping ring, and 10-inch polyethylene strainer.
Q: How does the anti-backup seal function?
A: The factory-applied expanding tape fills the gap between the drain outlet and the sleeve to create a watertight, back-up resistant seal.
