Choice of 3 Bolt / 10" Poly (Included) or Cast Iron Strainer
Was: $195.00
Price: $195.00Sale: $195.00
Item #305-BCTS49
Write a review!
Description

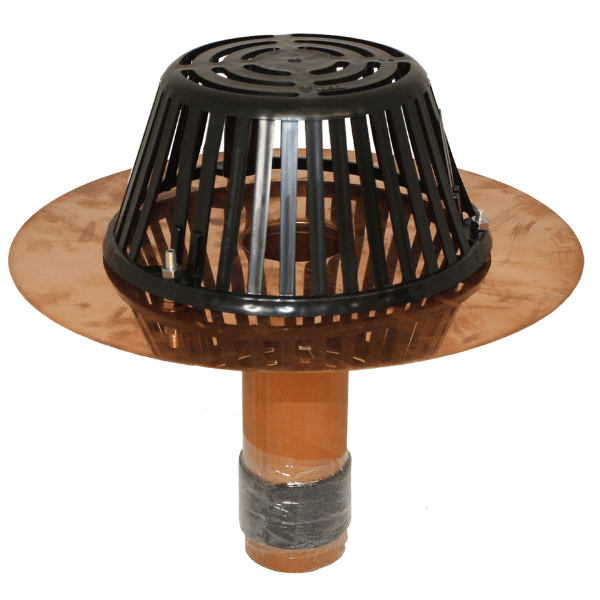

The Marathon BCTS49 Copper-Tite is a 4-inch retrofit roof drain with a copper body and factory-applied expanding anti-backup tape seal. This drain fits tightly into existing pipes and comes with a standard ABS 10-inch clamping ring and a 10-inch polyethylene strainer. Available with either a 14-inch small flange or 18-inch large flange, the BCTS49 provides a durable, watertight retrofit solution with a 9-inch outlet length.
Key Features:
-
4″ outlet size (BCTS49) with anti-backup expanding tape seal
-
Copper retrofit body for long life and corrosion resistance
-
Comes standard with 10-inch ABS clamping ring and 10-inch polyethylene strainer
-
Choice between 14-inch small flange or 18-inch large flange for compatibility
-
Designed to fit existing pipes from 3-7/8″ to 4-1/4″ inside diameter
Specifications
- Model / Part Number: BCTS49 (Small Flange), BCTS49CR (Large Flange)
-
Outlet size: 4″
-
Fits existing drain pipe size: 3-7/8″ – 4-1/4″ inside diameter
-
Outlet length: 9″
-
Body: Copper
-
Flange: 14″ (small flange) or 18″ (large flange)
-
Clamping Ring: 10″ ABS
-
Strainer: 10″ polyethylene
-
Packaging: 1 per carton
How To
- Identify the correct BCTS49 model with the needed flange size (small or large).
-
Clean and prep the existing drain sleeve and membrane around the drain.
-
Test-fit the drain in the sleeve before removing the tape restraint.
-
Remove tape restraint and insert immediately so the expanding tape fills the gap in the sleeve.
-
Seat the flange flat on the roof surface.
-
Install the 10-inch ABS clamping ring and bolt in the 10-inch polyethylene strainer.
-
Flash the flange as specified by the roofing membrane system.
FAQs
Q: What outlets sizes does BCTS49 fit?
A: It’s made for a 4-inch outlet.
Q: What pipe sizes will it fit into?
A: It fits pipes with inside diameter between 3-7/8″ and 4-1/4″.
Q: What flange options are available?
A: Either a 14-inch small flange or an 18-inch large flange.
Q: What is the outlet length of the drain?
A: The outlet length is 9″.
Q: What materials are used in construction?
A: Copper body, 10-inch ABS clamping ring, 10-inch polyethylene strainer, and expanding tape anti-backup seal.
