Choice of 3 Bolt / 10" Poly (Included) or Cast Iron Strainer
Was: $264.05
Price: $264.05Sale: $264.05
Item #305-BCTS59
Write a review!
Description

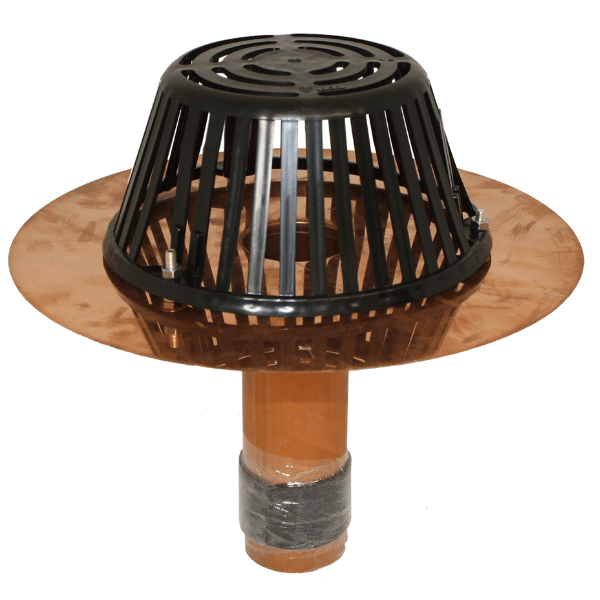

The Marathon BCTS59 Copper-Tite is a 5-inch retrofit roof drain featuring a copper body and a factory-applied expanding anti-backup tape seal. It comes with a 10-inch polyethylene strainer and a 10-inch ABS clamping ring. Available in large flange size, and built with a 9-inch outlet length, the BCTS59 provides a reliable watertight solution for retrofits without disturbing the existing roof system.
Key Features:
-
5-inch outlet size with retrofitted anti-backup tape seal
-
Copper body for longevity and corrosion resistance
-
Standard ABS 10-inch clamping ring and 10-inch polyethylene strainer
-
Large flange configuration for enhanced coverage
Specifications
- Model / Part Number: BCTS59 (Large Flange)
-
Outlet size: 5″
-
Outlet length: 9″
-
Fits existing drain pipe size: 4-7/8″ – 5-1/4″
-
Body: Copper
-
Flange: 18″
-
Clamping Ring: 10″ ABS
-
Strainer: 10″ polyethylene
-
Packaging: 1 per carton
How To
- Select the BCTS59 model and verify it matches the existing pipe size (4-7/8″ to 5-1/4″).
-
Clean and prepare the drain sleeve and roof membrane area.
-
Test fit the drain in the sleeve before removing the restraint from the expanding tape.
-
Remove the restraint and insert the drain so the expanding seal fills the sleeve gap.
-
Seat the 18-inch flange flat against the roofing surface.
-
Attach the 10-inch ABS clamping ring and bolt in the 10-inch polyethylene strainer.
-
Flash the flange in accordance with the roofing membrane manufacturer’s requirements.
FAQs
Q: What flange size is used on the BCTS59?
A: The BCTS59 comes with an 18-inch large flange.
Q: What is the outlet length of this model?
A: The outlet length is 9 inches.
Q: What pipe sizes does the BCTS59 fit?
A: It fits existing drain pipes with inside diameters from 4-7/8″ to 5-1/4″.
Q: What materials are included with this drain?
A: The body is copper, with a 10-inch ABS clamping ring and a 10-inch polyethylene strainer.
Q: How does the anti-backup seal function?
A: The expanding tape seal fills the gap between the drain outlet and existing sleeve, forming a watertight, back-up resistant seal.
