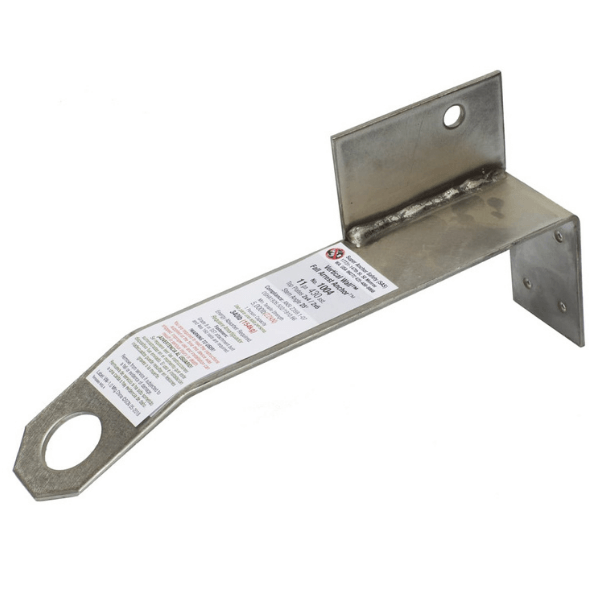

The Vertical Wall anchors are designed for exterior wall applications as an overhead anchorage device that is nearly invisible from the ground. Fabricated from 11-gauge 430 stainless steel in two models to adapt to varying slope roofs.
The install at the wall plate and top chord junction with a single bolt and 4 16d vinyl sinkers that are supplied with each anchor. Perfect for siders, window installers and painters. Can be painted for minimum visual effect. Designed to accommodate the bird blocking component on low or steep slopes.
- Permanent Low-Profile Fall Arrest Anchor
- Fall Arrest While Working on Wall
- No Access to Roof Needed for Wall Trades
- 2 Models Available Depending Pitch:
- #1004 for Roof Pitch up to 7/12
- #1004A for Roof Pitch 8/12 and Greater
Device: Permanent truss anchor for 1 person fall protection
Structure Attachment: 2x4 and/or 2x6 Top Plate
Minimum Breaking Point: 5,000 Pounds
Minimum Tensile: 5,000 Pounds
Material: 11-Gauge 430 Stainless Steel
Temperature Rating: -30 Degrees Fahrenheit Up tp 120 Degrees Fahrenheit
Maximum User Weight: 340 Pounds including tools and equipment
Hardware 5/16" - 18 x 2 - 1/4" Grade 8 Bolt with locknut and 4 16d Vinyl Sinker
OSHA Standard: 1926:502 and 1910.66
ANSI Standard: Z359.1-07 and A10.32-2012
CSA Standard: Z259.11-05 for applicable products
Please read and understand the manufacturer instructions before using this product
