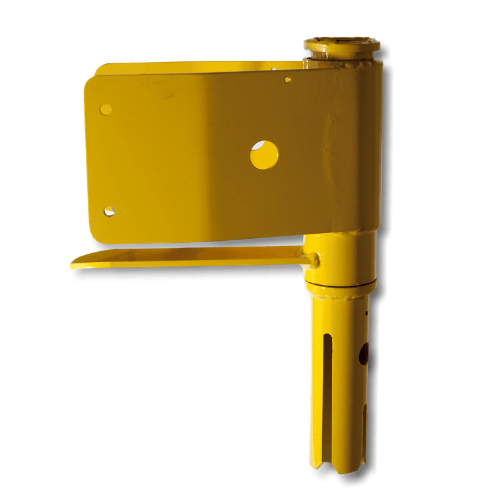

Guardian Fall Protection 00380 Skyhook Swivel

The Skyhook™ Swivel Top is great for the first-worker up system. The swivel top is easy to install as it mounts on top of the Skyhook™ anchor point via its removable and reusable bolt-on application. This product allows for a self-retracting lifeline to swivel a complete 360 degrees. This product does not include a Skyhook™ or retractable lifeline.

Features:

• Easy installation
• Swivels 360 degrees
• Removable and reusable bolt-on application
• Cost effective accessory to the skyhook
• Great for first-worker-up system
• Powder Coated Steel

Applicable Standards: ANSI Z359.1-07, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910

• Easy attachment to top of Skyhook through use of locking hitch pin.
• No tools required.
• Allows retractable lifeline to swivel 360 degrees.
• Reduces swing fall hazards.
• Keeps retractable lifeline cradled on its edge instead of laying flat on its side.
• Keeps retractable lifeline off of roof surface preventing possible damage to roof.
• Light weight accessory.
• Will accommodate up to 30 foot Guardian retractable lifeline.
• Can use 50 foot retractable lifeline with (10975) adapter wings.
• Powder coated for corrosion protection.

Q. What if I don't meet the decking/substrate requirements of a ¾" CDX plywood or 20 ga. metal?

A. There are a variety of different methods. You can use 2x4 bracing

for wood applications or you can lay a 4x4 sheet of wood or decking

down over the top of the area where anchor points are going to be

installed.

Q. What is the proper spacing if I want to run the 4 worker horizontal line system?

A. CB: 12's thru 18's: 20ft. on center SKYHOOKS: 16ft. on center

Q. How many workers does the horizontal cable system hold?

A. 4 in. FALL RESTRAINT per continuous run of cable; 1 in FALL ARREST per continuous run of cable

Q. How do I attach the cable system to the anchors? Do I attach to each one?

A. Terminate the cable on one end by running approx. 2 feet through the

anchor and clamping it back to the remaining cable with at least 3

cable clamps. For Skyhooks, run the cable through the large hole, then

through the small hole, and back through the large hole. * Run the end

of the cable line through each intermediate anchor (for Skyhook, run

only through the large diameter hole) * Do not stretch the cable tight!

Allow 6 to 8" extra line per 20ft. to allow for slack * When selling

the line, also add the 2 feet and the slack * The slack absorbs some of

the impact in a fall

Q. Can I install a CB-1-B on a flat roof?

A. No. Because it is a flat anchor with no upright it cannot be

installed in any waterproof manner. It is intended for vertical

structures.
