Ships Free!
FREE SHIPPING to commercial addresses with a dock AND a forklift!
If the address is missing a dock, forklift, OR is residential,
a $99.00 fee will be applied.
Shown with optional Swivel Top Attachment & SRL
*** NOT INCLUDED ***
Price: $4,950.00
Item #GUA-00260
Write a review!
Description

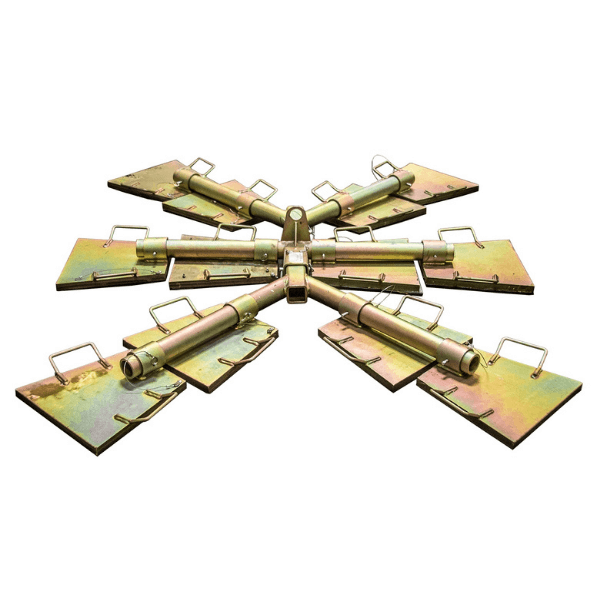

The Guardian Fall Protection Angel Anchor System (00260) is a portable, non-penetrating ballast anchor designed specifically for commercial roofing applications. This reusable anchor eliminates the need to drill or penetrate roofing membranes, preserving roof integrity while providing a secure tie-off point. Built from galvanized steel with integrated weights, the system offers stability for fall arrest and restraint applications. Its modular design makes transport, assembly, and disassembly simple, and it is fully OSHA and ANSI compliant. The Guardian 00260 Angel Anchor is an ideal solution for temporary anchorage on flat or low-slope commercial roofs.
Key Features:
-
Non-penetrating ballast anchor for commercial roofing
-
Preserves roof membrane integrity—no drilling required
-
Modular, reusable design for easy transport and setup
-
Provides fall arrest or restraint anchorage point
-
OSHA and ANSI compliant
Specifications
- Model: 00260
-
Type: Angel Anchor System
-
Material: Galvanized steel with integrated ballast weights
-
Dimensions: Base frame approx. 36 in × 36 in
-
Weight: Approx. 300 lb total (with weights installed)
-
Capacity: 1 user, 130–420 lb (per OSHA/ANSI)
-
Application: Temporary, non-penetrating anchorage for commercial roofs
-
Compliance: OSHA 1910.140, OSHA 1926.502, ANSI Z359.18
-
Includes: (1) Angel Anchor frame, ballast weights, and connecting hardware
How To
- Transport anchor components to work area.
-
Position frame on flat or low-slope commercial roof surface.
-
Install ballast weights into the frame per manufacturer’s guidelines.
-
Verify total system weight meets required specification.
-
Connect lanyard, SRL, or lifeline to anchor connection point.
-
Ensure anchor remains level and secured before use.
-
Inspect system before and after each job.
FAQs
Q: Does the Angel Anchor require roof penetration?
A: No, it is a non-penetrating ballast anchor designed to protect roofing membranes.
Q: How much does the anchor weigh?
A: Approximately 300 lb when fully assembled with ballast weights.
Q: Is the system reusable?
A: Yes, it is fully reusable and portable.
Q: What type of roofs is it intended for?
A: Flat or low-slope commercial roofing applications.
Q: Is it OSHA and ANSI compliant?
A: Yes, it complies with OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18.
