New!
Price: $2.77
Item #S-5-WINDCLAMP-2X
Write a review!
Description

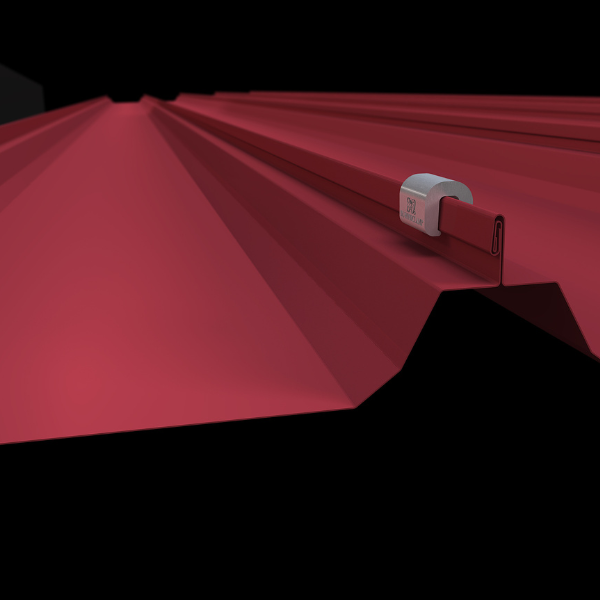

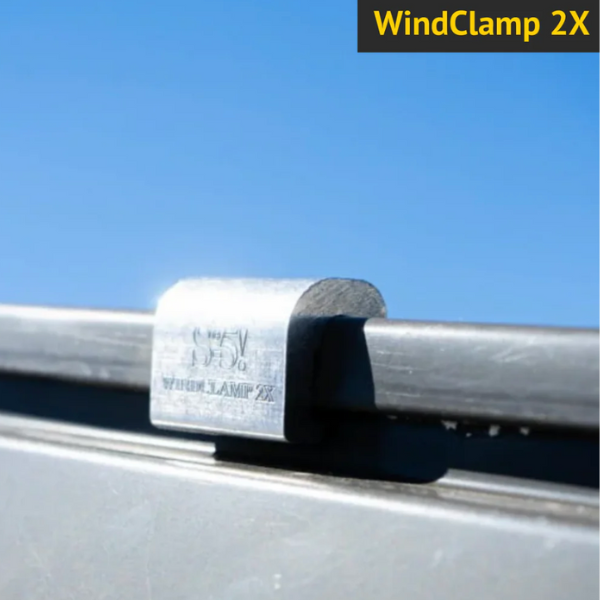

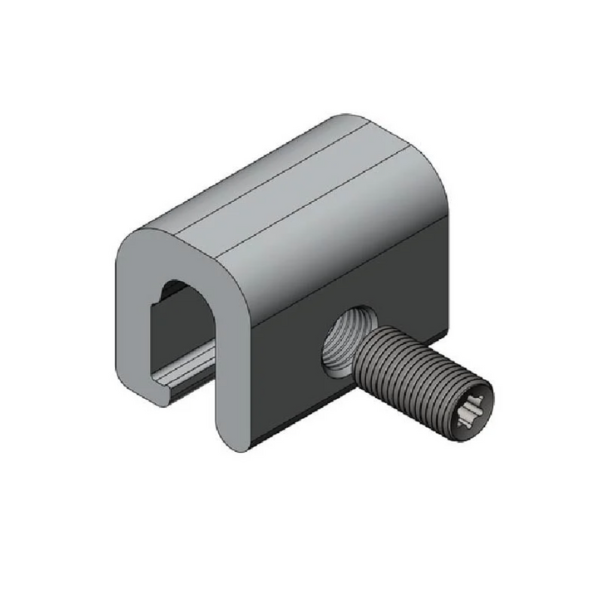

The S-5! WindClamp 2X is designed to significantly enhance the wind uplift performance of standing seam metal roof systems. This innovative clamp attaches directly to the vertical seam, locking adjacent seam panels together to prevent disengagement during high wind events. By increasing system wind resistance, the WindClamp 2X provides building owners, contractors, and engineers with a cost-effective solution for strengthening new or existing standing seam roof systems against hurricanes, tornadoes, and other extreme weather conditions. Fabricated from high-strength aluminum with stainless steel hardware, the clamp installs quickly and without roof penetration, preserving roof warranties while delivering long-term reliability.
Key Features:
-
Increases wind uplift resistance on standing seam metal roofs
-
Non-penetrating design preserves roof warranty and integrity
-
Locks seam panels together to prevent separation in high winds
-
High-strength aluminum construction with stainless steel hardware
-
Lightweight, compact, and easy to install
-
Suitable for new construction or retrofit applications
Specifications
- Material: High-strength aluminum body with stainless steel hardware
-

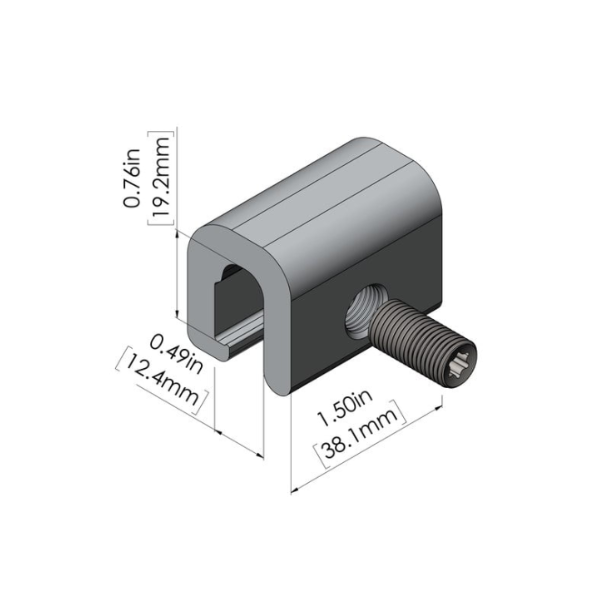

Dimensions: Approx. 1.5" × 1.5" × 2.0"
-
Weight: ~0.20 lb each
-
Applications: Increases wind uplift capacity of standing seam roof systems
-
Roof compatibility: Designed for most vertical standing seam profiles (consult manufacturer for exact compatibility)
-
Installation method: Non-penetrating seam attachment with set screws
-
Included components: WindClamp 2X body with stainless hardware
How To
- Identify the standing seam ribs where WindClamp 2X units will be installed.
-
Place the clamp over the seam, ensuring proper alignment.
-
Tighten the stainless steel set screws using a Torx T-30 driver to manufacturer torque specifications.
-
Repeat installation at designated intervals along the roof seam as specified by engineering requirements.
-
Inspect all installed clamps for secure attachment and torque accuracy.
FAQs
Q: What does the WindClamp 2X do?
A: It increases wind uplift resistance by locking standing seam panels together to prevent seam separation.
Q: Is installation non-penetrating?
A: Yes, it attaches to the seam with set screws, preserving the roof warranty.
Q: What roof types are compatible?
A: It is designed for most vertical standing seam metal roof profiles; consult manufacturer for profile-specific compatibility.
Q: Where is WindClamp 2X typically used?
A: It is used in hurricane- or tornado-prone areas, or anywhere enhanced wind resistance is required.
