Price: $3.23
Item #S-5-WINDCLAMP-DL
Write a review!
Description

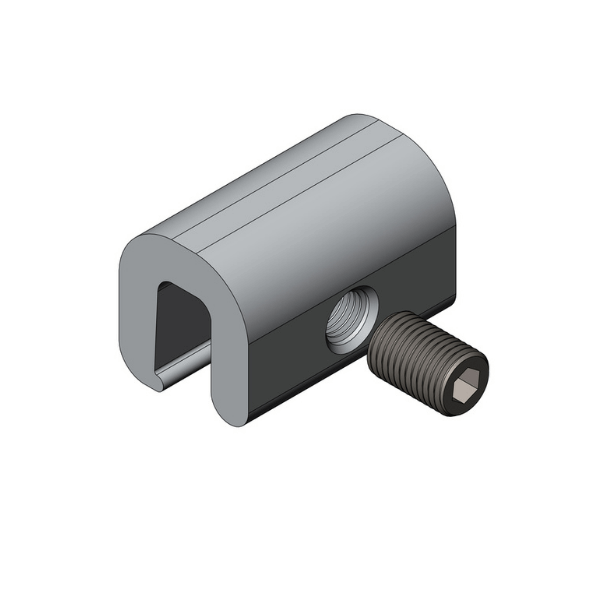

The S-5! WindClamp DL is specifically engineered for use on double-lock (mechanically seamed) standing seam metal roofs. It attaches directly to the seam to increase wind uplift resistance, helping prevent seam roll-out or disengagement in severe wind events such as hurricanes and tornadoes. This non-penetrating clamp installs quickly and securely without compromising the roof’s warranty or integrity. Made from high-strength aluminum with stainless steel hardware, the WindClamp DL is suitable for both new construction and retrofit applications, giving building owners and contractors a proven way to strengthen roof performance in high-wind regions.
Key Features:
-
Designed for double-lock standing seam metal roof profiles
-
Increases wind uplift resistance and prevents seam separation
-
Non-penetrating design preserves roof integrity and warranty
-
Constructed from high-strength aluminum with stainless steel hardware
-
Compact, lightweight, and fast to install
-
Effective for both new construction and retrofit applications
Specifications
- Material: High-strength aluminum body with stainless steel hardware
-
Dimensions: Approx. 1.5" × 1.5" × 2.0"
-
Weight: ~0.20 lb each
-
Roof compatibility: Double-lock standing seam profiles
-
Installation method: Non-penetrating seam attachment with Torx set screws
-
Applications: Enhances wind uplift resistance for metal roof systems
-
Included components: WindClamp DL body with stainless hardware
How To
- Identify the double-lock standing seam ribs where WindClamp DL units will be installed.
-
Position the clamp over the seam and ensure proper alignment.
-
Tighten the stainless steel set screws using a Torx T-30 driver to manufacturer torque specifications.
-
Install additional clamps at intervals as determined by engineering requirements.
-
Inspect all clamps after installation to verify secure fit and correct torque.
FAQs
Q: What roof type is the WindClamp DL designed for?
A: It is designed specifically for double-lock standing seam metal roof profiles.
Q: Does installation penetrate the roof panels?
A: No, installation is fully non-penetrating and preserves the roof warranty.
Q: When should WindClamp DL be used?
A: It should be used in regions where added wind uplift resistance is needed, such as hurricane or tornado zones.
Q: What materials are used in the clamp?
A: The clamp body is made from high-strength aluminum, with stainless steel hardware for durability and corrosion resistance.
