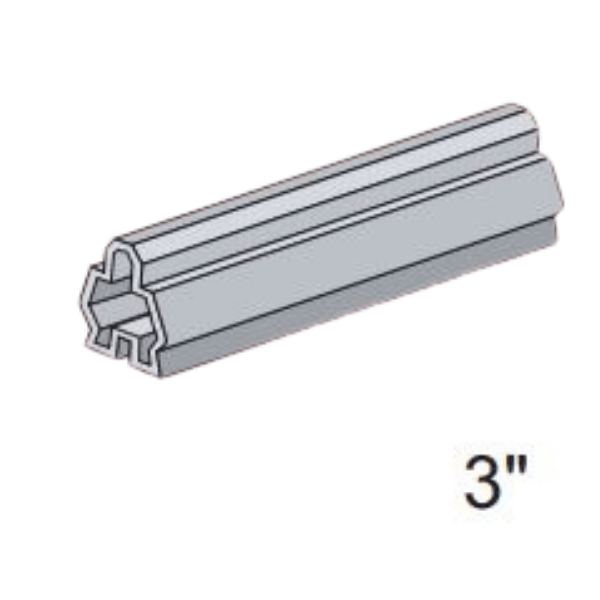

S-5-K HD 3" Insert

The S-5! K HD 3" Insert is a precision-machined aluminum accessory used exclusively with the K HD (Klip-Lok Heavy Duty) seam clamp. Designed for retrofit and eave applications, this shorter insert provides secure clamping on bulb-shaped snap-together standing seam roof profiles such as Klip-Lok, Klip-Rib, Mirage, and similar systems. The insert slides into the clamp body, ensuring a precise fit that increases holding strength and maintains roof integrity without penetration. Its aluminum construction with stainless steel hardware compatibility ensures corrosion resistance and long service life.

Key Features:

• Designed exclusively for the S-5! K HD Clamp
• 3" insert length for retrofit and eave applications
• Precision fit for bulb-shaped snap-together standing seams
• Non-penetrating design preserves roof warranties
• Made from high-strength aluminum for durability
• Corrosion-resistant and long-lasting

• Material: High-strength aluminum
• Length: 3 inches
• Compatibility: For use with S-5! K HD Clamp only
• Roof profiles: Bulb-shaped snap-together seams (e.g., Klip-Lok, Klip-Rib, Mirage, SpeedDeck, Saflok)
• Application: Retrofit and eave-specific installations
• Installation: Slides into clamp body for secure fit
• Warranty: Lifetime manufacturer defect warranty

• Verify that the roof profile is a bulb-shaped snap-together standing seam.
• Select the K HD Clamp and prepare it for installation.
• Slide the 3" insert into the clamp body, aligning it with the roof seam geometry.
• Position the clamp and insert assembly over the seam at the desired location.
• Tighten the clamp’s setscrews to manufacturer torque specifications.
• Attach rooftop accessories such as solar arrays, snow retention, or walkways.

Q: What is the S-5! K HD 3" Insert used for?
A: It is designed for retrofit and eave applications when installing the K HD Clamp on bulb-shaped snap-together roof seams.

Q: Can this insert be used with other clamps?
A: No, the 3" insert is only compatible with the S-5! K HD Clamp.

Q: What roof types are supported with this insert?
A: It is made for bulb-shaped snap-together seams like Klip-Lok, Klip-Rib, Mirage, SpeedDeck, and Saflok profiles.

Q: Is the insert included with the K HD Clamp?
A: Inserts are typically sold separately. The 3" insert must be purchased in addition to the K HD Clamp body.
