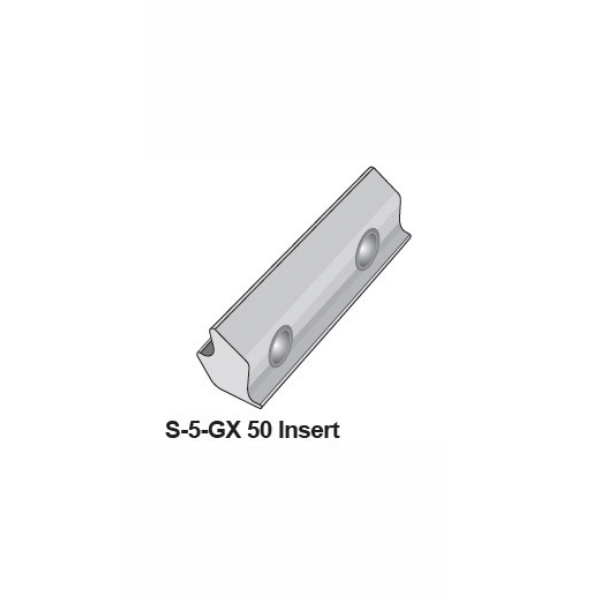

S-5 GX 50 INSERT

The S-5! GX-50 Insert allows the S-5-K Grip Clamp to securely fit larger bulb snap-together roof profiles. It replaces the standard insert so the clamp matches specific rib dimensions in profiles such as KLIP-LOK Classic 700, Stramit Speed Deck Ultra, Fielders KingKlip 700, and similar. Using the correct GX-50 shape increases holding strength and reduces risk of improper fit. Each kit includes the insert only; clamp and hardware sold separately.

Key Features:

• Designed to fit larger bulb snap-together profiles (GX-50 family)
• Enhances holding strength by matching rib dimensions accurately
• Compatible with S-5-K Grip clamp only
• Replaces standard insert; side-bolts are used rather than setscrews in the clamp design
• Lifetime warranty for material and workmanship under S-5! product terms

• Compatible clamp: S-5-K Grip Clamp (not Mini variant)
• Profile compatibility: KLIP-LOK Classic 700, KLIP-LOK 700 Hi-Strength, Stramit Speed Deck Ultra, Fielders KingKlip 700, and similar profiles
• Included hardware: Insert only (no clamp or bolts)
• Weight per unit: about 0.0140 kg (each insert)
• Packaging dimensions per insert: approximately 55 mm × 15 mm × 25 mm
• Warranty: Lifetime product defect warranty under S-5! terms

• Identify your roof profile and confirm it matches one of the GX-50-compatible profiles.
• Remove any previous insert from the S-5-K Grip Clamp if installed.
• Insert the GX-50 into the clamp body aligning its shape to match the roof rib.
• Tighten the clamp side-bolts until insert is seated; ensure bolt heads engage properly.
• Mount the clamp onto the roof seam per standard clamp installation procedures.
• Inspect for snug fit, no deformation of the panel, and proper torque of the bolts.

Q: What clamp is the GX-50 Insert for?
A: It’s for the S-5-K Grip Clamp (standard, not the Mini version).

Q: What roof profiles does it fit?
A: Profiles like KLIP-LOK Classic 700, KLIP-LOK 700 Hi-Strength, Stramit Speed Deck Ultra, Fielders KingKlip 700, and similar bulb snap-together profiles.

Q: Does it include the clamp hardware?
A: No. The insert is sold by itself; clamp and bolts are separate.

Q: What warranty applies?
A: It carries the standard S-5! lifetime product defect warranty.
