Price: $316.40
Item #OMG-ALDCR2A
Write a review!
Description

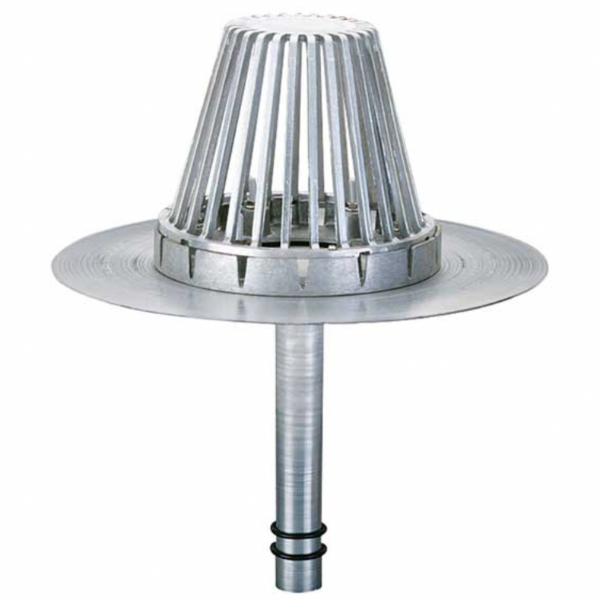

The OMG ALDCR2A 2-inch O-Ring RetroDrain is a retrofit roof drain insert engineered to replace existing drains without removing plumbing fixtures. It features a seamless one-piece spun aluminum body, dual rubber O-rings, and an extra-large flange to secure roofing membrane flashing. It comes with a U-Flow cast aluminum strainer dome and aluminum clamping ring to maintain durability and watertight integrity.
Key Features
-
seamless one-piece spun aluminum body to eliminate leak points
-
two rubber O-rings for consistent watertight seal
-
extra-large flange for positive attachment of roofing membrane flashing
-
12-inch long stem to accommodate field conditions
-
includes U-Flow cast aluminum strainer dome and aluminum clamp ring
Specifications
- Item number: ALDCR2A (2-inch)
-
Drain body: 16 gauge (0.064-inch) spun aluminum
-
Seal: 2 rubber O-rings
-
Flange: 17½-inch diameter
-
Stem: 12-inch length
-
Strainer dome: cast aluminum
-
Clamp ring: aluminum
-
Weight: 32 lbs
How To
- Clean existing drain leader of asphalt, debris, or obstructions to ensure a clear path
-
Position the RetroDrain from the roof surface so that the flange lies flush on the roofing membrane
-
Place the rubber O-rings toward the bottom of the stem; apply generous sealant around the O-rings and stem to ensure watertight seal
-
Secure flange to roof deck/membrane; attach aluminum clamp ring and incorporate flashing over fasteners
-
Install the U-Flow strainer dome on top to protect from debris
FAQs
Q: What size is this RetroDrain meant for?
A: It is meant for a 2-inch drain leader (existing drain pipe), used as a retrofit option.
Q: How many rubber O-rings does it use?
A: It uses two rubber O-rings to form the watertight seal around the drain stem.
Q: What is the body material?
A: The body is 16 gauge spun aluminum; dome and clamp ring are cast aluminum.
Q: How heavy is the ALDCR2A unit?
A: The ALDCR2A weighs about 32 lbs.
Q: Can it be installed without removing existing plumbing fixtures?
A: Yes. The ALDCR2A is designed for rooftop installation so plumbing or fixtures need not be disturbed.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
