Item #S-5-S-MINI
Write a review!
Description

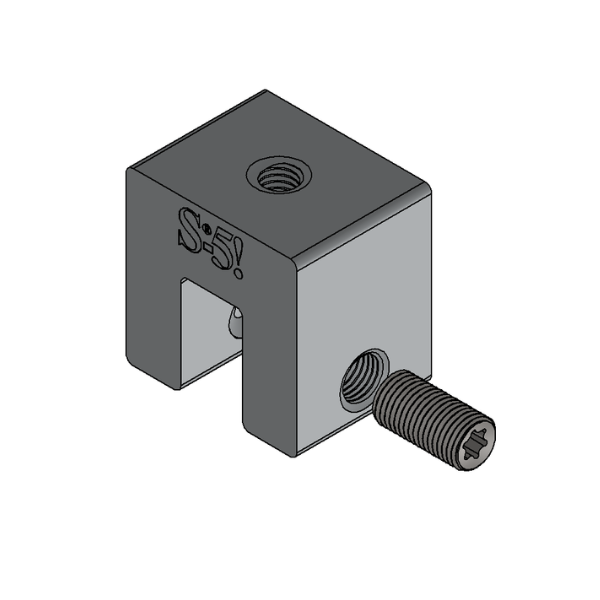

The S-5! S-5-S Mini Clamp is a lighter-duty version of the standard S-5-S Clamp, designed for snap-lock vertical and angle-seam (single-fold) roof profiles with limited horizontal seam projection. It features a single round-point Torx-T30 setscrew instead of two, eliminating the M8 bolt for accessories. Its compact size makes it an economical choice for mounting roof accessories like antennas, signage, conduit, lighting, or small solar mounts on compatible seams. It retains many of the non-penetrating, finish-friendly qualities of the standard clamp, preserving roof panel integrity and warranty.
Key Features:
• One round-point Torx-T30 setscrew; no M8 bolt included
• Shorter body than standard S-5-S for lighter-duty attachments
• Non-penetrating design that preserves roof finish and warranties
• Compatible with snap-lock and single-fold profiles with horizontal seam dimension ≤ 0.54″ (13 mm)
• All hardware is stainless steel; clamp body is structural aluminum
Specifications
• Seam compatibility: Snap-lock (vertical) or angle-seam single-fold profiles with horizontal projection ≤ 0.54″ (13 mm)
• Seam height: Typical vertical snap-lock 1.5″ or 1.75″; angle-seam single-fold 1.0″ or 1.5″
• Setscrew: One 3/8-24 × 0.80″ round-point Torx-T30 stainless steel setscrew
• Material: Structural aluminum body; stainless steel hardware

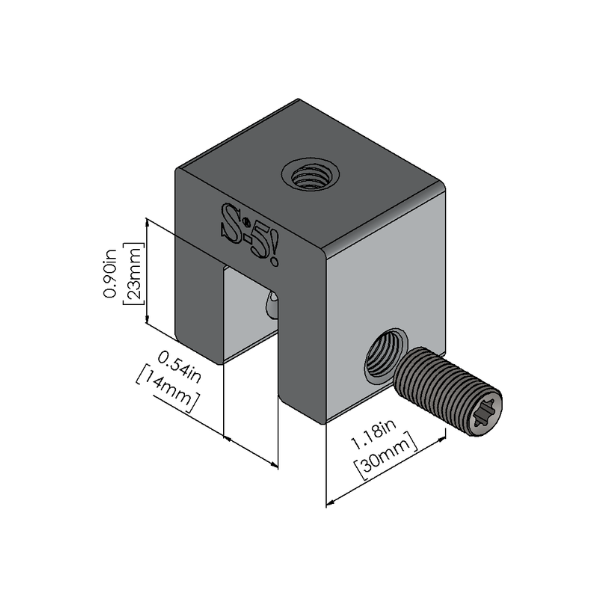

• Approximate clamp body dimensions: height ~1.50″ (38 mm); width ~1.50″ (38 mm); depth ~1.50″ (38 mm)
• Includes: Clamp body, one stainless setscrew, Torx-T30 bit tip
How To
- Identify snap-lock or single-fold angle-seam panel with horizontal projection ≤ 0.54″ (13 mm).
-
Position clamp body over seam ensuring setscrew aligns properly.
-
Insert the single round-point Torx-T30 setscrew and hand-thread until seated.
-
Tighten setscrew to manufacturer-specified torque using Torx-T30 bit.
-
Attach desired accessory to the top channel or through separate hardware if needed.
-
After installation and load exposure, inspect clamp alignment and re-check setscrew torque.
FAQs
Q: How does the S-5-S Mini differ from the standard S-5-S Clamp?
A: Mini uses one setscrew and omits the M8 bolt, making it lighter-duty and more economical.
Q: What roof profiles work with S-5-S Mini?
A: Snap-lock vertical and angle-seam single-fold profiles with horizontal projection up to about 0.54″.
Q: Can S-5-S Mini be used with snow retention systems like ColorGard or SnoRail?
A: No. Mini clamps are not compatible with ColorGard™, SnoRail™, or SnoFence™ systems.
Q: What materials and finishes are used in the S-5-S Mini Clamp?
A: Aluminum body for the clamp; stainless steel setscrew; finishes correspond to roof panel material compatibility.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
NGI Torque Wrench for S-5
Recommended by S-5 for proper installation
Price: $399.95
Availability: In Stock
Usually ships within 1-2 Business Days
The S-5! TW NGI Torque Wrench is the recommended installation tool for properly tightening the setscrews on S-5! clamps. It is precision-calibrated to achieve the manufacturer’s required torque specification, ensuring consistent performance, proper holding strength, and roof warranty compliance. This tool is compact, durable, and easy to use in the field. By using the NGI Torque Wrench, installers can guarantee that clamps are neither under- nor over-tightened, which protects both the clamp...
