Van Mark Steel Leg Kits

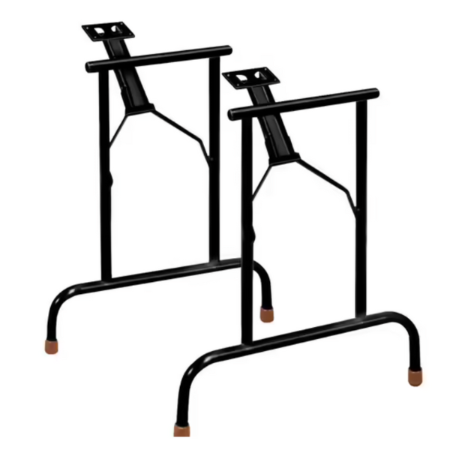

Van Mark Steel Leg Kits (3000, 3001, 3002, 3003) turn your portable brake into a stable, stand-alone workstation on the jobsite. Built from rugged steel, these adjustable leg sets are designed to match specific Van Mark brake models and lengths, providing a solid, level base without the need for sawhorses or makeshift supports. Once installed, your brake stands at a comfortable working height, stays put during clamping and bending, and is easier to set up in the same configuration from job to job—ideal for siding, roofing, and trim crews who rely on consistent, accurate bends all day long.

Key Features

• Model-Specific Fit
  Each kit (3000, 3001, 3002, 3003) is configured for particular Van Mark brake models and lengths, helping ensure proper balance, mounting hole alignment, and support where the brake needs it.
• Heavy-Duty Steel Construction
  Built from strong, contractor-grade steel designed to handle everyday loading, unloading, and jobsite abuse while keeping the brake stable during full-length bends.
• Adjustable Working Height
  Leg adjustment lets you set a comfortable, ergonomic working height and compensate for uneven ground so the brake stays level and your bends stay consistent.
• Stable, Wide-Footprint Support
  A wide stance and cross-braced leg design help resist rocking, twisting, and flexing under load, improving accuracy when bending long pieces of coil stock or light-gauge metal.
• Replaces Sawhorses & Improvised Supports
  Provides a dedicated, purpose-built support system so crews don’t have to rely on random sawhorses, blocks, or makeshift stands that can shift or sag.
• Bolt-On, Semi-Permanent Installation
  Legs fasten securely to the brake, turning it into a unified unit that’s easier to move around and set up in the same configuration every time.
• Jobsite-Ready Durability
  Protective finish and rugged hardware help the leg kits stand up to weather, transport vibration, and daily professional use.

Compatible Brake Families (varies by kit model):

• Model 3000: For selected Van Mark portable brakes (shorter lengths / specific series)
• Model 3001: For compatible mid-length Van Mark brakes
• Model 3002: For compatible longer Van Mark brakes
• Model 3003: For additional / alternate brake sizes within the Van Mark line
  (Each kit is matched to specific brake models and lengths; hole patterns and geometry are pre-aligned for those brakes.)

Weight (Per Kit – Approximate):

• Weight Range: 25–45 lbs per kit, depending on model and brake length
• Lighter kits paired with shorter brakes; heavier kits support longer or heavier brake models

Dimensions (Per Leg / Installed – Approximate):

• Leg Height (Working Range):
  • Adjustable to typical brake working heights of about 36–42 in
• Footprint Width (Front-to-Back):
  • Generally 18–24 in from front leg contact point to back, providing a stable stance
• Spread (Side-to-Side – Pair of Legs):
  • Matches brake width and mounting hole pattern; forms a wide, stable base under each end of the brake

Material:

• Frame / Legs: Heavy-duty steel
• Cross Braces & Mounts: Steel
• Hardware: Steel bolts, fasteners, and mounting brackets
• Finish: Powder-coated or similarly protective finish for corrosion resistance and durability in outdoor jobsite conditions

Height Adjustment:

• Adjustment Method: Multi-hole or telescoping design (depends on kit) with locking fasteners/pins
• Allows fine-tuning of working height to suit different users
• Helps compensate for minor ground unevenness to keep the brake level

Design & Support Features:

• Stable, Wide-Footprint Support:
  • Designed to reduce rocking and twisting when clamping and bending long metal pieces
• Cross-Braced Construction:
  • Bracing between legs increases rigidity under load
• Direct Bolt-On Mounting:
  • Legs bolt directly to the brake frame for a unified assembly, instead of resting loosely like sawhorses

Portability & Setup:

• Installation:
  • Bolt-on, semi-permanent setup; once installed, the brake and legs move as one unit
• Transport:
  • Brake with leg kit can be lifted and moved by two crew members, or loaded into truck/trailer as a single assembly
• Use Case:
  • Converts a portable brake into a stand-alone workstation without separate stands/sawhorses

Typical Applications:

• Provides stable support and ergonomic working height for:
  • Siding trim fabrication (fascia, soffit, window/door trim)
  • Roofing trim and flashing
  • General coil stock and light-gauge metal bending on residential or light commercial jobsites

Model - Fits:

3000 - Trim-A-Brake™

3001 - Trim-A-Table™

3002 - Mark I™, Mark II™

3020 - SureCut 90™ Table

Van Mark Steel Leg Kit – Model 3000

Compatibility:

• Designed for selected shorter-length Van Mark brakes (short / compact models)
• Direct bolt-on mounting with matched hole pattern

Weight:

• Approx. 25–30 lbs per kit

Dimensions (Approximate):

• Working Height Range: About 36–40 in
• Footprint Width (front to back): ~18–22 in
• Base Spread (side to side): Sized to the brake width for stable end support

Material:

• Legs & Braces: Heavy-duty steel
• Hardware: Steel bolts and brackets
• Finish: Powder-coated for corrosion resistance

Height Adjustment:

• Multi-position adjustment to set comfortable working height
• Helps level the brake on slightly uneven ground

Notes / Use Case:

• Ideal for short Van Mark brakes used in siding, trim, and repair work where a compact, stable stand is needed.

Van Mark Steel Leg Kit – Model 3001

Compatibility:

• Designed for mid-length Van Mark brakes
• Pre-aligned mounting to match specific brake frames

Weight:

• Approx. 30–35 lbs per kit

Dimensions (Approximate):

• Working Height Range: About 36–42 in
• Footprint Width (front to back): ~18–24 in
• Base Spread (side to side): Matches brake length and mounting points

Material:

• Legs & Braces: Heavy-duty steel
• Hardware: Steel fasteners and brackets
• Finish: Powder-coated protective coating

Height Adjustment:

• Adjustable leg height for ergonomic setup
• Helps keep the brake level for consistent bends

Notes / Use Case:

• Suited for everyday siding and roofing fabrication with mid-length brakes where stability and repeatable setup are important.

Van Mark Steel Leg Kit – Model 3002

Compatibility:

• Designed for longer Van Mark brakes (full-length models)
• Supports extra brake length and weight at each end

Weight:

• Approx. 35–40 lbs per kit

Dimensions (Approximate):

• Working Height Range: About 36–42 in
• Footprint Width (front to back): ~20–24 in for added stability
• Base Spread (side to side): Sized to long brake frames for a wide, rigid stance

Material:

• Legs & Braces: Heavy-duty steel
• Hardware: Steel mounting hardware
• Finish: Powder-coated for outdoor/jobsite durability

Height Adjustment:

• Multi-hole or telescoping adjustment to set ideal working height
• Helps maintain a level brake across the full length

Notes / Use Case:

• Best for full-size brakes doing long fascia, soffit, and trim runs where stability under long bends is critical.

Van Mark Steel Leg Kit – Model 3003

Compatibility:

• Designed for additional / alternate Van Mark brake sizes within the Steel Leg Kit family
• Matched to specific brake series and lengths (hole pattern and geometry aligned)

Weight:

• Approx. 35–45 lbs per kit (depending on paired brake size)

Dimensions (Approximate):

• Working Height Range: About 36–42 in
• Footprint Width (front to back): ~20–24 in
• Base Spread (side to side): Configured to the particular brake model it supports

Material:

• Legs & Braces: Heavy-duty steel
• Hardware: Steel bolts, pins, and brackets
• Finish: Powder-coated for rust and wear resistance

Height Adjustment:

• Adjustable leg height for user comfort and brake leveling
• Supports consistent bend quality over long work sessions

Notes / Use Case:

• Intended for specific Van Mark brake variants where an alternative leg kit is required for proper fit and support.

Q: What are Van Mark Steel Leg Kits (3000, 3001, 3002, 3003) used for?
A: Van Mark Steel Leg Kits are bolt-on support legs that turn compatible Van Mark brakes into stand-alone workstations. They provide a stable, level, and ergonomic working height so contractors don’t have to rely on sawhorses or makeshift supports when bending trim coil and light-gauge metal on the jobsite.

Q: How do I know which Steel Leg Kit model (3000, 3001, 3002, 3003) fits my brake?
A: Each Steel Leg Kit is matched to specific Van Mark brake models and lengths. The mounting holes and geometry are designed to line up with those brakes. You should confirm your exact brake model and length, then select the corresponding leg kit number so you get proper fit, balance, and support.

Q: Are the Steel Leg Kits height-adjustable?
A: Yes. Van Mark Steel Leg Kits include adjustable legs so you can set a comfortable working height and help keep the brake level on slightly uneven ground. This improves ergonomics for different installers and helps maintain consistent bend quality across long pieces.

Q: Do the leg kits make the brake easier to use and move between jobsites?
A: Yes. Once installed, the legs stay attached to the brake, creating a single, stand-alone unit that can be lifted and moved by the crew. This makes setup faster and more repeatable from job to job, while also improving stability during clamping and bending compared to loose sawhorses or temporary stands.
