New!
*Free Freight Terms Do Not Apply*
Price: CALL
Item #TRA-19680
Write a review!
Description

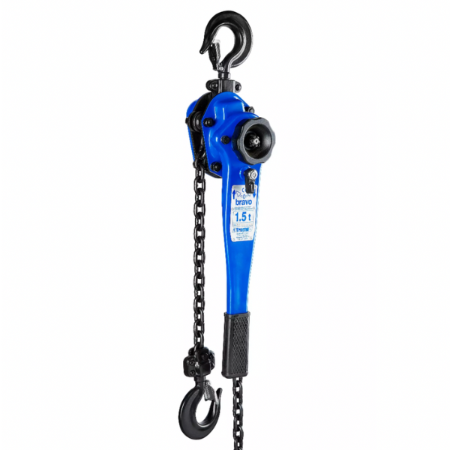

The Tractel Bravo Lever Chain Hoist model 19680 is a manually operated hoist designed for pulling, lifting, positioning, and tensioning loads in industrial, construction, and building environments. It features a 1.5 ton (3,000 lb) working load limit with a 10 ft corrosion-resistant lift chain. The lever-action design allows for controlled load movement without electrical power, and the rugged alloy steel construction is built to perform reliably under typical jobsite conditions.
Key features:
• Manual lever chain hoist designed for lifting, pulling, positioning, and tensioning
• 1.5 ton working load limit for medium-duty material handling
• Corrosion-resistant 10 ft lift chain included
• Alloy steel construction with free wheel safety braking system
Specifications
• SKU: 19680
• Product type: Bravo Lever Chain Hoist
• Working load limit: 1.5 ton (3,000 lb)
• Lift height: 10 ft
• Load chain size: 7 × 21 mm
• Number of chain falls: 1
• Effort on lever at capacity: 46 lb / 21 kg
• Included: Bravo 1.5 Ton lever chain hoist with 10 ft corrosion-resistant chain
• Hook opening: 1.2 in
• Chain type: corrosion-resistant chain
• Brake type: automatic brake with double ratchet
• Materials: high tensile alloy steel
• Meets or exceeds: ANSI/ASME B30.21C standard (manually lever-operated hoist)
• Operating temperature range: -40°F to 140°F (-40°C to 60°C)
• Wind-through chain system for fast hook positioning
• Free wheel safety device activates brake when load applied in neutral
• Five sprocket load wheel with closed bearings
FAQs
Q: What does the “effort on lever at capacity” specification mean?
A: It indicates the approximate force required on the lever to lift the rated load, which for this model is about 46 lb at full capacity.
Q: What type of chain is included with this hoist?
A: This model includes a corrosion-resistant load chain designed to withstand typical jobsite conditions.
Q: What standard does this lever hoist meet?
A: It meets or exceeds the ANSI/ASME B30.21C standard for manually lever-operated hoists.
Q: What temperature range can this hoist operate in?
A: It is designed to operate in temperatures from -40°F to 140°F (-40°C to 60°C).
