Price: $270.80
Item #TDE-65077Z
Write a review!
Description

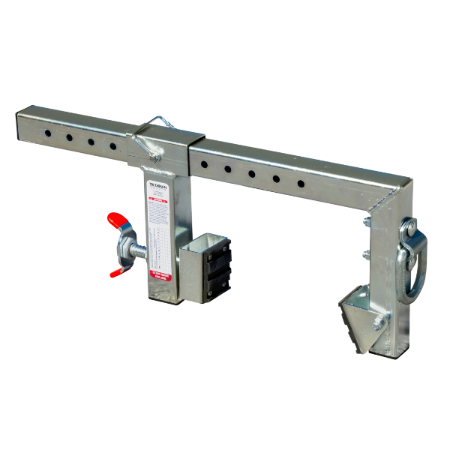

The Tie Down 65077Z Parapet Roof Anchor provides a non-penetrating clamp solution for parapet walls where roof penetration isn’t viable. It supports a single tie-off point and is rated at 5,000 lb for fall arrest. The anchor adjusts to fit parapet widths from 4 to 16 inches and is compatible with horizontal lifeline spans up to 20 ft.
Key Features
-
Non-penetrating parapet wall clamp anchor
-
Single tie-off point rated for 5,000 lb
-
Adjustable to fit parapet widths from 4″ to 16″
-
Compatible with horizontal lifeline systems up to 20 ft
-
Includes safety pin and robust adjustment handle
Specifications
- SKU: 65077Z
-
Product name: Parapet Roof Anchor
-
Type: single tie-off fall arrest anchor
-
Adjustment width: 4 in to 16 in
-
Rated strength: 5,000 lb
-
Material finish: zinc plated steel
-
Weight: 14.51 lb (approx)
-
Height: 3.75 in
-
Length: 27.00 in
-
Width: 11.13 in
-
Color: silver (zinc finish)
-
Compatibility: works with retractable lanyards, vertical lifelines, shock absorbing lanyards
-
Horizontal lifeline span compatibility: up to 20 ft for one worker
-
Standards / compliance: OSHA 1926.502, ASSE Z359.1, CSA 259, EM 385
-
Country of origin: USA
-
Warranty: 1-year limited
-
Included: safety pin for secure setup
How To
- Position the anchor over the top of the parapet wall so the jaws straddle the wall edges.
-
Adjust the anchor width using the adjustment handle until the jaws engage the parapet surfaces.
-
Insert and secure the safety pin to lock the position and prevent loosening.
-
Verify the clamp is firmly seated before attaching any fall protection gear.
-
Connect the lanyard, SRL, or vertical lifeline only to the designated tie-off point.
-
If using horizontal lifeline, ensure the span does not exceed 20 ft for single worker use.
-
After use, loosen the clamp, remove anchor, and inspect before next deployment.
FAQs
Q: What parapet wall widths can the 65077Z anchor fit?
A: It adjusts to fit parapet widths from 4 in to 16 in.
Q: What is the rated strength of this anchor?
A: The 65077Z is rated for 5,000 lb for fall arrest.
Q: Is penetration of the parapet wall required for installation?
A: No. The 65077Z is designed as a non-penetrating clamp anchor.
Q: Can it be used with a horizontal lifeline span?
A: Yes. It is compatible with a horizontal lifeline system of up to 20 ft for a single worker.
Q: What standards does the 65077Z meet?
A: It meets OSHA 1926.502, ASSE Z359.1, CSA 259, and EM 385 standards.
