• Engineered with a compact 3-foot working length, making it the ideal solution for work environments with restricted fall clearance and limited overhead space
  • Features the patented ViewPack® energy absorber cover with an integrated inspection window, allowing for rapid and easy visual verification of the shock pack's integrity
  • Constructed with heavy-duty 1-inch polyester webbing designed for maximum UV resistance and superior durability in harsh industrial settings
  • Equipped with high-strength plated alloy steel snap hooks for both harness and anchorage connections, featuring 5,000 lb static strength and 3,600 lb gate strength
  • Utilizes a controlled tear-away energy absorber designed to limit average arrest forces to 900 lbs and maximum arrest forces to 1,800 lbs
  • Fully compliant with ANSI Z359.13-2013 and OSHA 1926.502/1910.66 regulations, supporting a standard user capacity of 130 to 310 lbs
Best Price Guaranteed
Price: $54.80
    Item #FALLTECH-8253
    Write a review!

    Description

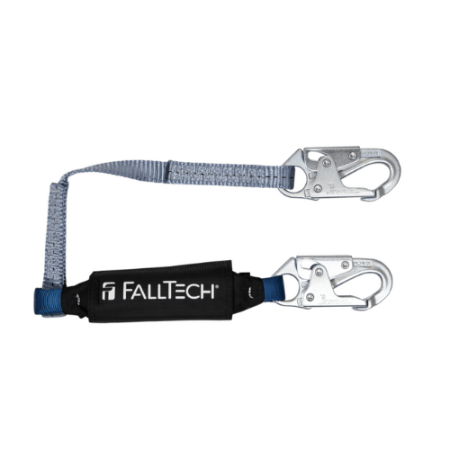

    This single-leg energy absorbing lanyard is built with heavy-duty 1″ polyester webbing and designed for applications with restricted fall clearance. It features a patented ViewPack® cover with an inspection window for the energy absorber and includes steel snap hooks at both the harness and anchor ends. The 3-foot length makes it suitable where fall clearance is limited.

    Key features:

    • Heavy-duty 1″ polyester webbing throughout with extreme UV resistance
    • Patented ViewPack® cover with inspection window for the energy absorber
    • Includes plated alloy steel snap hooks for harness and anchor connection
    • 3′ working length ideal for restricted clearance fall-protection scenarios

    Specifications

    • SKU: 8253
    • Webbing: 1″ polyester; minimum static strength 5,000 lb
    • Energy Absorber: polyester tear-away
    • Connectors (snap hooks): plated alloy steel; minimum static strength 5,000 lb with 3,600 lb gate strength
    • Static Strength: minimum 5,000 lb
    • ANSI Lanyard Class: 6′ free fall (as listed)
    • Maximum Arrest Distance: 48″
    • Average Arrest Force: 900 lb
    • Maximum Arrest Force: 1,800 lb
    • ANSI User Capacity: 130 to 310 lb max
    • OSHA User Capacity: 130 to 310 lb max
    • Compliance: ANSI Z359.13-2013; OSHA 1926.502 / 1910.66

    FAQs

    Q: When should I select a 3′ lanyard like this one instead of a longer one?
    A: Use a 3′ lanyard when your fall clearance is limited, allowing the shortest possible extension to minimize fall distance and ensure arrest mechanisms engage correctly.

    Q: How does the ViewPack® cover benefit inspection and maintenance?
    A: The ViewPack® cover offers a transparent window to visually inspect the energy absorber without disassembling the lanyard and protects the label from abrasion, improving accountability and service life.

    Q: What does “average arrest force 900 lb” mean for the user?
    A: It indicates that the absorber is designed to limit the average force transmitted to the user during a fall to around 900 lb, helping reduce impact forces compared to non-absorbed systems.

    Q: How should I inspect the snap hooks and webbing before each use?
    A: Verify the snap hooks open/close properly, check for deformation or corrosion, ensure the gate spring functions, inspect the webbing for cuts or abrasion, and confirm the ViewPack® indicator shows no fall event activation.
