Portals Plus 34105 Pedestal Plus Pipe Mounting Support

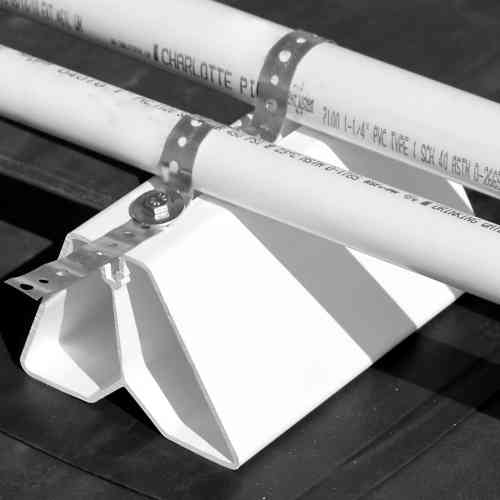

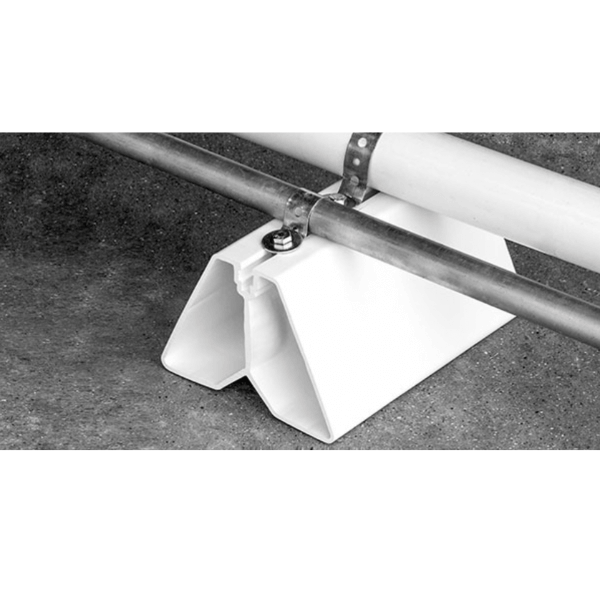

The Portals Plus 34105 Pedestal Plus Pipe Mounting Support provides a functional, practical, and cost-effective method of securing rooftop pipe runs. Winner of the Gold Medal Award for component and accessory product design in the 10th annual ACHR Dealer Design Awards, it features a white, UV-stable reinforced PVC base made from 25 percent recycled material. The design contributes to LEED credits (Sections 4.2 Recycled Content, 5.2 Regional Materials, and 7.2 Heat Island Effect). The Pedestal Plus accommodates rooftop piping applications — including gas, refrigeration, electrical, and solar conduit lines — from ½″ to 3″ in diameter, supports multiple pipes up to 150 lbs, and includes installation hardware for quick and easy setup.

Key features:

• Gold Medal Award recipient for component and accessory design (ACHR Dealer Design Awards).
• White, UV-stable reinforced PVC base with 25 percent recycled content.
• Qualifies for 3 LEED accreditation points (Recycled Content, Regional Materials, Heat Island Effect).
• Accommodates gas, refrigeration, electrical, and solar conduit runs from ½″ to 3″ in diameter.
• Supports multiple pipe runs and loads up to 150 lbs with supports spaced 10 ft apart.
• Hardware included for fast installation.
• Cost-effective, durable rooftop support solution.

• SKU: 34105

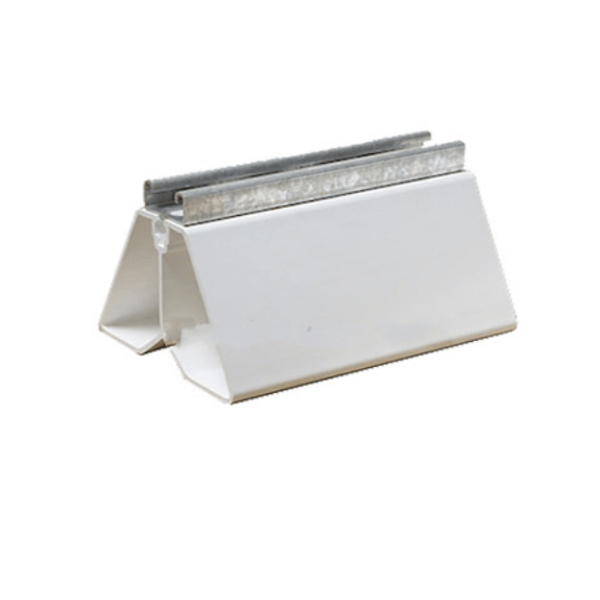

• Product type: Pedestal Plus Pipe Mounting Support
• Pipe size range: ½″ – 3″ diameter
• Load capacity: up to 150 lbs (with supports spaced 10 ft apart)
• Material: Reinforced PVC (white, UV-stable, 25% recycled content)
• LEED credits: Sections 4.2, 5.2, 7.2 (Recycled Content, Regional Materials, Heat Island Effect)

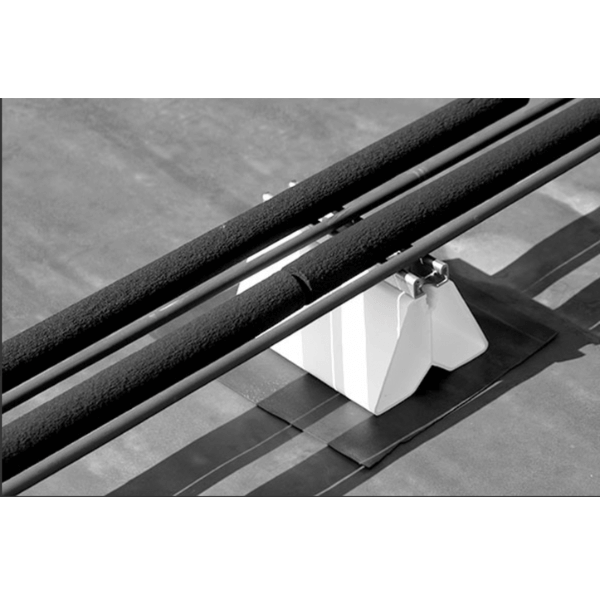

• Application: Rooftop supports for gas, refrigeration, electrical, and solar conduit lines
• Base dimensions: Length = 8 in, Width = 5-11/16 in, Height = 4 in
• Included components: Pipe support base and mounting hardware

Q: What pipes can the Pedestal Plus support?
A: It supports pipes from ½″ to 3″ in diameter for gas, electrical, solar conduit, or refrigeration lines.

Q: What is the maximum load capacity?
A: Each pedestal can support up to 150 lbs when spaced 10 feet apart along the pipe run.

Q: What is the Pedestal Plus made from?
A: It is constructed of white, UV-stable reinforced PVC containing 25 percent recycled material.

Q: Does the Pedestal Plus qualify for LEED credits?
A: Yes — it contributes to LEED Sections 4.2 (Recycled Content), 5.2 (Regional Materials), and 7.2 (Heat Island Effect).

Q: Is installation hardware included?
A: Yes, the support is supplied with mounting hardware for quick and easy installation.
