*Clearance* Portals Plus Premolded Corners - 52020, 51030, 52030

The Portals Plus Premolded Corners (items 52020, 51030 & 52030) provide pre-fabricated inside and outside corner flashings designed for parapet walls, mechanical openings, skylights, roof-top furnaces and other roof interface points. Each unit is injection-molded of 0.060″ thick EPDM (for single-ply membranes) or Neoprene (for built-up roofs) and features 8″ height with 6″ legs, radius corners, and feathered edges to optimize adhesion. The corners are ozone and ultraviolet light resistant, and offer a service temperature range from –60 °F to +270 °F.

Key features:

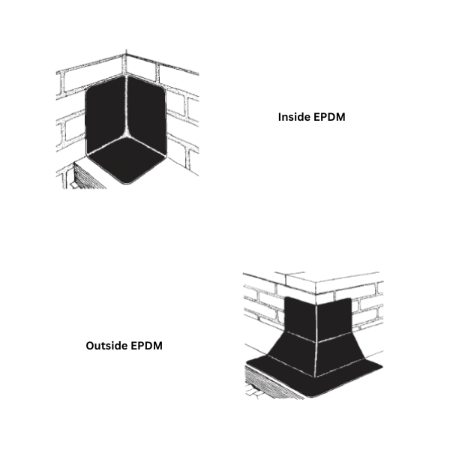

• Pre-molded inside and outside corner flashing eliminates cutting and folding of sheet materials.
• Injection-molded 0.060″ thick EPDM or Neoprene for durability in single-ply or built-up systems.
• 8″ height with 6″ legs, radius corners and feathered edges for excellent adhesive bond.
• Service temperature range from –60 °F to +270 °F, ozone and UV resistant.
• Compatible with roof systems that use or do not use built-in cant strips

• SKU/Item: 52020 / 51030 / 52030
• Product type: Premolded Corners (inside and outside)
• Construction: Injection-molded 0.060″ thick EPDM or Neoprene
• Dimensions: 8″ high, 6″ leg lengths (both legs)
• Temperature range: -60 °F to +270 °F
• Materials: EPDM (single-ply) or Neoprene (built-up)
• Application: Roof corners including parapet walls, skylights, hatches, exhaust fans, fresh air intakes, condensers, etc.

Q: What do these premolded corners replace?
A: They replace the traditional cutting, folding and stretching of sheet flashing materials at roof corners, providing a uniform pre-molded solution.

Q: Which roof systems are they compatible with?
A: They are compatible with both single-ply (EPDM) roofing and built-up membrane roofs (Neoprene) — choose the correct material version.

Q: What size and leg configuration do these corners have?
A: Each unit is 8″ high and features 6″ legs on both sides, with radius corners and feathered edges for adhesion.

Q: What is the temperature performance of these corners?
A: They are rated for service from -60 °F up to +270 °F and are resistant to ozone and UV exposure.
