- Features a high-strength 3/16-inch galvanized steel cable lifeline designed for maximum abrasion resistance and long-term durability in rugged overhead fall-arrest applications
- Engineered with a load-indicating swivel snap hook that provides a clear visual signal if a fall event has occurred, ensuring the unit is removed from service for inspection
- Constructed with a durable glass-filled nylon housing to protect internal braking components from heavy job-site impacts and harsh environmental conditions
- Includes a double-locking twist-lock alloy steel anchorage carabiner for a secure, high-strength connection to overhead anchorage points
- Classified as an ANSI Class 1 SRL, optimized for standard overhead use where the anchorage is located above the user’s dorsal D-ring
- Designed to limit average arrest forces to 900 lbs with a maximum arrest distance of 42 inches, providing reliable deceleration and safety performance
- Fully compliant with OSHA 1926.502 and 1910.66 regulations, supporting a standard user capacity of 130 to 310 lbs
Price: $408.40
Item #FALLTECH-727620
Write a review!
Description

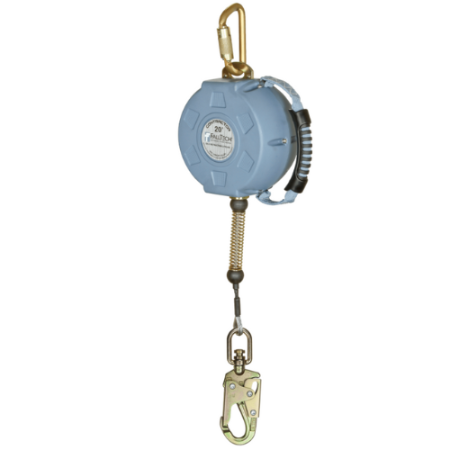

This self-retracting lifeline is built for contractor use with a 20-foot galvanized steel cable, an internal inertial braking system, and a load‐indicating swivel snap hook that signals when a fall event has occurred. The glass-filled nylon housing adds durability in rugged job-site conditions. A double-locking twist-lock anchorage carabiner is included for secure tie-off. It meets Class 1 ratings for overhead anchorage use.
Key features:
-
3/16″ galvanized steel cable lifeline rated for job-site durability
-
Load-indicating swivel snap hook that visually shows when a fall event has occurred
-
Glass-filled nylon housing protects internal components and resists impact
-
Includes double-locking twist-lock anchorage carabiner for secure connection
Specifications
- SKU: 727620
-
Lifeline material: 3/16″ galvanized steel cable; 3,600 lb minimum static strength
-
Lifeline connector: plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
-
Anchorage connector: plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
-
Static strength: 3,600 lb minimum
-
ANSI SRL Class/Type: Class 1 SRL
-
Average arrest force: 900 lb
-
Maximum arrest force: 1,800 lb
-
Maximum arrest distance: 42″
-
ANSI user capacity: 130 to 310 lb maximum
-
OSHA user capacity: 130 to 310 lb maximum
FAQs
Q: When is a Class 1 SRL like this appropriate versus other classes?
A: Class 1 SRLs are appropriate for typical overhead anchorage tie-off where the connection point is above the dorsal D-ring, and where standard non-leading-edge conditions apply.
Q: Why use a 3/16″ galvanized steel cable rather than webbing?
A: The galvanized steel cable offers superior cut resistance and durability when the lifeline may contact edges or harsh environments, typical of construction sites.
Q: What does the load-indicating swivel snap hook tell the user?
A: After a fall event, the swivel snap hook changes visually to indicate deployment; this helps ensure the device is removed from service and inspected before reuse.
Q: How should I inspect the SRL before each use?
A: Confirm the cable is free of broken strands or kinks, the housing shows no damage or cracks, the carabiner locks properly, the snap hook gate functions correctly, and any load-indication trigger remains inactive.
