- Extends the harness dorsal D-ring by 18 inches, providing easier over-the-shoulder reach for quick connection of lanyards and self-retracting lifelines (SRLs)
- Constructed with heavy-duty 1/4 inch galvanized steel cable to offer superior resistance against cuts, abrasion, and harsh environmental conditions
- Features a high-strength plated alloy steel O-ring and a snap hook with a 3,600 lb gate strength for a secure and reliable connection
- Engineered with steel thimbles and swaged aluminum ferrules at termination points to maintain structural integrity under load
- Rated for a minimum static strength of 5,000 lbs, supporting an OSHA user capacity of up to 425 lbs including tools and equipment
- Fully compliant with ANSI Z359.11-2021 and Z359.3-2019, as well as OSHA 1926.502 and 1910.66 regulations for fall protection systems
Price: $83.00
Item #FALLTECH-8366C
Write a review!
Description

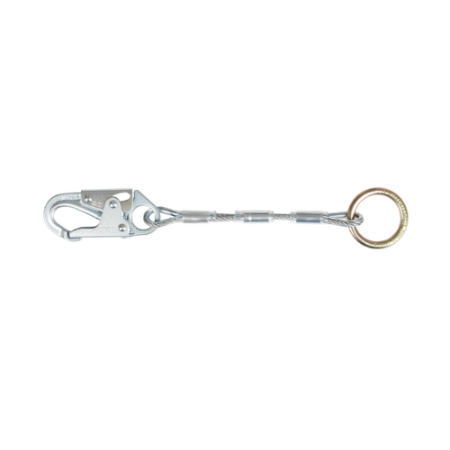

This extender adds 18 inches of overhead or over-the-shoulder reach to the harness dorsal D-ring, facilitating easier attachment of lanyards or self-retracting lifelines. It uses a heavy-duty ¼″ galvanized steel cable, alloy steel O-ring, and an alloy steel snap hook with steel thimbles and swaged aluminum ferrules for secure connection. Use of the extender will increase the user’s total fall-clearance distance when paired with an energy-absorbing lanyard.
Key features:
-
Provides improved over-the-shoulder reach for easier connection of lanyards or SRLs
-
Constructed with heavy-duty ¼″ galvanized steel cable for strength and durability
-
Includes alloy steel O-ring and steel snap hook with steel thimbles and swaged aluminum ferrules
-
Designed to integrate with energy-absorbing lanyards and increase total fall-clearance distance
Specifications
- SKU: 8366C
-
Length: 18″
-
Cable: ¼″ galvanized steel; minimum static strength 5,000 lb
-
O-ring: plated alloy steel; minimum static strength 5,000 lb
-
Connector (snap hook): plated alloy steel; minimum static strength 5,000 lb with 3,600 lb gate strength
-
Static strength: minimum 5,000 lb
-
ANSI user capacity: 130 to 310 lb max
-
OSHA user capacity: 130 to 425 lb max
-
Compliance: ANSI Z359.11-2021 and Z359.3-2019; OSHA 1926.502 and 1910.66
FAQs
Q: How does using an extender affect fall clearance?
A: Using the extender adds its full length to the overall connection point reach, thereby increasing the total fall-clearance distance when used with a fall-arrest system.
Q: Is the cable construction more durable than webbing extenders?
A: Yes — the ¼″ galvanized steel cable is built to resist cutting, abrasion and corrosion compared to webbing in high-wear conditions.
Q: Can this extender be used with both lanyards and self-retracting lifelines (SRLs)?
A: Yes — the extender is designed to provide improved reach for connecting either SRLs or standard lanyards to the harness dorsal D-ring.
Q: How should I inspect this extender before use?
A: Examine the cable for kinks, corrosion or broken strands; check the thimbles and ferrules for deformation; verify the O-ring and snap hook for gate operation and integrity.
