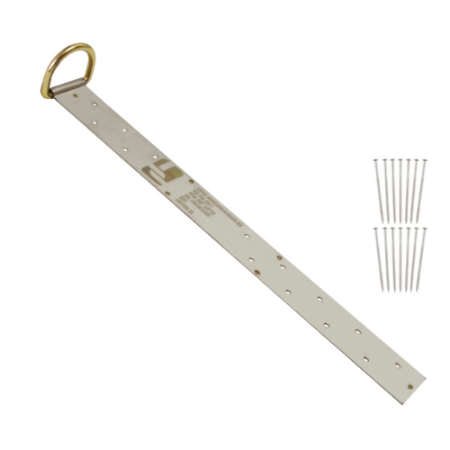

- Features a 17 inch stainless steel nailing plate designed for permanent, low-profile installation under roof ridge materials
- Equipped with a 2 inch connecting D-ring that remains exposed and accessible for quick fall-protection equipment attachment
- Includes 16D stainless steel nails specifically rated for secure installation into wood roof structures and ridge members
- Constructed from high-quality stainless steel to provide superior corrosion resistance and long-term durability in all weather conditions
- Engineered to meet a minimum static strength of 5,000 lbs, supporting an OSHA user capacity of up to 425 lbs for reliable fall arrest
- Fully compliant with OSHA 1926.502 regulations, making it a dependable choice for permanent residential or commercial wood-frame roofing
Price: $32.00
Item #FALLTECH-7434
Write a review!
Description
This roof anchor is designed for permanent installation under wood roof ridge materials and leaves the D-ring exposed for fall-protection equipment attachment. It features a stainless-steel body with a 17″ nailing surface and a 2″ connecting D-ring. The package includes 16D stainless-steel nails for installation to wood structures, and the anchor meets OSHA 1926.502 regulations for fall-arrest anchorage.
Key features:
-
17″ stainless-steel nailing plate designed for installation under roof ridges
-
2″ connecting D-ring for fall-protection equipment attachment
-
Stainless nails (16D) included for wood-structure installation
-
Single D-ring configuration engineered for permanent wood roof use
Specifications
- SKU: 7434
-
Nailing plate size: 17″
-
Connecting D-ring: 2″ size
-
Fasteners included: 16D stainless-steel nails
-
Static strength: 5,000 lb minimum
-
ANSI user capacity: 130 to 310 lb max
-
OSHA user capacity: 130 to 425 lb max
-
Compliance: Meets OSHA 1926.502
FAQs
Q: Is this anchor compatible with all roof pitches?
A: Yes — it is designed for installation under ridge caps on wood roofs regardless of pitch, so long as structural conditions are suitable.
Q: What should I check on the D-ring after installation?
A: Verify that the D-ring is exposed and accessible, that the mounting plate is secured and that the nails are fully seated into the wood structure.
Q: Does the anchor work for more than one user at a time?
A: This anchor is rated for single-user tie-off in accordance with user capacity specifications; not for simultaneous multi-user connections unless specified in system design.
Q: When should this anchor be replaced or removed from service?
A: Replace it if the plate shows deformation, corrosion, cracks, or if the fasteners loosen or the wood substrate shows deterioration.
