Small Case-50 / Large Case-200
Was: $6.08
Price: $6.08Sale: $6.08
Item #S-5-N-MINI
Write a review!
Description

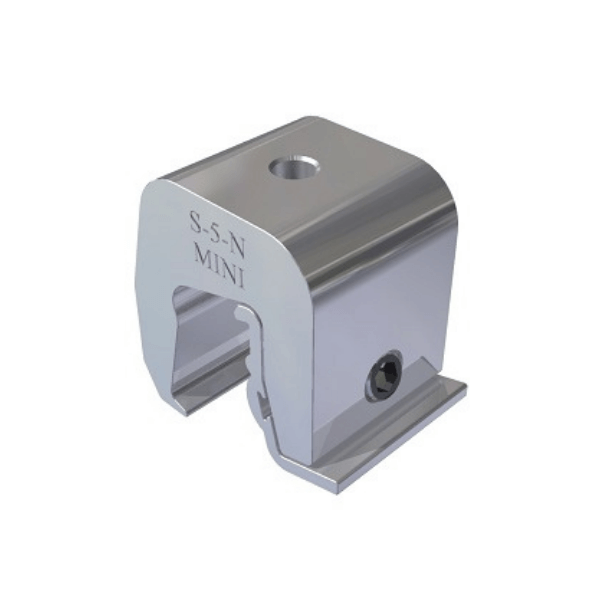

The S-5! N Mini Clamp is a non-penetrating clamp designed for 1" nail strip standing seam metal roof profiles. It is shorter than the standard S-5-N and features one angled T-30 Torx round-point setscrew rather than two, plus an insert to ensure superior fit without damaging the seam. Ideal for lighter duty rooftop accessories.
Key Features:
• Fits 1" nail strip profiles with base rib dimension ≤ 0.82” (20 mm)
• One angled setscrew for easier installation and a superior fit via insert
• Non-penetrating, preserves roof integrity
• Economical solution for lighter duty attachments such as solar, signs, or conduit
• Hardware includes stainless steel fasteners and setscrew tip provided
Specifications
• Type: N Mini Clamp (shorter version of standard N clamp)
• Material: Structural aluminum (6061-T6) body; stainless steel hardware (300 series)
• Setscrew: One T-30 Torx round-point setscrew; setscrew tip included in package
• Compatibility: 1" nail strip standing seam profiles (e.g., Easy Lock, Skyline, Meridian, FF100)
• Rib Base Limit: ≤ 0.82 inches (20 mm)
• Use: Light to medium duty rooftop attachments; not for snow retention systems (like ColorGard or SnoRail)
• Includes: Clamp body, one setscrew, stainless hardware, insert, Torx tip
How To
- Select a 1" nail strip seam profile with base rib dimension ≤ 0.82".
-
Place the insert inside the clamp body aligned to the seam’s base.
-
Position the clamp over the seam at the desired location.
-
Tighten the single angled setscrew with T-30 Torx bit to specified tension.
-
Mount accessory component using the provided bolt hole (if included) or separately sourced hardware.
-
Verify alignment and re-check setscrew tension after initial compression of seam material.
FAQs
Q: What roof profiles does the S-5! N Mini work with?
A: It works with 1" nail strip metal roof profiles such as Taylor Metals Easy Lock, Skyline, Meridian, New Tech FF100, and similar profiles.
Q: How many setscrews does the N Mini clamp have?
A: It has one angled T-30 Torx round-point setscrew, unlike the standard N clamp which has two.
Q: Can N Mini be used with snow retention systems like ColorGard or SnoRail?
A: No. The N Mini clamp is not compatible with S-5! snow retention systems.
Q: What materials are used in the N Mini clamp?
A: It uses a body made of 6061-T6 structural aluminum and 300-series stainless steel hardware, including the setscrew.
