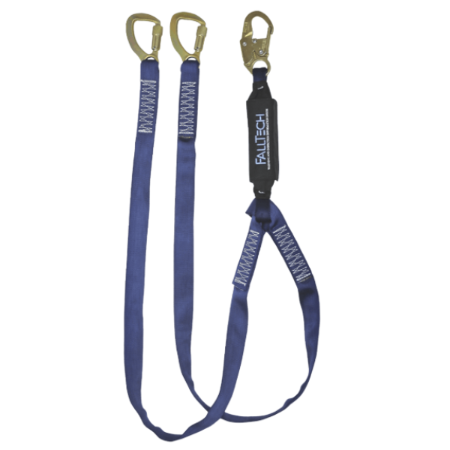

FallTech 8241Y - WrapTech® Energy Absorbing Lanyard, Double-leg w/ Steel 5k Tie-back Carabiners

This double-leg lanyard is designed for full 100% tie-off, featuring heavy-duty jacketed double-layer polyester webbing to resist abrasion in tie-back applications. It includes an internal energy absorber housed in a ViewPack cover with inspection window and WrapPack label protection. The wrap-around anchorage connection eliminates the need for a separate anchor point, simplifying setup while maintaining compliance. Steel snap hooks attach to the harness while 5,000 lb gate strength carabiners facilitate tie-back anchorage.

Key features:

• Jacketed double-layer polyester webbing designed for tie-back abrasion resistance
• Internal energy absorber with ViewPack cover and inspection window for easy inspection
• Wrap-around anchorage connection enabling tie-back without a separate anchor point
• Double-leg configuration with steel snap hook and 5,000 lb gate strength tie-back carabiners for 100% tie-off

• SKU: 8241Y
• Product type: WrapTech® Energy Absorbing Lanyard, Double-leg
• Webbing material: polyester; minimum 5,000 lb static strength
• Snap hook connector: plated alloy steel; minimum 5,000 lb static strength with 3,600 lb gate strength
• Carabiner connector: plated alloy steel; minimum 5,000 lb static strength with 5,000 lb gate strength
• Static strength: 5,000 lb minimum
• ANSI lanyard class: 6′ free fall
• Maximum arrest distance: 48 inches
• Average arrest force: 900 lb
• Maximum arrest force: 1,800 lb
• User capacity (ANSI / OSHA): 130 to 310 lb maximum
• Webbing construction: jacketed double-layer polyester webbing with tie-back abrasion resistance
• Energy absorber: tear-away polyester absorber designed to limit fall forces to 900 lb or less
• Leg type: double-leg configuration for 100% tie-off
• Application note: Wrap-around anchorage connection eliminates separate anchor point requirement

Q: Can I wrap the anchorage carabiner around a structural member instead of using a separate anchor?
A: Yes, the wrap-around anchorage feature allows the carabiner to tie back onto itself around a structure, eliminating a separate anchor point.

Q: What inspection feature is built into this lanyard?
A: The energy absorber is enclosed in a ViewPack cover with an inspection window and WrapPack label protection to allow visual inspection of the internal absorber.

Q: When should I replace this lanyard after deployment?
A: The absorber is tear-away; if it shows signs of deployment or the webbing/ connectors are damaged, the lanyard must be removed from service immediately.

Q: How does the double-leg configuration support movement while remaining tied off?
A: The double-leg design allows one leg to remain connected while the other is repositioned, maintaining continuous tie-off during transitions.
