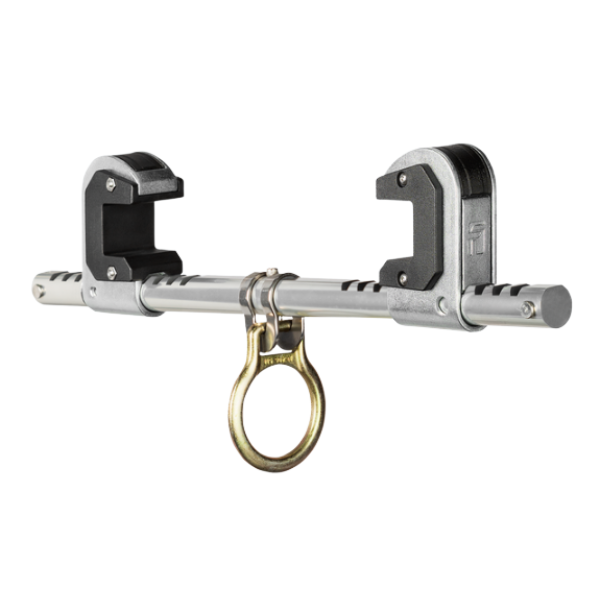

FallTech 7530 - Trailing Beam Anchor w/ Dual-clamp Adjustment, 14"

This beam anchor is designed for temporary mobile use on horizontal I-beams. It features an aluminum crossbar and steel clamping jaws with nylon slider pads to enable smooth trailing movement as the user moves along the beam. The dual-clamp adjustment fits beam flanges from 3″ to 14″ wide and up to 1-¼″ thick, and the alloy steel D-ring remains centered on the crossbar to maintain proper lifeline alignment.

Key features:

• Aluminum crossbar plus steel clamping jaws equipped with nylon slider pads
• Dual adjusting jaws with concealed locking latches for secure fit on beam flanges
• Fits beam flanges from 3″ to 14″ wide and up to 1-¼″ thick
• Designed for temporary mobile use on horizontal I-beams

• SKU: 7530
• Material: aluminum crossbar and plated alloy steel jaws
• Static strength: minimum 5,000 lb
• Fits beam flanges: 3″ to 14″ wide and up to 1-¼″ thick
• D-ring: plated alloy steel D-ring remains centered on crossbar
• ANSI user capacity: 130 to 310 lb maximum
• OSHA user capacity: 130 to 425 lb maximum
• Compliance: ANSI Z359.18-2017; OSHA 1926.502 & 1910.66

Q: How secure is the attachment to the beam as I move along it?
A: The dual-clamp jaws with nylon slider pads allow the anchor to trail smoothly along the beam while keeping the D-ring centered and properly aligned for user connection.

Q: Will this anchor fit a narrow or unusually thick I-beam flange?
A: It fits flanges from 3″ to 14″ wide and up to 1-¼″ thick; beams outside those dimensions would require a different anchor model.

Q: What should I check before using the anchor on a beam?
A: Confirm the beam flange is within the specified size range, inspect that the jaws lock properly, ensure the slider pads move freely, and verify the D-ring is centered and undamaged.

Q: Can this anchor be permanently welded to a beam or used as a fixed anchor point?
A: No; it is designed for temporary mobile use and should be removed when not needed rather than permanently attached.
