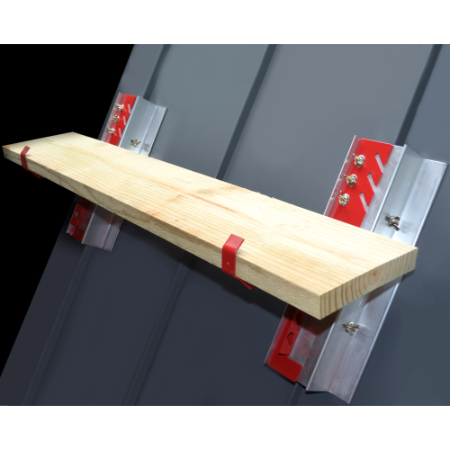

The SSRA2 Roof Jack Adapters are part of the Standing Seam Roof Anchor system. They allow you to mount 2 in. x 10 in. walk-boards to over 500 standing seam roof panels. The SSRA2 adapter plate simply mounts on top of a Standing Seam Roof Anchor (SSRA1, available separately) that has had the D-ring removed. Constructed of solid 6061-T6 aluminum with stainless steel hardware. The adjustable height stabilizer legs provide a steady mounting bracket on hundreds of different seams.
*Brackets should be mounted every 8' with one worker allowed per 8' of walk board. The angle of the jack is adjustable to fit roofs up to 12/12 pitch.*
Features and Benefits:
- The industry’s most universal fit anchor point, fits over 500 compatible seams
- Industry’s lightest walkboard bracket at only 13.5 lbs per bracket
- Adjustable height seam stabilizer legs for seams up to 3” tall.
- Industry’s only OSHA/ANSI 3rd party tested, universal fit component system for the roofing and solar industry.
- Sold in Pairs
