Price: $1,095.00
Item #SW-023-8091
Write a review!
Description

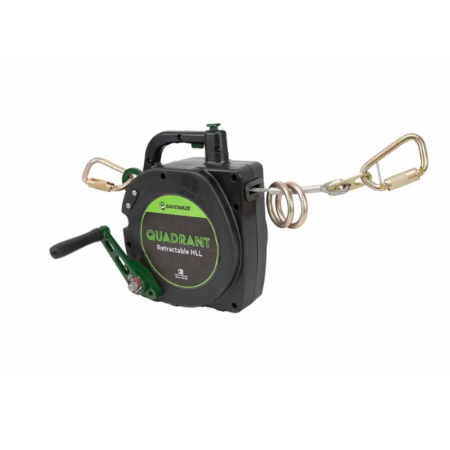

The SafeWaze Quadrant Retractable HLL (65 ft) is a portable horizontal lifeline system built for temporary fall protection of up to two users. Featuring galvanized steel cable housed in a compact polymer casing with a collapsible crank, this system supports rapid setup, smooth payout, and easy storage. Integrated O-rings reduce cable wear, and a built-in fall indicator enables visual confirmation of activation.
Specifications
- Product Series: Quadrant Retractable Horizontal Lifeline
-
Lifeline Length: 65 ft (maximum)
-
Materials:
-
¼″ galvanized steel cable
-
Steel and aluminum hardware
-
Nylon and glass-fiber reinforced polymer housing
-
Mounting/Connection Points: Captive eye and carabiner attachment points
-
User Capacity: ANSI-rated for up to two users (130–310 lb each)
-
Structural Strength: Minimum Breaking Strength of 5,000 lb; Peak Dynamic Pullout Load: 2,500 lb
-
Total Weight: Approximately 24.2 lb
-
Special Features:
-
Collapsible crank handle for tensioning and easy transport
-
Built-in fall indicator to signal when lifeline has engaged
-
Free-wheel and dual-action tension release mechanism
-
O-ring cable isolators to extend service life of cable
-
Ergonomic carrying handle
-
Adapter included for drill-assisted rewind
-
Standards Compliance: OSHA 1926.502, 1910.140, 1910.66 (ANSI does not apply)
