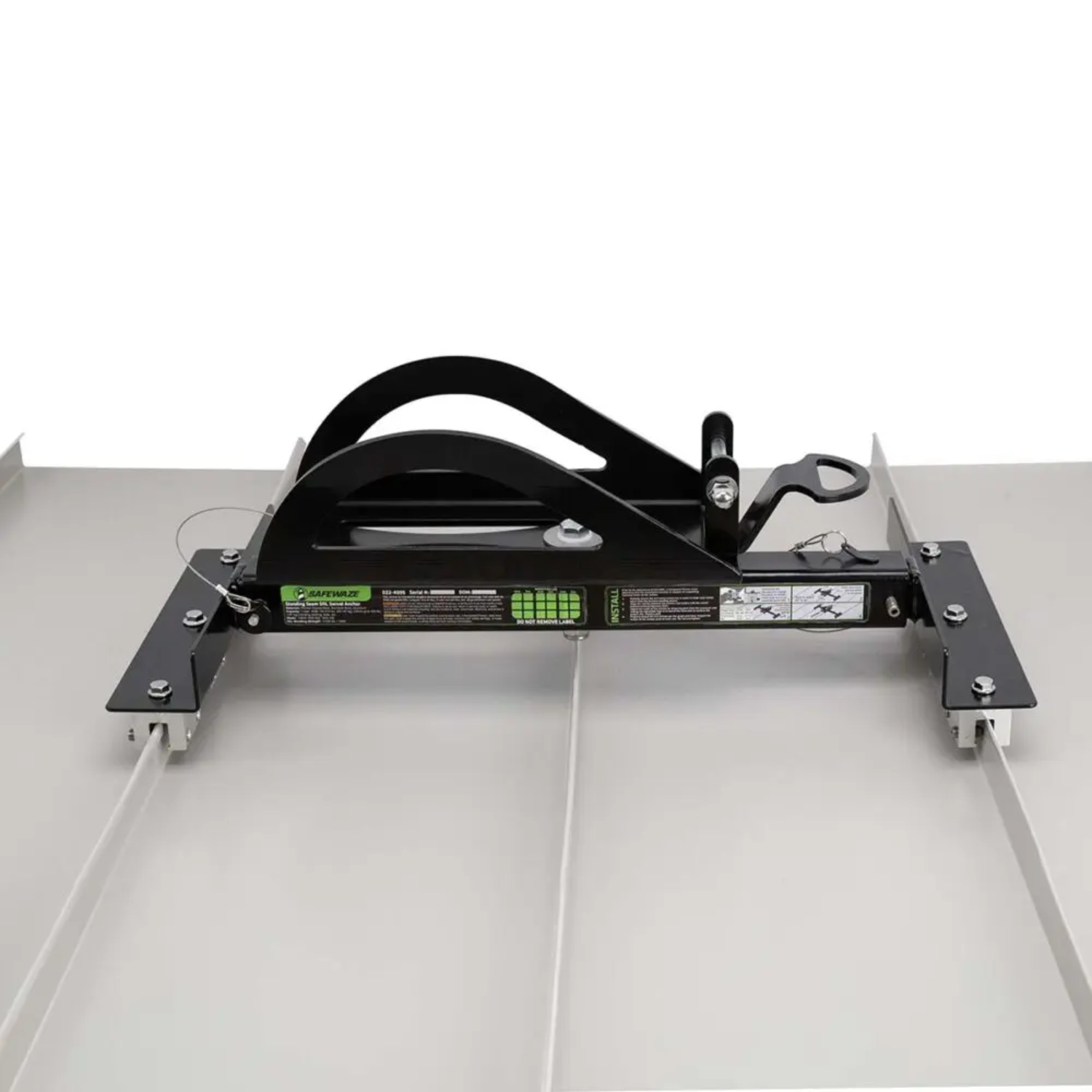

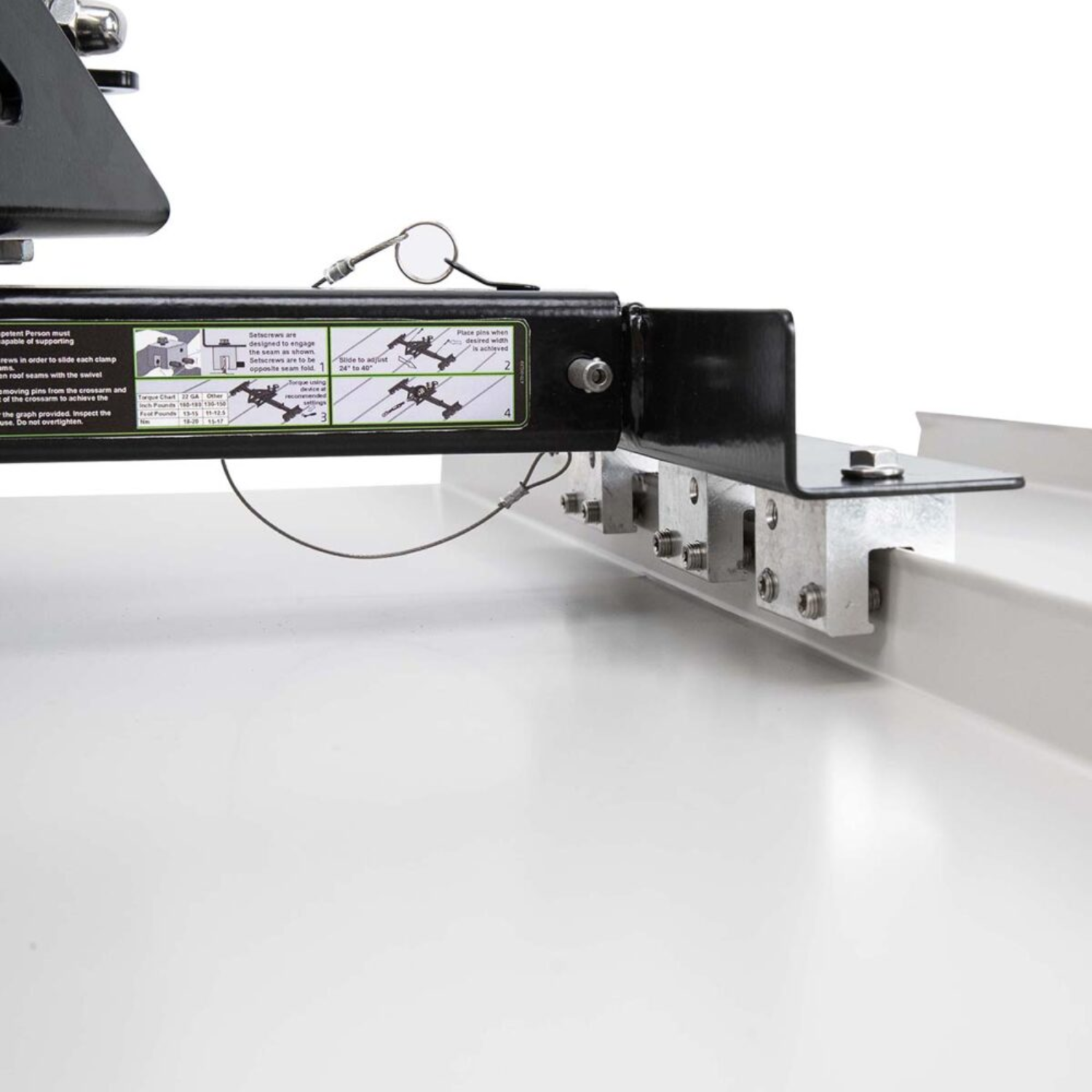

The Safewaze 023-4095 Standing Seam SRL Swivel Anchor is a reusable, non-penetrating roof anchor designed for flat or pitched standing seam roofs with a minimum roof gauge of 26. It attaches to a variety of standing seam profiles using six S-5-U clamps and provides a stable fall protection connection point without penetrating the roof panel.

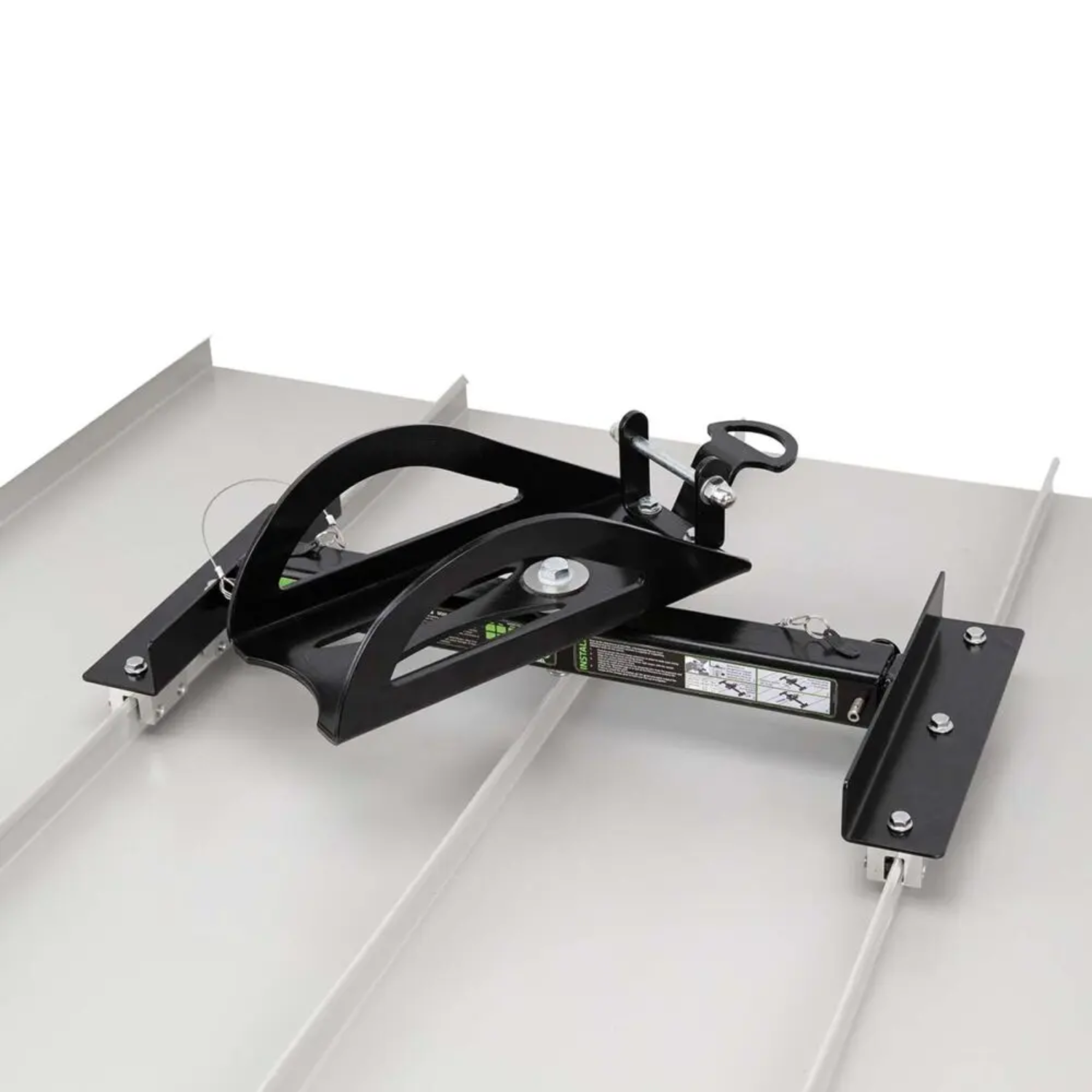

This anchor is built with an adjustable crossarm that spans 24" to 40" and locks with detent pins, allowing it to fit different seam spacing. The 360° swivel base helps improve user mobility while working around the anchor point, and the smart cradle design accommodates most SRL sizes.
The 023-4095 includes an anchor post for quick SRL attachment without disassembly. It also includes a D-ring connection point for energy absorbing lanyards, VLLs, and HLLs. As a single-point anchor, the system is rated for 1 user maximum. For HLL applications, it is rated for 2 users maximum per span when configured properly.
The anchor has a minimum breaking strength of 3,600 lbs. and is OSHA compliant to 1926.502, 1910.140, and 1910.66. The anchor is constructed from powder coated steel and stainless steel, with aluminum S-5-U clamps.
Key features:
-
Reusable non-penetrating standing seam roof anchor
-
Designed for flat or pitched standing seam roofs
-
Minimum roof gauge: 26
-
Equipped with six S-5-U clamps
-
Attaches to a variety of standing seam profiles
-
Adjustable crossarm spans 24" to 40"
-

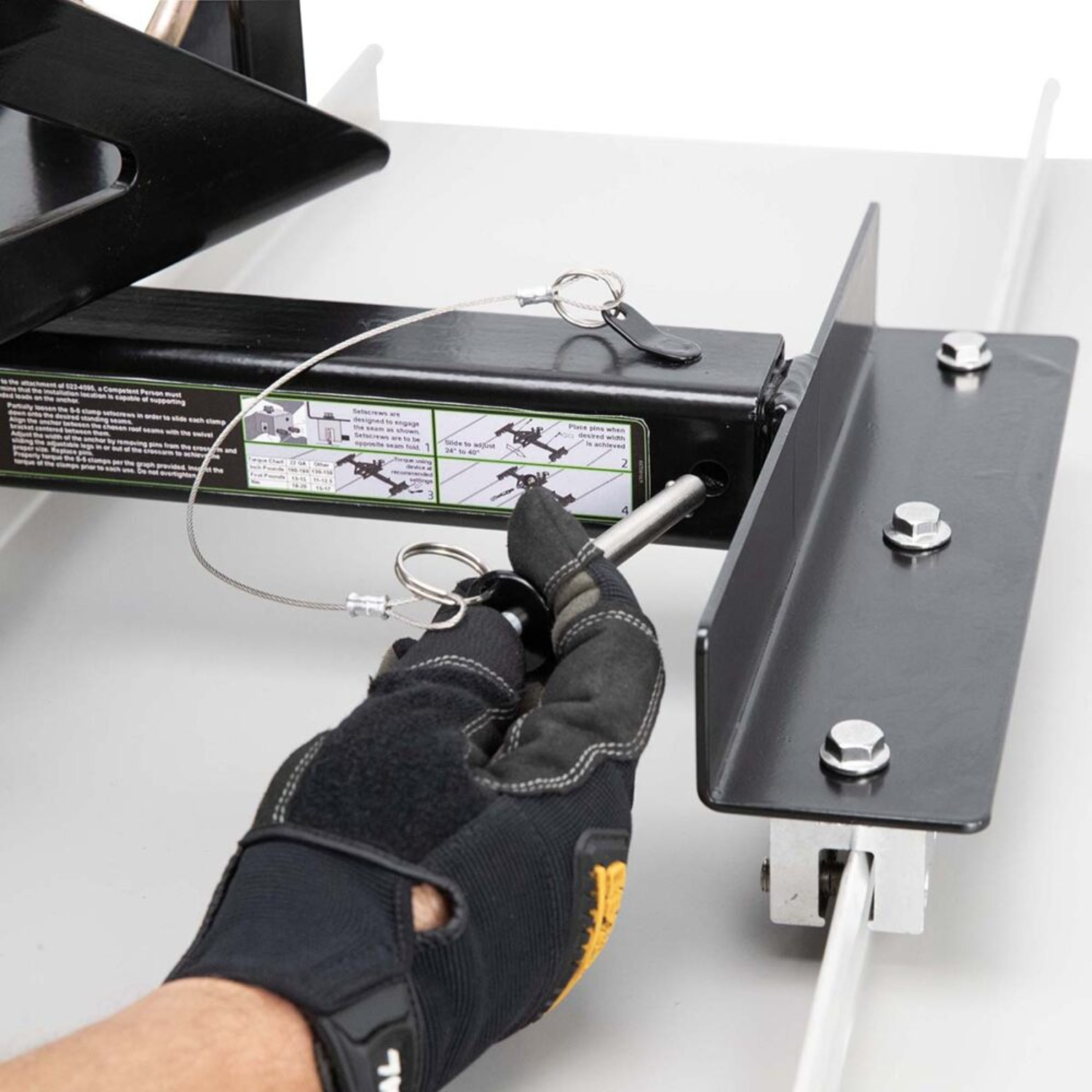

Crossarm locks with detent pins
-
360° swivel base helps increase user mobility
-
Smart cradle design accommodates most SRL sizes
-

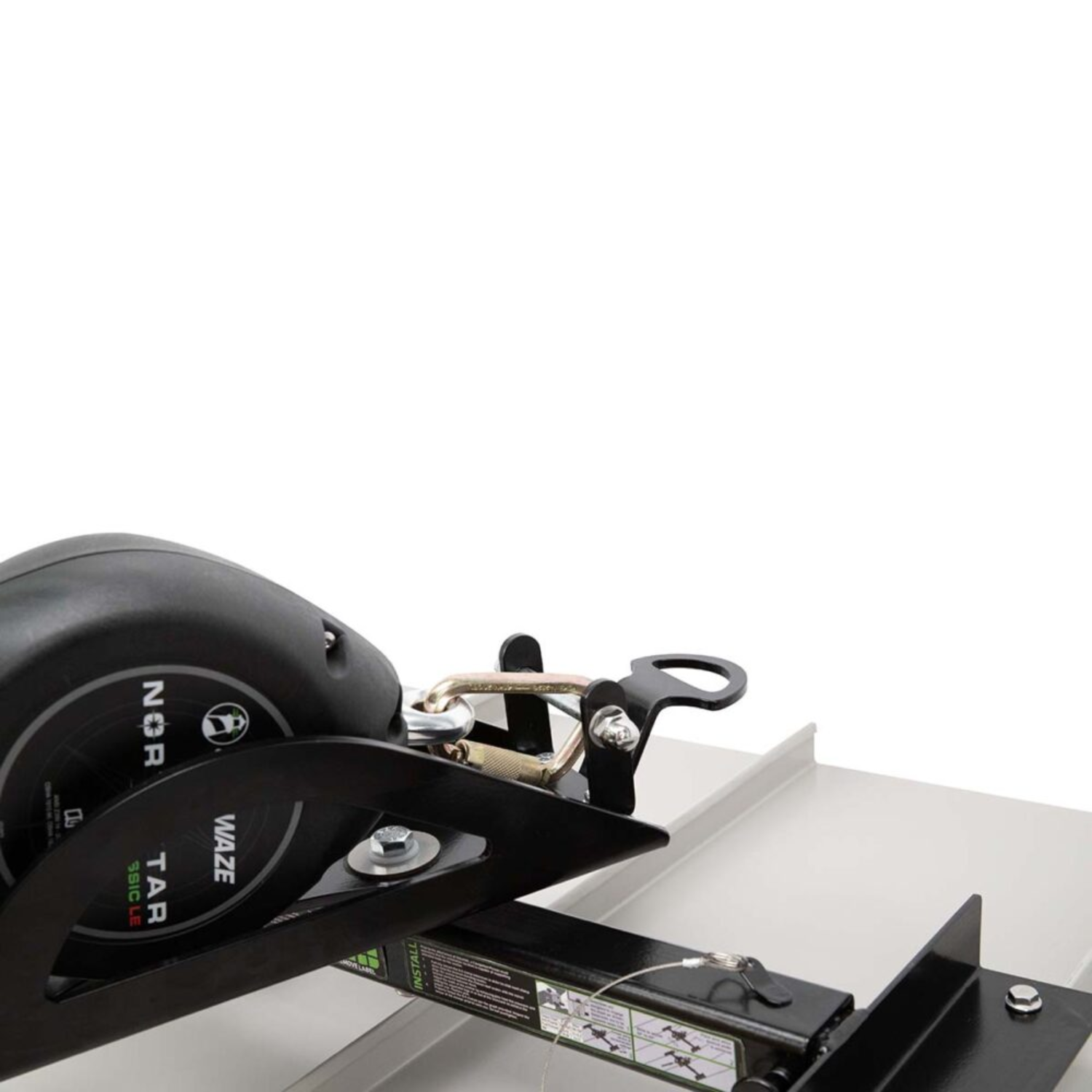

Anchor post allows quick SRL attachment with no disassembly required
-

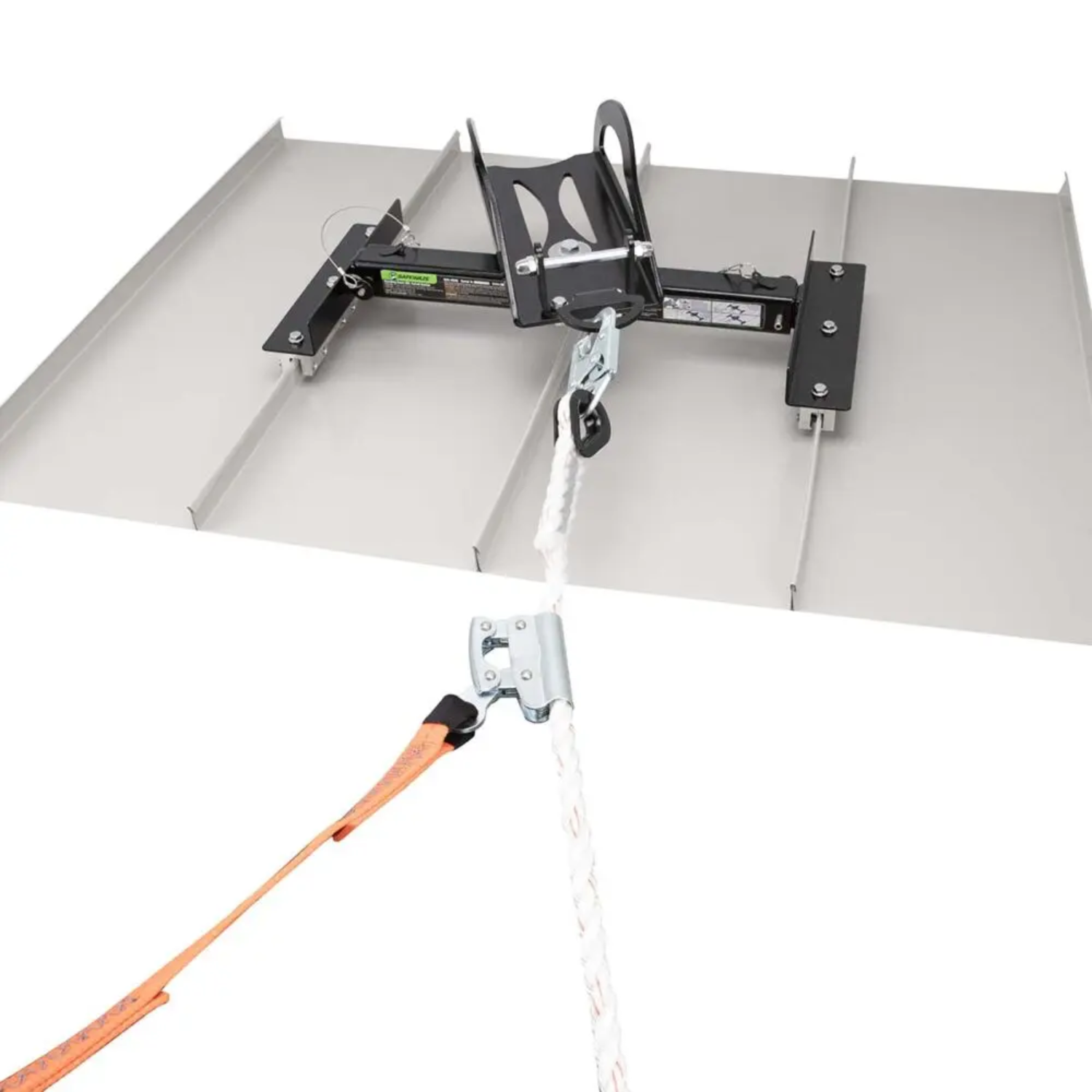

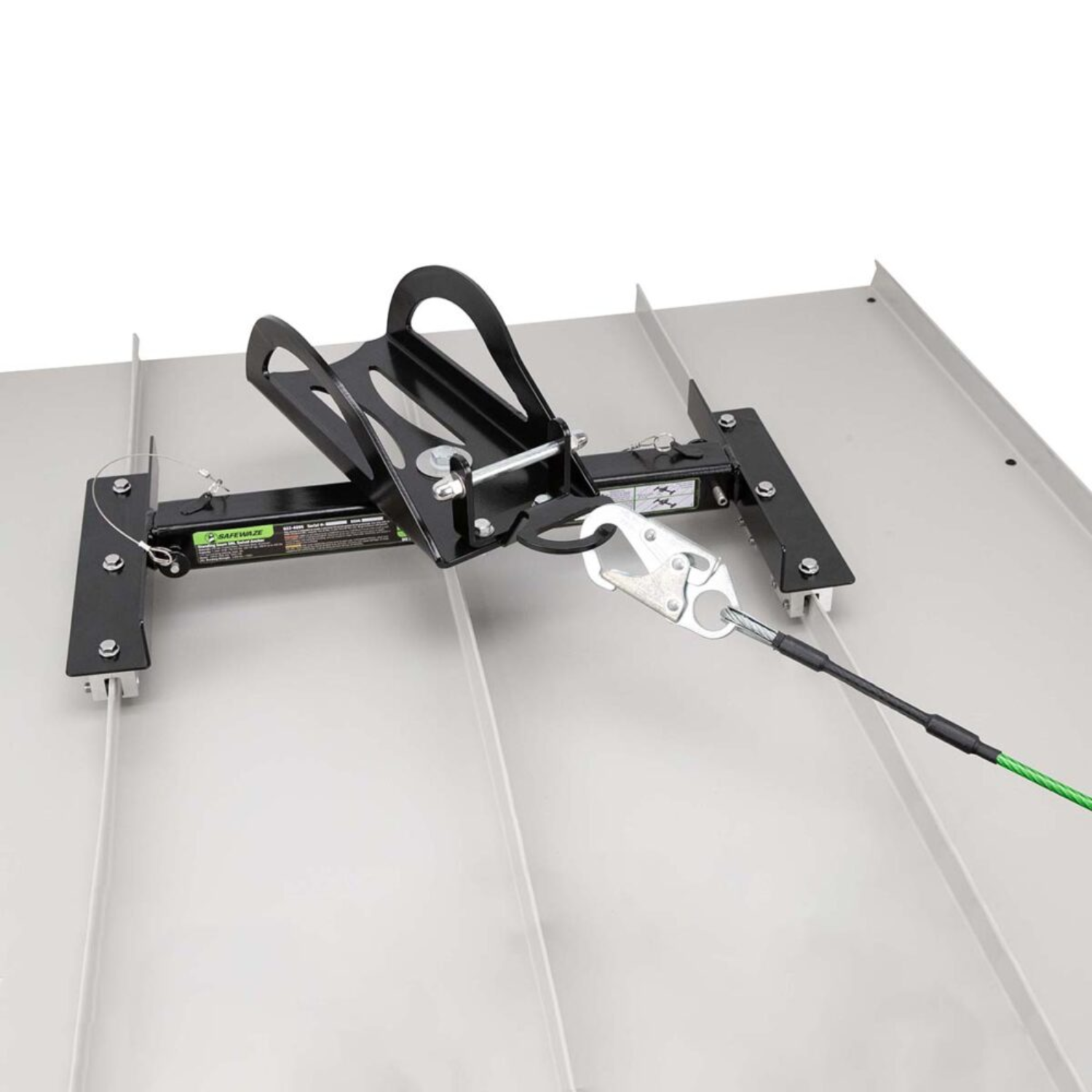

D-ring connection point for energy absorbing lanyards, VLLs, and HLLs
-
System capacity: 1 user maximum as a single-point anchor
-
HLL capacity: 2 users maximum per span
-
Minimum breaking strength of 3,600 lbs. / 16 kN
-
OSHA compliant to 1926.502, 1910.140, and 1910.66
