Small Case-100 / Large Case-150
Price: $5.71
Item #S-5-SOLARFOOT
Write a review!
Description

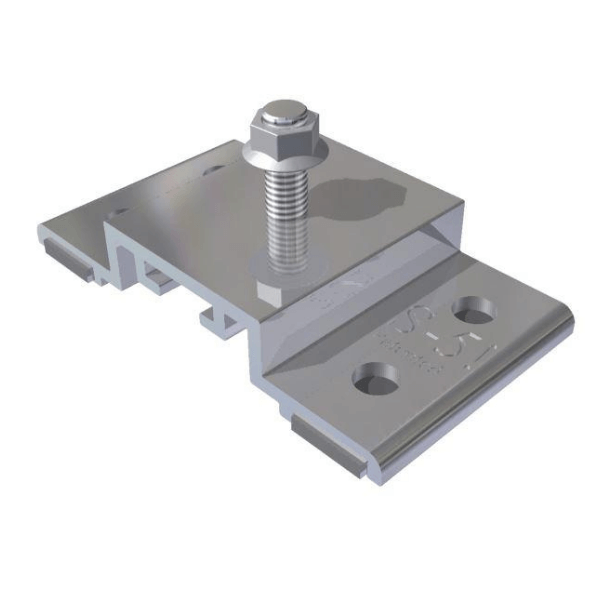

The S-5! SolarFoot provides a strong, versatile base for mounting solar PV systems on exposed-fastened metal roofs. Each foot includes a factory-applied EPDM rubber gasket that ensures a watertight seal, eliminating the need for additional sealant. Made from high-strength aluminum with stainless steel hardware, the SolarFoot delivers long-term corrosion resistance. It is designed with pre-drilled holes to accept standard fasteners and rails, making installation simple and reliable. Sold in kits, each SolarFoot includes four self-piercing fasteners and is compatible with most solar mounting rails and systems.
Key Features:
-
Designed for exposed-fastened metal roof panels
-
Provides a watertight attachment with factory-applied EPDM gasket
-
Includes four self-piercing fasteners per foot
-
Pre-drilled holes for easy rail attachment
-
High-strength aluminum body with stainless hardware
-
Corrosion-resistant and long-lasting performance
Specifications
- Gasket: Factory-applied EPDM rubber
- Dimensions: 3.0" × 3.0" × 1.25" (base plate footprint)
- Weight: ~7 oz per foot
- Included hardware: Four stainless-capped self-piercing fasteners per foot
- Roof compatibility: Exposed-fastened metal panels
- Material: High-strength aluminum with stainless steel hardware
How To
- Mark the SolarFoot placement on exposed-fastened panel ribs.
-
Clean the surface to ensure proper gasket sealing.
-
Place SolarFoot with EPDM gasket flush against the panel.
-
Drive the four provided self-piercing fasteners through the pre-drilled holes into the roof panel ribs.
-
Verify the base is seated evenly and gasket fully compressed for watertight performance.
-
Attach solar mounting rails or brackets to the SolarFoot using appropriate bolts.
-
Inspect all fasteners and connections for secure installation.
FAQs
Q: What roof type is the SolarFoot designed for?
A: It is designed for exposed-fastened trapezoidal or corrugated metal roof panels.
Q: Does the SolarFoot require extra sealant?
A: No, the factory-applied EPDM gasket provides a watertight seal without additional sealant.
Q: What hardware is included with each SolarFoot?
A: Each foot includes four stainless-capped self-piercing fasteners.
Q: Is the SolarFoot compatible with standard solar rails?
A: Yes, its pre-drilled holes are designed to work with most solar mounting rail systems.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
NGI Torque Wrench for S-5
Recommended by S-5 for proper installation
Price: $399.95
Availability: In Stock
Usually ships within 1-2 Business Days
The S-5! TW NGI Torque Wrench is the recommended installation tool for properly tightening the setscrews on S-5! clamps. It is precision-calibrated to achieve the manufacturer’s required torque specification, ensuring consistent performance, proper holding strength, and roof warranty compliance. This tool is compact, durable, and easy to use in the field. By using the NGI Torque Wrench, installers can guarantee that clamps are neither under- nor over-tightened, which protects both the clamp...
