S-5 RibBracket III

The S-5! RibBracket III is the tallest model in the RibBracket family, designed to provide even greater clearance for attaching solar, snow retention, and utility mounts on trapezoidal and corrugated ribbed metal roofs. It features a factory-applied EPDM rubber gasket for long-lasting waterproof performance and slotted top holes for flexible hardware alignment. Made from high-strength aluminum with stainless steel hardware, RibBracket III ensures durability, non-corrosive performance, and long-term service life. This bracket is an ideal choice when additional standoff height is needed to accommodate larger hardware or improve airflow beneath mounted components.

Key Features:

• Tallest profile in the RibBracket family for maximum clearance

• Designed for trapezoidal and corrugated ribbed metal roof panels

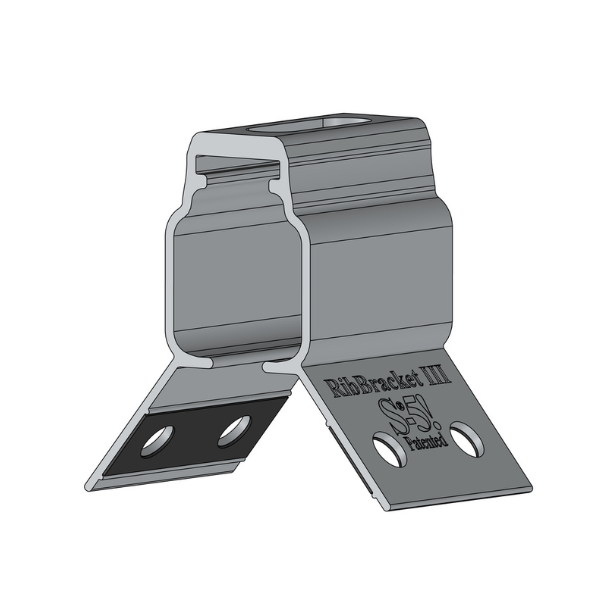

• Pre-applied EPDM gasket eliminates need for additional sealant

• Slotted top holes for hardware flexibility and easy alignment

• High-strength aluminum construction with stainless steel hardware

• Ideal for solar mounting, snow retention, and rooftop utilities

• Material: High-strength aluminum with stainless steel hardware

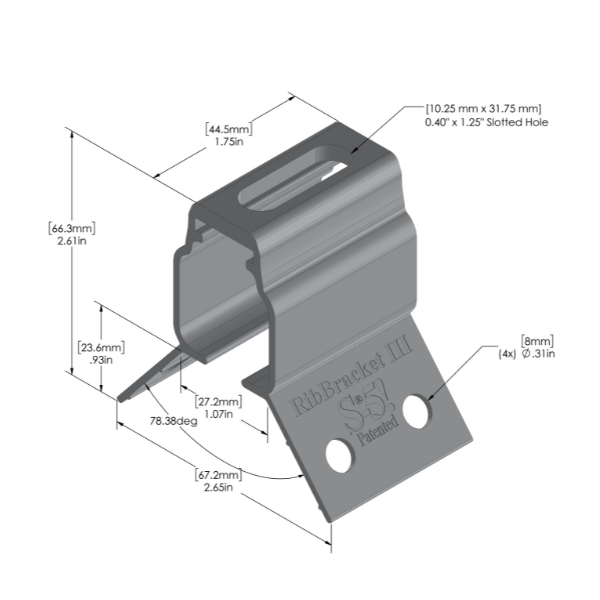

• Dimensions: Approx. 3.5" base length × 1.5" width × 3.0" height
• Weight: ~7.0 oz (198 g) per bracket
• Roof compatibility: Trapezoidal and corrugated ribbed metal panels
• Seal: Factory-applied EPDM rubber gasket for watertight performance

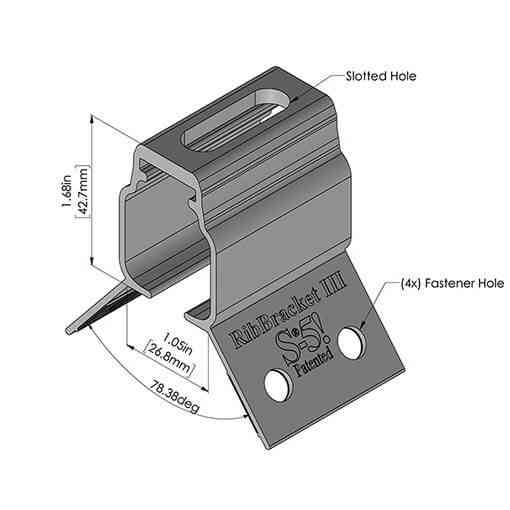

• Mounting holes: Slotted top holes for adaptable fastener placement
• Recommended applications: Solar panel mounting, snow guards, HVAC, cable runs, and other utilities

• Verify that the roof panel is trapezoidal or corrugated ribbed.

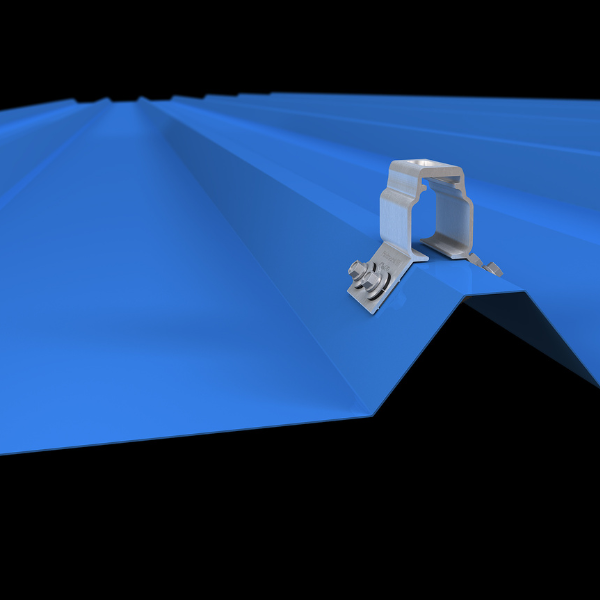

• Position the RibBracket III on the rib at the desired location.
• Ensure the EPDM gasket is properly seated against the panel for sealing.
• Secure the bracket by driving fasteners through the base into the rib.
• Use the slotted top holes to attach solar, snow retention, or utility hardware.
• Inspect to confirm tight, watertight, and properly aligned installation.

Q: What makes RibBracket III different from RibBracket I and II?
A: RibBracket III is the tallest version, offering maximum clearance and versatility.

Q: Is additional sealant required with RibBracket III?
A: No, it includes a pre-applied EPDM gasket for waterproofing.

Q: What kinds of loads can RibBracket III support?
A: It is suitable for solar modules, snow retention systems, HVAC, and utility attachments.

Q: What materials are used in RibBracket III?
A: The bracket is made from high-strength aluminum with stainless steel hardware for corrosion resistance.
