S-5-N 1.5

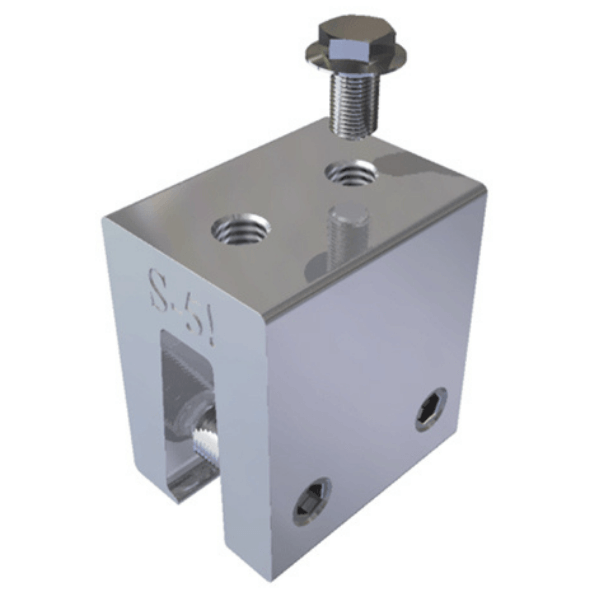

The S-5! N 1.5 Clamp is engineered for 1.5″ (38 mm) nail strip metal roof profiles. It combines a wider throat and an angled wall with a nose to engage triangular nail strip ribs securely—minimizing or eliminating the need for field crimping. With dual round-point T-30 Torx setscrews and an M8 top bolt, this non-penetrating clamp is ideal for supporting heavy-duty rooftop attachments like snow guards, solar mounts, and equipment supports while preserving roof warranties.

Key Features:

• Designed for use on 1.5″ (38 mm) nail strip metal roof profiles, including Tru Snap, NailStrip, NS 1.5, SMI 1.5 and similar profiles
• Wider throat design and angled wall with nose to engage profiles and reduce crimping effort
• Non-penetrating clamp that preserves roof panel integrity and coatings
• Two T-30 Torx round-point setscrews and one M8 bolt for strong, reliable attachment
• Suitable for heavy-duty applications such as snow retention, solar, and utility mounting

• Seam height: 1.5″ (38 mm)
• Compatible base-of-seam rib dimension: ≤ 0.50″ (12.7 mm)
• Number of setscrews: Two 3/8-24 × 0.80″ round-point setscrews
• Bolt: One M8-1.25 × 16 mm hex flange bolt
• Material: Structural aluminum body; 300-series stainless steel fasteners
• Dimensions (approximate clamp body): throat width ≈ 1.50″, height ≈ 2.25″, depth ≈ 2.18″, width ≈ 1.65″, nose reach ≈ 0.60″
• Includes: Clamp body, two setscrews, bolt, Torx bit tip

• Select roof seam profile that matches 1.5″ nail strip dimensions.
• Place the clamp over the seam so that the angled wall with nose engages the rib.
• Insert both setscrews and lightly tighten to seat the clamp body.
• Insert the M8 bolt into the top channel and align accessory as needed.
• Torque all fasteners (setscrews and bolt) to S-5! specified values.
• Inspect alignment and re-check torque after initial load

Q: What roof profiles is the N 1.5 clamp made for?
A: It is made for 1.5″ (38 mm) nail strip profiles, such as Tru Snap, NailStrip, NS 1.5, SMI 1.5, and similar profiles.

Q: Does the N 1.5 clamp penetrate the roof panel?
A: No. It uses round-point setscrews to grip the seam without penetrating or damaging the panel.

Q: What materials are used in the clamp and hardware?
A: The body is structural aluminum, and the fastening hardware (setscrews and bolt) is 300-series stainless steel.

Q: What accessories or loads is this clamp suited for?
A: Heavy-duty applications like snow retention, solar array mounting, and other rooftop accessories that require strong non-penetrating attachment.
