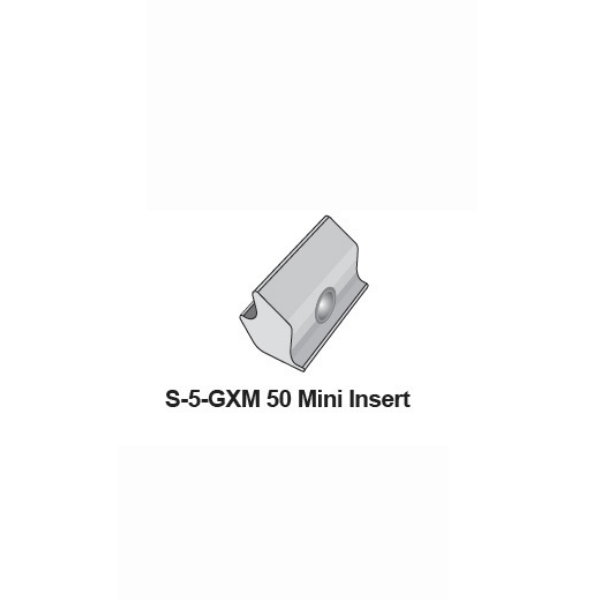

S-5 GXM 50 INSERT MINI

The S-5! GXM-50 Mini Insert is a profile-matched insert component for the S-5-K Grip Mini clamp. Designed for bulb snap-together metal roofing systems, it lets the clamp interface correctly with roof profiles such as KLIP-LOK Classic 700, KLIP-LOK 700 Hi-Strength, Stramit SpeedDeck Ultra, Fielders KingKlip 700, and other similar profiles. Using the correct GXM-50 insert reduces seam deformation and increases holding strength. The insert is sold separately; the clamp and hardware are not included in the kit.

Key Features:

• Dedicated to the S-5-K Grip Mini clamp
• Profiling for KLIP-LOK Classic 700, KLIP-LOK 700 Hi-Strength, Stramit SpeedDeck Ultra, Fielders KingKlip 700, and similar bulb snap-together profiles
• Improves clamp grip and reduces risk of seam damage with correct profile geometry
• Uses side-bolt attachment style of K Grip Mini clamp
• Sold as insert only; clamp and bolts not included

• Compatible clamp: S-5-K Grip Mini
• Supported profiles: KLIP-LOK Classic 700; KLIP-LOK 700 Hi-Strength; Stramit SpeedDeck Ultra; Fielders KingKlip 700; similar bulb snap-together seams
• Attachment style: side-bolts in the clamp (not setscrews)
• Included: single GXM-50 Mini Insert unit (no clamp or bolts)
• Warranty: Lifetime product defect warranty under S-5! terms

• Confirm your roof profile is one of those supported (as listed above).
• Remove any existing insert from the S-5-K Grip Mini clamp, if present.
• Place the GXM-50 Mini Insert into the clamp body, matching the roof rib geometry.
• Reassemble the clamp with side-bolts and position the clamp on the roof seam.
• Tighten side-bolts per manufacturer guidance.
• Inspect clamp for secure grip and verify that the roof seam shows no deformation.

Q: Which clamp is this insert for?
A: It is for the S-5-K Grip Mini clamp.

Q: What roof profiles does this insert support?
A: KLIP-LOK Classic 700; KLIP-LOK 700 Hi-Strength; Stramit SpeedDeck Ultra; Fielders KingKlip 700; and similar bulb snap-together profiles.

Q: Is the clamp or bolts included with the insert?
A: No. The insert is sold separately; clamp and bolts are separate.

Q: What is the warranty for the GXM-50 Mini Insert?
A: It has S-5!’s lifetime product defect warranty.
