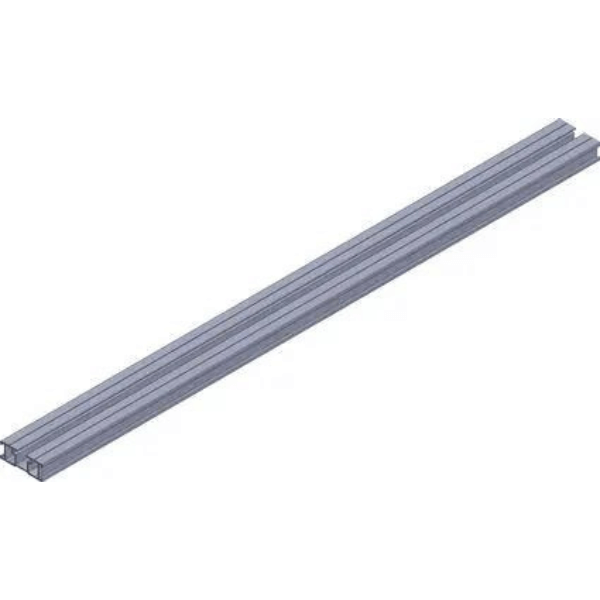

S-5 Gripper Strut GF-52

The S-5! Gripper Strut GF-52 is a 52-inch long utility mounting rail in the GRIPPERFIX system for metal roofs. Constructed from prime Series 6000 aluminum, it works only with CF Tabs (for standing seam or mini seam clamps) or EF Tabs (for exposed fastener panels). It accepts M8-1.5×16 mm hex bolts and M8 flange nuts (hardware sold separately) and provides a durable, non-penetrating mounting option for rooftop accessories.

Key Features:

• 52-inch length prime Series 6000 aluminum rail
• Designed for use with CF Tab or EF Tab accessories
• Accepts M8-1.5×16 mm hex bolts and M8 flange nuts (not included)
• Suitable for mounting on both standing seam and exposed fastener roofs
• Long, rigid rail minimizes number of fasteners needed per run

• Material: Prime Series 6000 aluminum alloy
• Length: 52-inch rail for GF-52 model
• Compatible tabs: CF Tab, EF Tab
• Bolt hardware: M8-1.5×16 mm hex bolts, M8 flange nuts required (sold separately)
• Includes: Single Gripper Strut GF-52 unit

• Select location on roof where mounting rail is needed.
• Choose CF Tab if using standing seam clamps or EF Tab for exposed fastener roof panels.
• Slide chosen tabs into the rail channel of the GF-52.
• Align rail over clamps or roof surface via the tabs.
• Secure tabs to roof/clamps using M8-1.5×16 mm hex bolts and M8 flange nuts.
• Mount your utilities, ensuring rail is level and hardware is tightened correctly.

Q: What roof panel types work with GF-52?
A: Both standing seam roofs (with CF Tabs and seam clamps) and exposed fastener roofs (with EF Tabs) are compatible.

Q: What hardware is needed to mount GF-52 with tabs?
A: M8-1.5×16 mm hex bolts and M8 flange nuts are required (tabs and hardware generally sold separately).

Q: How long is the GF-52 rail?
A: 52 inches.

Q: What material is GF-52 made from?
A: Prime Series 6000 aluminum alloy.
