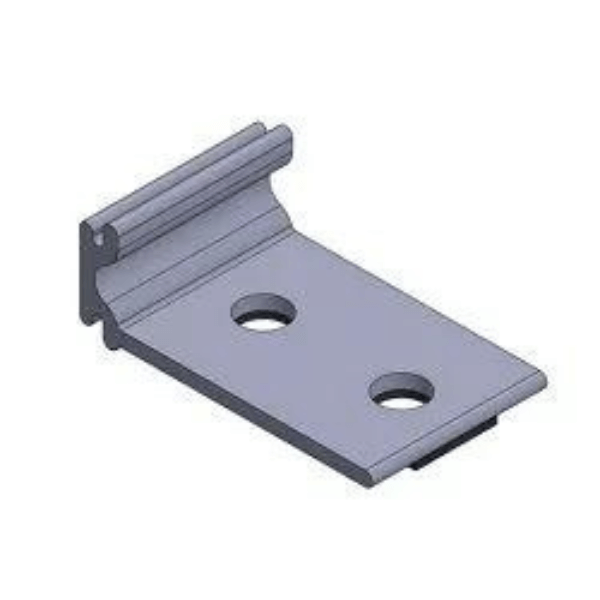

S-5 EF Tab for Gripper Strut

The S-5! EF Tab is designed for exposed fastener metal roof applications using the GRIPPERFIX utility mounting system. It interlocks with Gripper Strut GF-26 or GF-52 to allow versatile position adjustment for mounting rails. The EF Tab is manufactured from prime Series 6000 aluminum, includes a factory-applied EPDM rubber sealing gasket, and secures to the roof panel with two 1/4-14 × 1″ screws. It requires Gripper Strut hardware (sold separately).

Key Features:

• Interlocks with Gripper Strut GF-26 or GF-52 for exposed-fastener panels
• Prime Series 6000 aluminum construction for strength and corrosion resistance
• Factory-applied EPDM rubber gasket for sealing
• Mounts with two 1/4-14 × 1″ screws per Tab
• Allows virtually unlimited positioning of mounting rails along strut

• Material: Prime Series 6000 aluminum alloy
• Seal: EPDM rubber gasket factory applied
• Mounting screws: 1/4-14 × 1″ screws, two per EF Tab
• Compatible Struts: GF-26, GF-52
• Includes: Single EF Tab unit (no screws included in some kits depending on supplier)

• Select Gripper Strut GF-26 or GF-52 and install it on the roof panel or ribs.
• Slide EF Tab into the channel of the Gripper Strut at the desired position.
• Align EF Tab over the panel or rib where exposure mounting is needed.
• Secure EF Tab with two 1/4-14 × 1″ screws through the Tab into the roof panel.
• Ensure EPDM gasket is seated properly under Tab for weather seal.
• Mount the rest of GRIPPERFIX hardware (bolts, nuts, rails) as required; verify alignment.

Q: What roof types is the EF Tab used for?
A: Exposed fastener metal roof panels.

Q: What strut does the EF Tab interlock with?
A: Gripper Strut GF-26 or GF-52.

Q: How many screws are required per EF Tab?
A: Two 1/4-14 × 1″ screws.

Q: Is there a gasket used and what material?
A: Yes. EPDM rubber gasket is factory-applied for sealing.
