S-5 CF Tab for Gripper Strut

• The S-5! CF Tab is a component in the GRIPPERFIX utility mounting system used with standing seam metal roof panels. It interlocks into the Gripper Strut (GF-26 or GF-52) and secures to either regular S-5! seam clamps or mini seam clamps via M8 flange washer nuts and M8-1.5 ×16 mm flange bolts. The Tab is made from prime Series 6000 aluminum and features a slotted hole for position adjustment. It does not include the clamp hardware or bolts, which must be purchased separately.

  Key Features:

  • Series 6000 aluminum, lightweight and corrosion-resistant

  • Designed to interlock securely with Gripper Strut GF-26 or GF-52

  • Slotted hole allows for positional adjustment when bolting to clamps

  • Works with regular seam clamps or mini seam clamps in the S-5! lineup

  • Requires separate fasteners: M8 flange washer nuts and M8-1.5 × 16 mm bolts

• Material: Series 6000 aluminum alloy
• Compatible Strut Types: GF-26 and GF-52
• Mounting Hardware Required: M8 flange washer nuts; M8-1.5 × 16 mm flange washer bolts

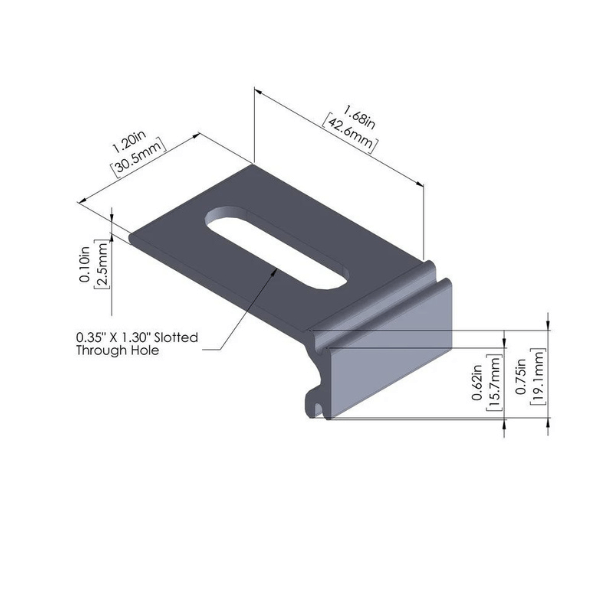

• Adjustment: Slotted bolt hole for positioning flexibility
• Includes: Single CF Tab unit (without clamps or bolts)

• Select the appropriate Gripper Strut (GF-26 or GF-52) and position on roof seams.
• Slide CF Tabs into the channel of the Gripper Strut, with the slotted hole oriented upward.
• Align each Tab over the S-5! seam clamp or mini clamp below.
• Insert M8-1.5 × 16 mm flange washer bolt through Tab and clamp mounting hole.
• Secure with M8 flange washer nut; ensure everything is tightened evenly.
• Check alignment and positional flexibility; adjust via slotted bolt hole if needed.

Q: Is the CF Tab sold with bolts and clamps?
A: No. It’s sold as the Tab only. Clamps (regular or mini) and bolts (M8 flange hardware) are required separately.

Q: Which strut lengths work with the CF Tab?
A: The CF Tab is compatible with the Gripper Strut GF-26 or GF-52.

Q: What material is the CF Tab made from?
A: It is made from Series 6000 aluminum, prime alloy.

Q: Why use the slotted hole design on the CF Tab?
A: The slot allows for positional adjustment so you can align with clamps and roof seams properly.
