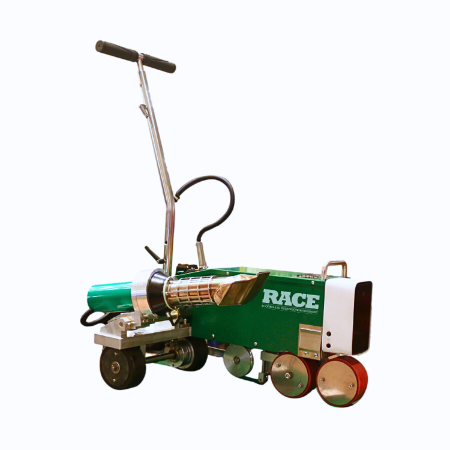

RACE - Automatic Heat Welder

The RACE Automatic Heat Welder is a robotic unit built for welding TPO and PVC membrane seams. It includes a 4200W heater and operates on 230V power. The unit features smart controls, counterweights for stability, and a design that adapts to narrow spaces for consistent seam welding.

Key features:

• 4200W heating element with 230V operation
• Guidance wheels and counterweights for seam stability
• Closed-loop control for temperature and speed with memory settings
• Brushless motor for durability
• Movable front wheels for accessing narrow areas

• Power: 4200 W
• Voltage: 230 V
• Motor type: Brushless
• Control: Microcomputer with closed-loop feedback and memory for settings
• Features: Anti-scald design, removable front wheels, pressure wheel self-balancing

• Position the welder at the start of the membrane overlap and ensure the path is clear and straight.
• Set the desired seam temperature and travel speed using the microcomputer control panel.
• Engage the front wheels and pressure roller so the unit advances automatically and applies hot air while pressing membranes together.
• Monitor seam quality periodically—check for consistent weld width, no lift or gaps, and adjust speed or temperature if necessary.
• Upon completion, shut off the machine, allow it to cool, inspect the nozzle and feed path, clean any residue, and store the unit in its carrying case.

Q: What is the power rating and voltage of the unit?
A: It uses a 4,200 W heating element and operates on 230 V.

Q: What type of motor and controls does it use?
A: It uses a brushless motor and a microcomputer with closed-loop feedback to regulate temperature and speed.

Q: Which membrane types is this machine suitable for?
A: It is designed for welding TPO and PVC thermoplastic membranes.

Q: What safety precautions should an operator follow when using this welder?
A: Ensure proper electrical grounding, avoid contact with hot surfaces, and follow manufacturer warnings about power voltage correspondence.

Q: How should I store and maintain this automatic heat welder?
A: After use, let it cool, clean the nozzle, inspect for damage, and store it in the carrying case in a dry location.
