OMG OlyBond500 / OlyFill Canister Kit Polyurethane Foam Adhesive

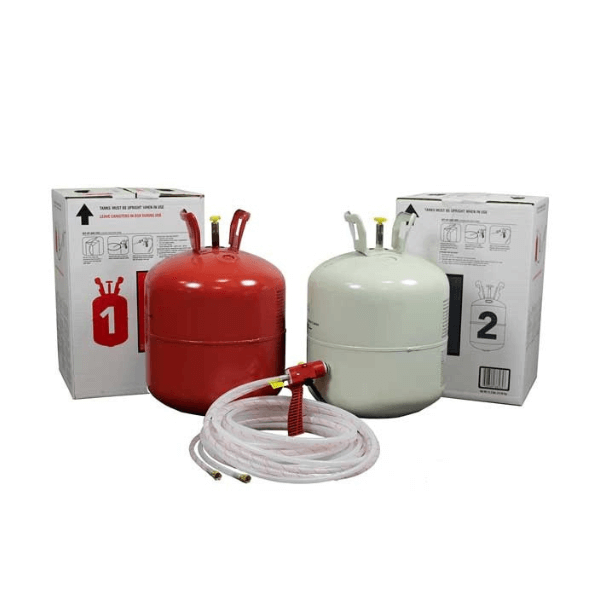

OB5001-TANK and OB5002-TANK are the pressurized Part 1 and Part 2 canisters for the OMG OlyBond500 two-component polyurethane foam adhesive system. These tanks allow contractors to apply adhesive without requiring a PaceCart, making them highly portable for a range of job sizes. The system dispenses semi-liquid beads that rise ¾- to 1-inch above the substrate and cure in 4-8 minutes depending on conditions. The canisters are designed for applications where speed, mobility, and convenience are essential.

Key Features

• pressurized canister format for direct application of Part 1 and Part 2 adhesive
• eliminates need for large dispensing carts or pumps
• bead rise of approximately ¾-inch to 1-inch
• fast chemical cure in about 4-8 minutes
• ultra-low VOC, odor-free formulation suitable for sensitive job sites

• item numbers: OB5001-TANK (Part 1), OB5002-TANK (Part 2)
• weight: OB5001-TANK ≈ 48 lbs; OB5002-TANK ≈ 44 lbs
• cure time: approximately 4-8 minutes depending on temperature and substrate
• adhesive rise: approximately ¾-inch to 1-inch above substrate
• application temperature range: 40 °F to 100 °F (4 °C to 38 °C) for regular grade
• packaging: individual pressurized tanks for each component (Part 1 and Part 2)
• usage: requires compatible hose and gun manifold for dispensing

• Ensure ambient and substrate temperatures are within recommended range.
• Connect OB5001-TANK and OB5002-TANK to the dispensing hose and gun manifold, ensuring correct part alignment.
• Test flow at nozzle tip to confirm proper 1:1 component mix.

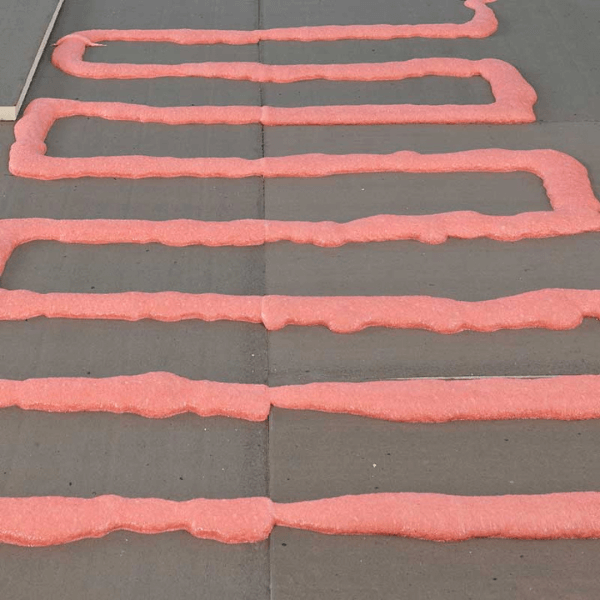

• Dispense adhesive beads spaced as required, allowing them to rise to ¾- to 1-inch above substrate.
• Place insulation boards onto beads before skinning occurs and walk boards in to ensure adhesion.
• Allow adhesive to cure 4-8 minutes before exposing to foot traffic or continuing work.

Q: What do OB5001-TANK and OB5002-TANK include?
A: They are the separate pressurized canisters for OlyBond500 Part 1 and Part 2 adhesive.

Q: What is the cure time for the canister adhesive?
A: Approximately 4 to 8 minutes depending on temperature and substrate.

Q: How high do adhesive beads rise when applied?
A: Beads rise about ¾-inch to 1-inch above substrate.

Q: What is the acceptable temperature range for application?
A: Use in conditions between 40 °F and 100 °F for regular grade.

Q: Are these canisters odor-free and low VOC?
A: Yes, the adhesive is odor-free and formulated to be ultra-low VOC.
