Price: $415.00
Item #POR-32141
Write a review!
Description

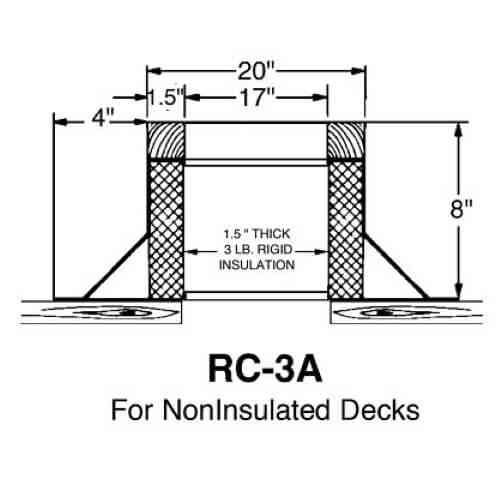

The Portals Plus 32141 Large RC-3A Canted Curb is designed for non-insulated roof decks where a canted (sloped) curb is required. The unit measures 20″ by 20″ by 8″ high and is fabricated of 18-gauge galvanized steel with an integral base plate, continuously welded corner seams, and a factory-installed wood nailer. It includes 1.5″ thick, 3 lb density rigid fiberglass insulation on all four sides. This curb is intended for use with Portals Plus pipe portal cover components.
Key features:
-
18-gauge galvanized steel construction with integral base plate and continuously welded corner seams.
-
Factory-installed wood nailer for secure attachment of flashings and equipment.
-
1.5″ thick rigid fiberglass insulation (3 lb/ft³ density) on all four sides.
-
20″ × 20″ footprint, 8″ height – designed for non-insulated decks.
Specifications
- SKU: 32141 (POR-32141)
-
Product type: Large RC-3A Canted Curb – 8″ High
-
Length: 20″
-
Width: 20″
-
Height: 8″
-
Construction: 18-gauge galvanized steel shell with integral base plate and welded recesses.
-
Insulation: 1.5″ thick rigid fiberglass board, 3 lb/ft³ density.
-
Application: Non-insulated deck where a sloped curb design is required.
FAQs
Q: What deck condition is this curb model intended for?
A: It is designed for non-insulated decks where a canted (sloped) curb wall is required (RC-3A style).
Q: What are the dimensions of this curb?
A: The curb measures 20″ in length, 20″ in width, and 8″ in height.
Q: Does this curb include any pipe portal cap or cover components?
A: No — this item is the structural curb only; covers and caps for the Portals Plus pipe portal system are sold separately.
Q: What purpose does the rigid fiberglass insulation serve in the curb?
A: The insulation helps mitigate condensation, improves thermal performance around the curb penetration, and supports long-term durability of the curb system.
