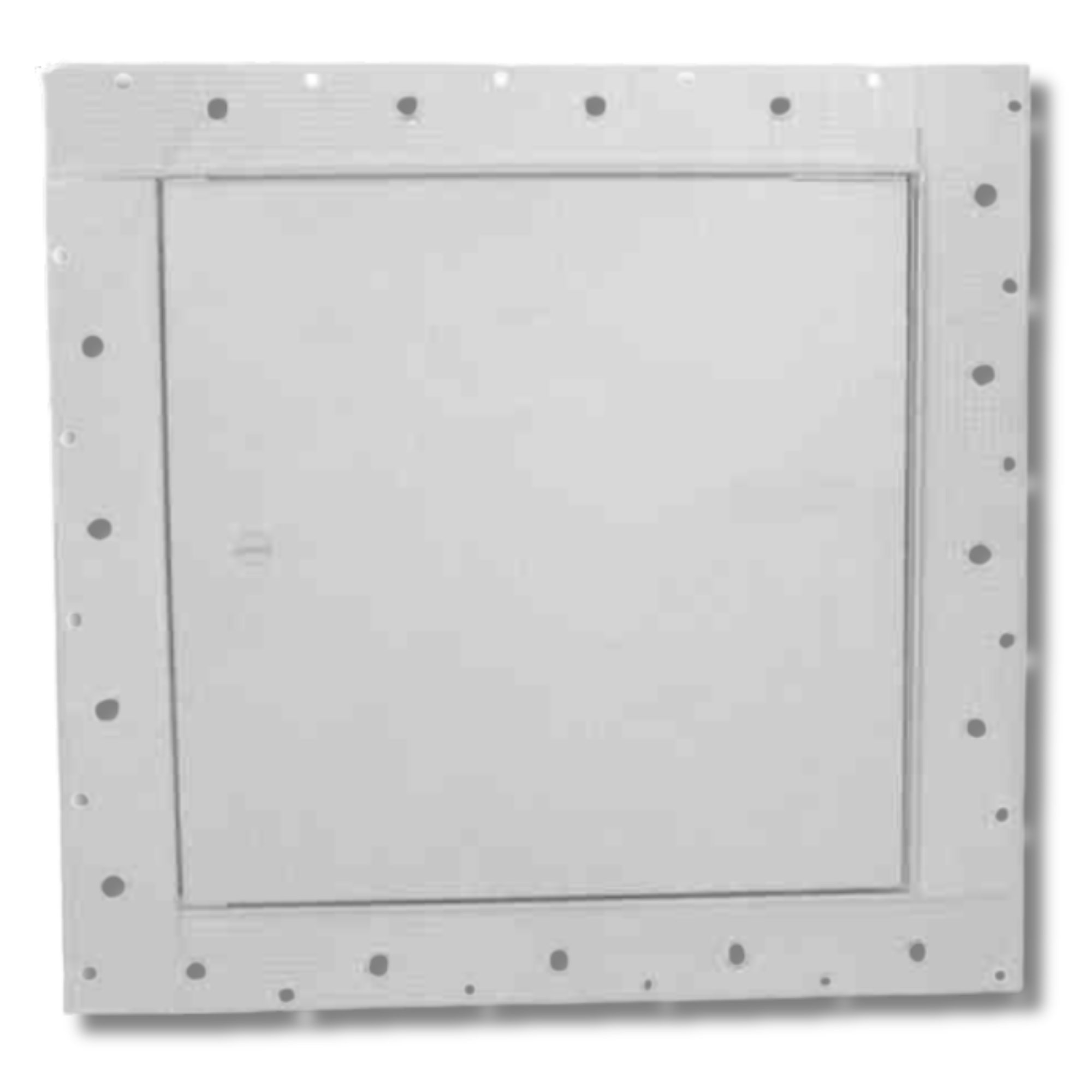

JL Industries TMW-0808CW 8 × 8 Fire-Rated Uninsulated Access Panel – 1½-Hour Ceiling, Concealed Flange, White Powder Coat

The JL Industries TMW-0808CW is a UL-classified 1½-hour fire-rated ceiling access panel designed for small openings where aesthetics are a priority. With a concealed flange, flush finish, and white powder coat, it blends seamlessly into ceiling systems while providing dependable fire protection.

Key Features

• UL “B-label” 1½-hour ceiling fire rating
• Compact 8″ × 8″ size for small access points
• Concealed flange for seamless appearance
• Cold-rolled steel frame and door
• White powder coat finish, paintable if desired

Model: TMW-0808CW (8″ × 8″)

Manufacturer: JL Industries / Activar Construction Products Group

Application: Ceiling fire-rated uninsulated access panel

Frame: 16-gauge cold-rolled steel with concealed flange

Door: 20-gauge cold-rolled steel

Insulation: None (uninsulated)

Hinge: Concealed continuous hinge, 180° swing

Closure: Spring-assisted cam latch, self-closing

Finish: White powder coat (paintable)

Clear Opening: approx. 8 ⅜″ × 8 ⅜″

Overall Frame Size: approx. 10″ × 10″

Depth: approx. 1½″

Fire Rating: UL “B-label” 1½-hour ceiling assemblies

UL Listings: ANSI/UL 10B, CAN/ULC-S104; ASTM E152 compliant

Weight: approx. 6 lb

Country of Origin: USA

• Confirm ceiling requires a UL 1½-hour fire-rated panel.
• Cut ceiling opening to approx. 8 ⅜″ × 8 ⅜″.
• Insert panel flush so the concealed flange blends with ceiling surface.
• Secure frame to ceiling framing using screws.
• Confirm hinge allows smooth 180° door swing.
• Test latch to ensure automatic self-closing.
• Paint panel if required to match ceiling finish.

Q: What is the fire rating of the TMW-0808CW?
A: It is UL-classified for 1½-hour ceiling fire-rated assemblies.

Q: Is this panel insulated?
A: No, the TMW-0808CW is uninsulated.

Q: What makes this different from TM-series panels?
A: The TMW-series features a concealed flange for a cleaner, flush finish.

Q: Can this be used in walls?
A: No, it is specifically designed for ceiling use.

Q: Does the panel close automatically?
A: Yes, the spring-assisted cam latch ensures self-closing functionality.
