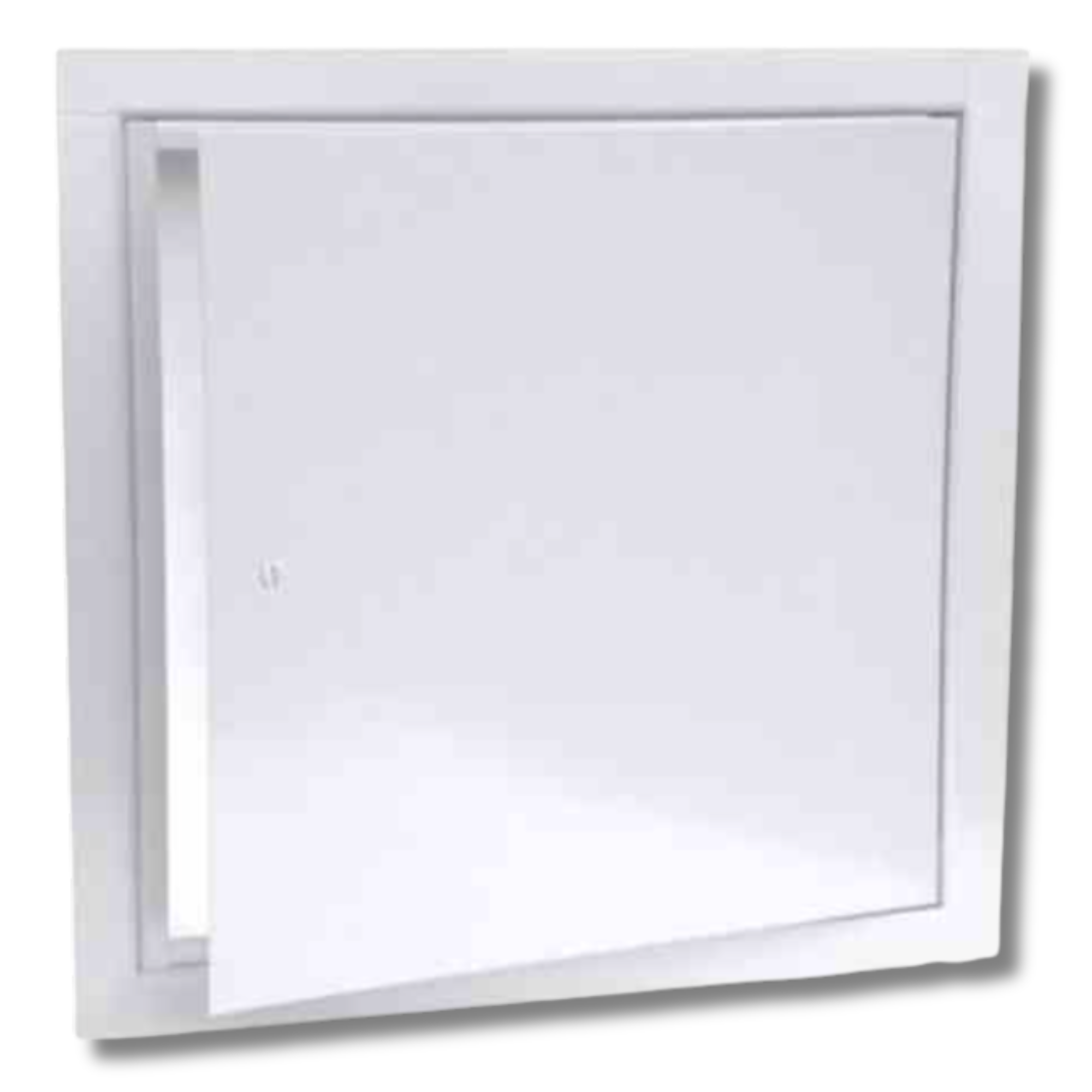

JL Industries TM-0812CW 8 × 12 Fire-Rated Uninsulated Access Panel – 1½-Hour Ceiling, White Powder Coat

The JL Industries TM-0812CW Fire Extinguisher Cabinet offers a compact yet durable storage solution for small extinguishers in wall assemblies. Featuring tubular steel trim with a 1″ flush flange, it delivers a clean architectural appearance. The door includes a clear acrylic glazing panel, allowing visibility of the extinguisher while ensuring protection. Constructed from cold-rolled steel and finished in white powder coat, the TM-0812CW is both practical and aesthetically suited for commercial and residential spaces.

Key Features

• Tubular trim design with flush, modern appearance
• Heavy-duty cold-rolled steel body with powder coat finish
• Clear acrylic glazing for visibility of extinguisher contents
• Compact 8″ × 12″ format for small extinguishers
• Simple recessed installation with included frame
• Made in the USA

Model: TM-0812CW (8″ × 12″)

Manufacturer: JL Industries / Activar Construction Products Group

Application: Wall (vertical assemblies)

Construction: Cold-rolled steel cabinet with tubular steel trim

Door: Cold-rolled steel with clear acrylic glazing

Hinge & Closure: Continuous hinge with latch mechanism

Trim Style: Tubular steel trim with flush installation

Finish: White powder coat; other colors available

Opening Size: Door – 8″ H × 12″ W; Opening – 8 3/8″ H × 12 3/8″ W; Overall – approx. 10″ × 14″ × 2½″

Glazing: Clear acrylic window

Made In: USA

Weight: Approx. 7 lb

• Verify wall construction and available space for 8″ × 12″ cabinet.
• Cut wall opening to manufacturer’s recommended dimensions.
• Insert cabinet into opening, ensuring trim flange is flush with wall.
• Secure frame with provided fasteners.
• Place extinguisher into cabinet body.
• Close and latch door; confirm extinguisher visibility through window.

Q: What extinguisher size fits in the TM-0812CW?
A: It is designed for compact extinguishers up to approximately 2.5–5 lb.

Q: What does CW indicate in the model number?
A: CW means clear window door with tubular trim.

Q: Is the TM-0812CW fire-rated?
A: No, TM series cabinets are architectural (non-rated) models.

Q: What is the glazing material?
A: Clear acrylic window.

Q: Can the TM-0812CW be surface-mounted?
A: No, it is designed for recessed mounting only.
