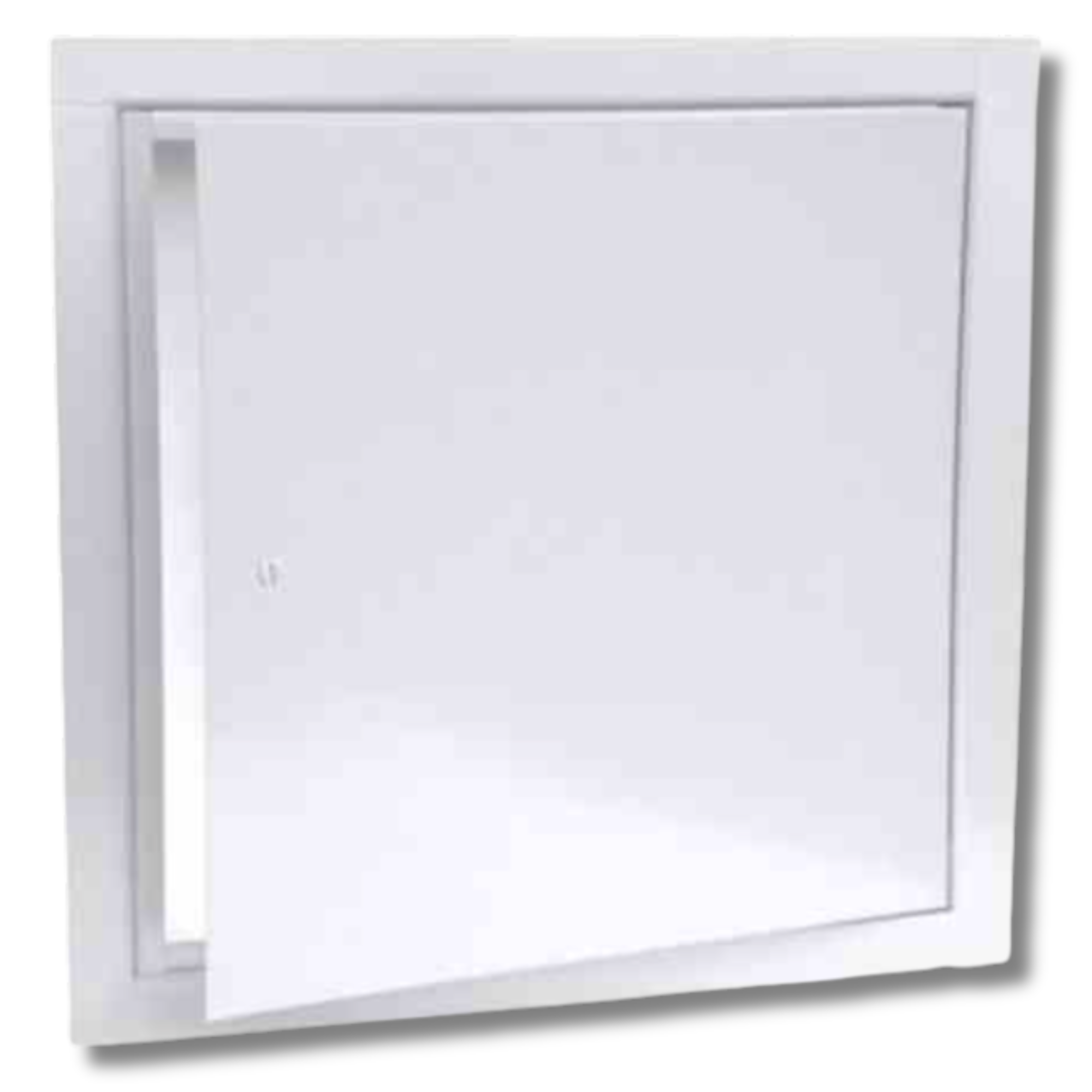

JL Industries TM-2430CW 24 × 30 Fire-Rated Uninsulated Access Panel – 1½-Hour Ceiling, White Powder Coat

The JL Industries TM-2430CW Fire-Rated Uninsulated Access Panel is UL-classified (“B-label”) for 1½-hour rated ceiling assemblies. It is constructed with a 16-gauge cold-rolled steel frame and a 20-gauge steel door, offering both strength and compliance. The panel features a continuous hinge for smooth 180° opening and a spring-assisted self-closing latch for added safety. Finished in durable white powder coat, the panel can also be field-painted to match surrounding ceiling surfaces.

Key Features

• UL “B-label” 1½-hour fire rating for ceilings
• 24″ × 30″ clear opening size
• Uninsulated design for lighter weight and easier handling
• 16-ga cold-rolled steel frame and 20-ga steel door
• Continuous hinge allows full 180° swing
• Spring-assisted self-closing latch for safety compliance
• 1″ paintable exposed flange for clean installation
• White powder coat finish, paintable if required
• Manufactured in the USA

Model: TM-2430CW (24″ × 30″)

Manufacturer: JL Industries / Activar Construction Products Group

Application: Ceiling access in fire-rated assemblies

Fire Rating: UL “B-label” 1½-hour classification

Frame: 16-gauge cold-rolled steel with 1″ flange

Door: 20-gauge cold-rolled steel

Insulation: None (uninsulated)

Hinge: Continuous, 180° swing

Closure: Spring-assisted, self-closing cam latch

Finish: White powder coat (paintable)

Clear Opening: Approx. 24¼″ × 30¼″

Outside Frame: Approx. 26″ × 32″

Depth: Approx. 1½″

UL Listings: ANSI/UL 10B; CAN/ULC-S104; ASTM E152 compliant

Weight: Approx. 20 lb

Country of Origin: USA

• Verify the ceiling assembly requires a 1½-hour rated access panel.
• Cut a ceiling opening sized for approx. 24¼″ × 30¼″ clear opening.
• Place the TM-2430CW panel into the opening until the flange sits flush.
• Secure the frame to structural members with screws.
• Check hinge swing to ensure full 180° opening.
• Test the spring latch for proper self-closing function.
• Paint panel if needed to blend with ceiling surface.

Q: What is the fire rating of the TM-2430CW?
A: It is UL “B-label” classified for 1½-hour fire-rated ceiling assemblies.

Q: Is the panel insulated?
A: No, this is an uninsulated model.

Q: Can it be installed in walls?
A: No, the TM-2430CW is designed specifically for ceiling use.

Q: What materials are used?
A: 16-ga cold-rolled steel frame and 20-ga cold-rolled steel door.

Q: Does it self-close?
A: Yes, the spring-assisted latch ensures automatic self-closing.
