- Features a twin-leg "Y" configuration that facilitates continuous 100% tie-off, ensuring workers remain anchored at all times while transitioning between structural points
- Engineered specifically for leading-edge environments and scenarios where anchorage is located at foot-level or up to 5 feet below the user’s dorsal D-ring
- Constructed with high-strength 3/16-inch galvanized steel cable lifelines, providing superior abrasion and cut resistance in demanding industrial conditions
- Specialized CTX housing design promotes optimal positioning on the user's back to enhance comfort and reduce device shifting during movement
- Integrated energy absorber cover features printed fall-clearance reference charts for immediate safety data access and quick calculations on the jobsite
- Available in three specialized anchorage connector configurations: mini rebar hooks (83208TP0), standard snap hooks (83208TP1), or full-size rebar hooks (83208TP3)
- Fully compliant with ANSI Z359.14-2021 Class 2 SRL-P and OSHA 1926.502/1910.66 regulations, supporting a user capacity of 130 to 310 lbs
Was: $436.50
Price: $436.50Sale: $436.50
Item #
Write a review!
Description

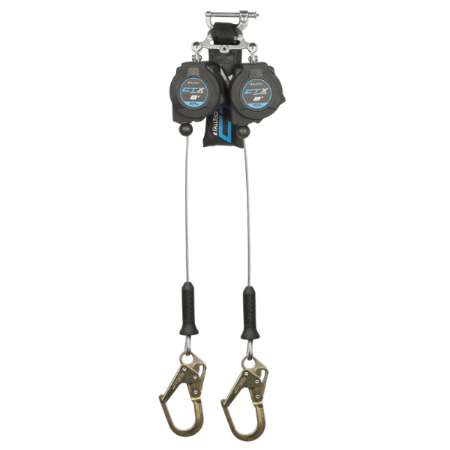

The FallTech CTX cable Class 2 leading edge twin-leg SRL-P series provides durable protection for demanding edge-exposed environments. Each model uses an 8 ft galvanized steel cable lifeline and a twin-leg design that supports 100 percent tie-off or dual-connection work. The CTX housing promotes better positioning on the back, while the energy absorber cover includes fall-clearance reference charts for quick use on the jobsite. These SRLs are engineered for leading edge conditions, below D-ring tie-off up to five feet, and are approved for workers ranging from 130 to 310 lb.
Key features:
-
Twin-leg cable SRL design allows continuous tie-off or dual anchorage connections
-
8 ft galvanized steel cable provides strong, dependable performance in demanding conditions
-
Class 2 SRL-P rating supports leading edge work and below D-ring tie-off up to five feet
-
Hook options across models allow the user to select the appropriate connection for rebar, snap, or mini rebar anchorage points
Specifications
- SKU: 83208TP0, 83208TP1, 83208TP3
-
Product type: CTX cable Class 2 leading edge twin-leg SRL-P
-
Lifeline: 8 ft galvanized steel cable, 3/16 inch
-
SRL classification: ANSI Z359.14-2021 Class 2 SRL-P
-
Leading edge rated: Yes
-
Average arrest force: 1,350 lb max
-
Maximum arrest force: 1,800 lb
-
Maximum arrest distance: 42 in
-
User capacity: 130–310 lb (ANSI/OSHA)
-
Hook types:
-

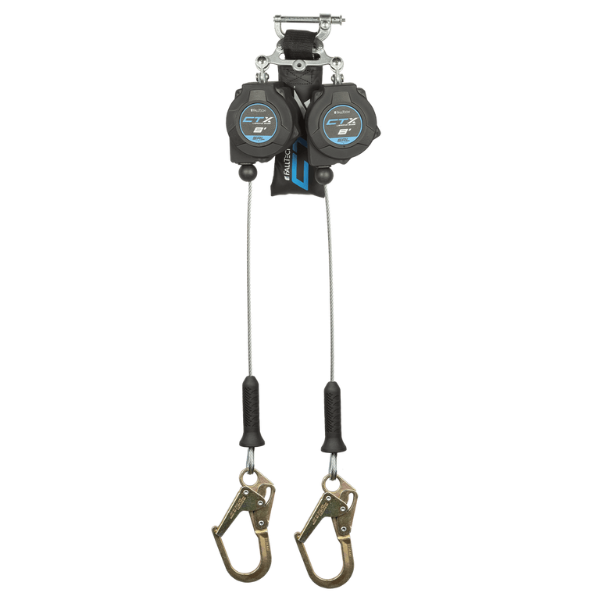

83208TP0: steel mini rebar hook
-

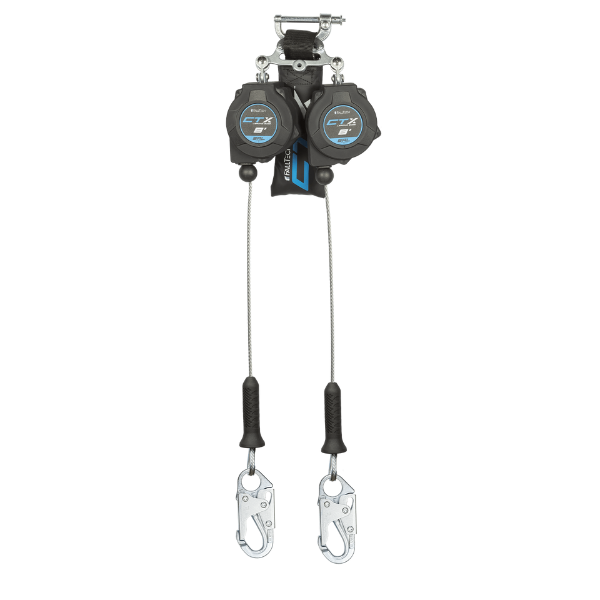

83208TP1: steel snap hook
-

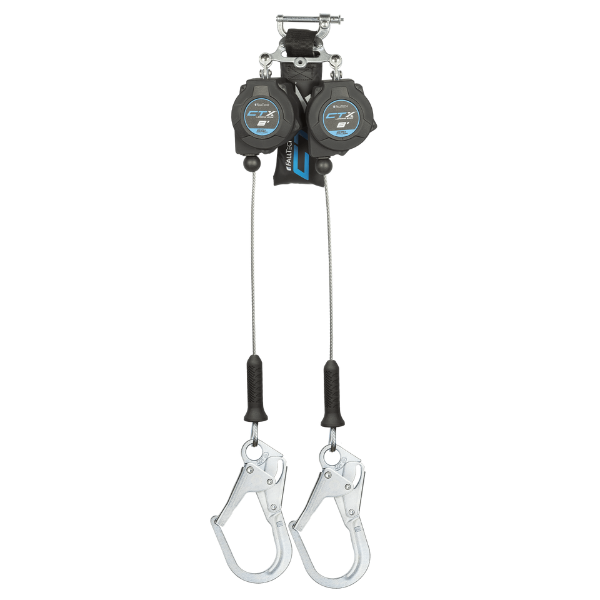

83208TP3: steel rebar hook
-
Standards compliance: OSHA 1926.502, OSHA 1910.66
FAQs
Q: What is the main difference between models 83208TP0, 83208TP1 and 83208TP3?
A: The difference is the type of connector: the 83208TP0 uses a mini rebar hook, the 83208TP1 uses a snap hook, and the 83208TP3 uses a full-size rebar hook.
Q: Are these SRLs suitable for leading edge applications?
A: Yes, all three models are rated as Class 2 SRL-P units and approved for leading edge hazards.
Q: What is the user weight capacity for this series?
A: Each model supports workers from 130 to 310 lb, including tools and equipment.
Q: What lifeline material do these SRLs use?
A: All three models use an 8 ft galvanized steel cable designed for strength and abrasion resistance.
