- Integrated system combines a hinged trailing fall arrester with a 3-foot shock absorbing lanyard to provide a complete vertical fall protection solution
- Features a convenient hinged body design that allows the device to be installed or removed at any point along a 5/8-inch synthetic rope lifeline
- Engineered with an integrated anti-panic function that prevents the user from accidentally overriding the locking mechanism during an uncontrolled descent
- Includes the patented ViewPack® energy absorber cover with a clear inspection window for rapid visual verification of the shock pack's integrity
- Constructed from high-strength plated alloy steel for maximum durability, featuring a trailing design that follows the user smoothly during ascent and descent
- Utilizes a polyester tear-away energy absorber designed to limit average arrest forces to 900 lbs and maximum arrest forces to 1,800 lbs
- Fully compliant with ANSI Z359.15-2014, CSA Z259.2.5-2017, and OSHA 1926.502, supporting a user capacity of 130 to 310 lbs
Price: $162.00
Item #FALLTECH-8388
Write a review!
Description

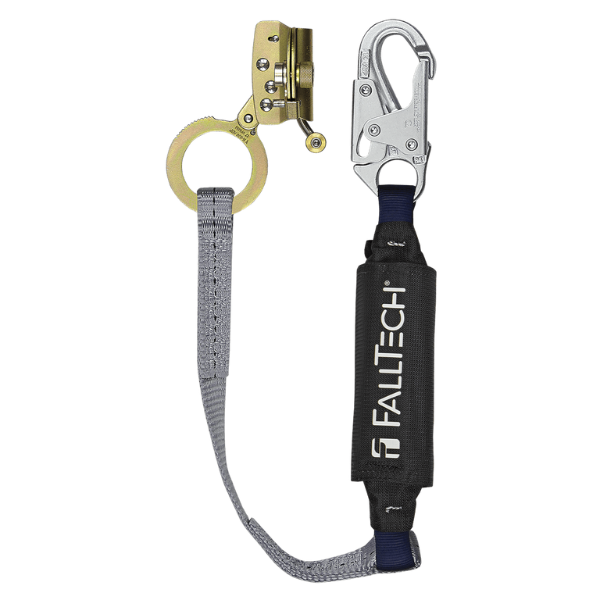

This device combines a hinged trailing fall arrester with anti-panic functionality and a 3-foot energy absorbing lanyard inside a ViewPack® cover for easy inspection. It attaches to a 5/8″ synthetic rope lifeline and provides the user mobility in ascending or descending applications while maintaining fall protection. The alloy steel components include both the arrester and the snap hook for harness connection, and the stitched polyester webbing and tear-away absorber are designed to meet rigorous safety standards.
Key features:
-
Anti-panic function offers enhanced safety for vertical rope attachment
-
Hinged design allows installation at any point on the lifeline
-
Integrated ViewPack® energy absorber with inspection window for easy visual inspection
-
Includes alloy steel fall arrester for lifeline connection and snap hook for harness attachment
Specifications
- SKU: 8388
-
Webbing: polyester webbing; minimum 5,000 lb static strength
-
Energy absorber: polyester tear-away
-
Fall arrester: 5/8″ fall arrester/grab; plated alloy steel; minimum 5,000 lb static strength
-
Connector: plated alloy steel; minimum 5,000 lb static strength with 3,600 lb gate strength
-
Static strength: minimum 1,800 lb
-
ANSI Lanyard Class: 6′ free fall
-
Maximum arrest distance: 11′
-
Average arrest force: 900 lb
-
Maximum arrest force: 1,800 lb
-
ANSI user capacity: 130 to 310 lb maximum
-
OSHA user capacity: 130 to 310 lb maximum
-
For use with: 5/8″ diameter synthetic rope lifelines
-
Compliance: ANSI Z359.15-2014, CSA Z259.2.5-2017, OSHA 1926.502 / 1910.66
FAQs
Q: What does the anti-panic function do on this arrester?
A: It locks the trailing device quickly in the event of rapid climbing or uncontrolled descent, helping prevent user panic and uncontrolled free fall.
Q: Can the device be attached at any point on the lifeline?
A: Yes — the hinged design allows installation at any point on a compatible 5/8″ synthetic rope lifeline while the user ascends or descends.
Q: What inspection feature is included for the energy absorber?
A: The ViewPack® cover provides an inspection window, enabling visual verification of the absorber condition without disassembly.
Q: How does the trailing mechanism support mobility during ascent or descent?
A: The trailing design allows the device to follow the user smoothly in both directions with minimal drag, helping maintain tie-off while moving.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
