FallTech 8' FT-X™ - EdgeCore™ Class 2 Leading Edge Personal SRL-P Single-Leg

The FallTech FT-X EdgeCore 8-ft Class 2 Single-Leg Leading Edge SRL-P series provides high-performance fall-protection for demanding edge-exposed applications. Each model uses a lightweight EdgeCore™ synthetic lifeline made from Kevlar® cables in a UV-resistant composite jacket, offers compact ergonomics for better mobility, and supports below-D-ring tie-off up to five feet plus leading edge exposures on steel or precast concrete. The series is rated for workers up to 420 lb including tools, gear and apparel, and complies with ANSI Z359.14-2021 Class 2 SRL-P.

Key features:

• Single-leg configuration with 8-ft lifeline length designed for leading edge use
• EdgeCore™ synthetic lifeline with Kevlar® core and UV-resistant composite jacket, weighing ~40% less than 3/16” galvanized cable
• Compact high-ride housing design to keep the unit elevated on the user’s back for better comfort and mobility
• Connector/hook options to match anchorage requirements: mini rebar hook (SP0), snap hook (SP1), rebar hook (SP3)

• SKU: 84108SP0, 84108SP1, 84108SP3
• Product type: FT-X EdgeCore 8 ft Class 2 Leading Edge Personal SRL-P, Single-Leg
• Lifeline length: 8 ft
• Lifeline material: EdgeCore™ synthetic lifeline (Kevlar® cables in UV-resistant jacket)
• Static strength: 3,600 lb minimum
• Average arrest force: 1,350 lb maximum
• Maximum arrest force: 1,800 lb maximum
• Maximum arrest distance: 42 in
• ANSI user capacity: 130 to 310 lb (typical)
• OSHA user capacity: up to 420 lb including apparel, tools and gear
• Standards compliance: ANSI Z359.14-2021 (Class 2 SRL-P), OSHA 1926.502 and 1910.66
• Connector types:

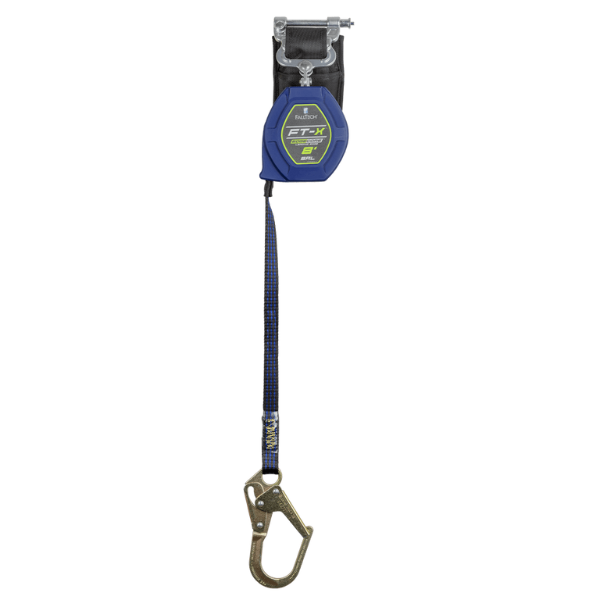

  • 84108SP0: steel swivel mini rebar hook
  • 84108SP1: steel swivel snap hook

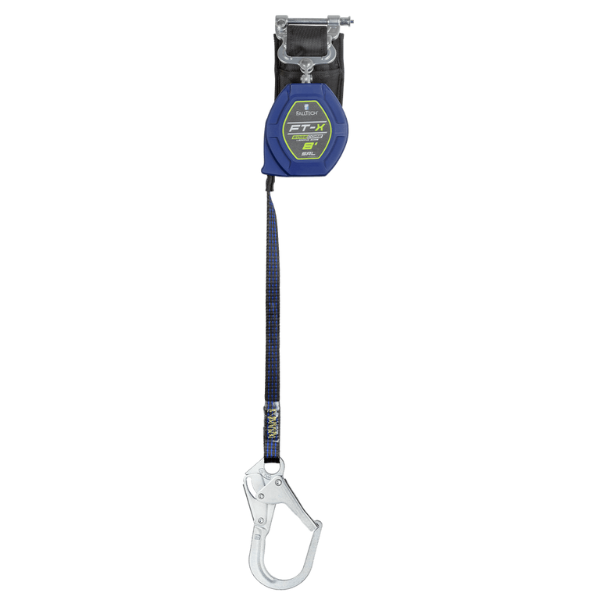

  • 84108SP3: steel swivel rebar hook
• Application context: Single-leg SRL-P rated for leading edge hazards and tie-off below dorsal D-ring up to five feet on steel or precast concrete structures

Q: What is the difference among the three models 84108SP0, 84108SP1 and 84108SP3?
A: The only difference is the type of connector on the lifeline. The 84108SP0 uses a steel swivel mini rebar hook, the 84108SP1 uses a steel swivel snap hook, and the 84108SP3 uses a steel swivel rebar hook.

Q: Are the 8 ft FT-X EdgeCore single-leg SRLs rated for leading edge work?
A: Yes. All three models in this series are Class 2 SRL-P units specifically rated for leading edge hazards and approved for below-D-ring tie-off up to five feet.

Q: What lifeline material do these SRLs use?
A: They use the EdgeCore synthetic lifeline, which features a Kevlar cable core with a UV-resistant composite outer jacket for reduced weight and increased durability.

Q: What weight range can these SRLs support?
A: They support ANSI capacity from 130 to 310 lb and OSHA capacity up to 420 lb including tools, gear and clothing
